A3, CIS, 600 dpi, RGB LED, 500 sheets, RJ-45, USB 3.1
Key Features
- Ultra-fast scanner - Up to 220 images per minute
- Highly efficient - 50,000 Scans per day
- Durable - Robust design
- Network connectivity - connect directly to the network via a wired LAN connection

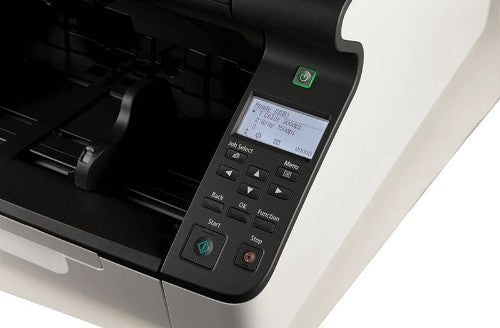

- Capture on touch - Powerful touch with easy operation
- Easy connectivity and integration - ISIS/TWAIN/WIA and KOFAX VRS Drivers enable integration into various scanning applications

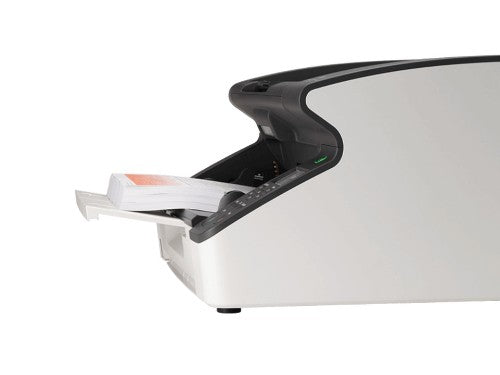

- Reliable and versatile feeding - Scan mixed documents together with pages being reliably fed into the scanner
- Energy Efficient - Consume low energy while scanning
- Superior Image quality - Enhanced image processing with Active Thresholding
Description
Fast and durable A3 production scannerOptimised for customers who demand exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner is robust, simple to use and performs quietly
ProductivityUltra-efficient scanner delivers up to 220 images per minute
Image qualityAdvanced image-processing tools deliver consistently crisp, clear, high-quality images
ReliableRobust, durable paper feed and transport rollers – delivers up to 30,000 scans per day
Specifications
| Scanning |
|---|
| Maximum scan size |
12 x 17" (305 x 432 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| ADF scan speed (b/w, A3) |
120 ppm |
| ADF scan speed (colour, A3) |
120 ppm |
| Duplex ADF scan speed (b/w, A4) |
240 ipm |
| Duplex ADF scan speed (colour, A4) |
240 ipm |
| Sensor type |
CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
50000 pages |
| Design |
|---|
| Built-in display |
Yes |
| Scanner type |
Sheet-fed scanner |
| Product colour |
Black, White |
| Performance |
|---|
| Sensor type |
CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
50000 pages |
| Scan drivers |
ISIS, Kofax VRS, TWAIN, WIA |
| Scanning noise level |
54 dB |
| Input capacity |
|---|
| Standard input capacity |
500 sheets |
| Paper handling |
|---|
| Maximum scan length |
220.1" (5.59 m) |
| Maximum ISO A-series paper size |
A3 |
| Auto Document Feeder (ADF) media weight |
20 - 209 g/m² |
| Long-paper mode |
Yes |
| Ports & interfaces |
|---|
| Standard interfaces |
RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) |
| USB port |
Yes |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Software |
|---|
| Scan drivers |
ISIS, Kofax VRS, TWAIN, WIA |
| Sound emission |
|---|
| Scanning noise level |
54 dB |
| Power |
|---|
| Power consumption (typical) |
66.5 W |
| Input voltage |
220 - 240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
3.5 W |
| AC input frequency |
50 - 60 Hz |
| Network |
|---|
| Ethernet LAN |
Yes |
| Technical details |
|---|
| Scanner type |
Sheet-fed scanner |
| Product colour |
Black, White |
| Sustainability certificates |
EPEAT Gold |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
50 - 95 °F |
| Weight & dimensions |
|---|
| Width |
18.9" (480 mm) |
| Depth |
22.4" (569 mm) |
| Height |
12.4" (315 mm) |
| Weight |
55.1 lbs (25 kg) |
| Other features |
|---|
| Ethernet LAN |
Yes |
| Scanner type |
Sheet-fed scanner |
