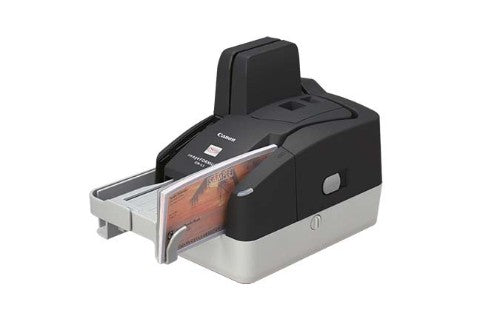

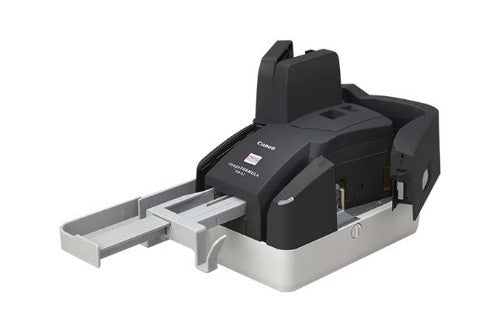

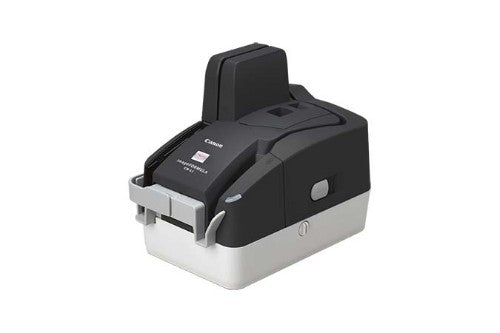

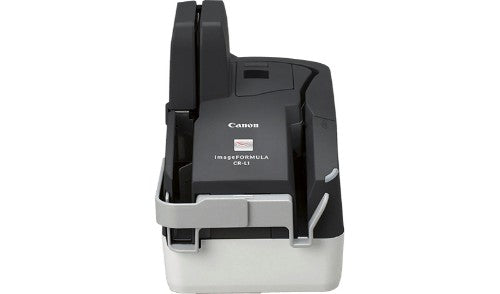

Canon imageFORMULA CR-L1, 4.25 x 8.98" (108 x 228 mm), 300 x 300 DPI, 24 bit, Black, Gray, CMOS CIS, 3000 pages
Description
Canon imageFORMULA CR-L1. Maximum scan size: 4.25 x 8.98" (108 x 228 mm), Optical scanning resolution: 300 x 300 DPI, Output color depth: 24 bit. Product color: Black, Gray. Sensor type: CMOS CIS, Daily duty cycle (max): 3000 pages, Light source: RGB LED. Auto document feeder (ADF) input capacity: 50 sheets. Media thickness (min): 0.00315" (0.0800 mm), Card thickness (max): 0.00787" (0.2 mm), Auto Document Feeder (ADF) media weight: 64 - 157 g/m²
Specifications
| Scanning |
|---|
| Maximum scan size |
4.25 x 8.98" (108 x 228 mm) |
| Optical scanning resolution |
300 x 300 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Output colour depth |
24 bit |
| Greyscale levels |
256 |
| Sensor type |
CMOS CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
3000 pages |
| Design |
|---|
| Built-in display |
No |
| Product colour |
Black, Gray |
| Performance |
|---|
| Sensor type |
CMOS CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
3000 pages |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
50 sheets |
| Paper handling |
|---|
| Media thickness (min) |
0.00315" (0.0800 mm) |
| Auto Document Feeder (ADF) media weight |
64 - 157 g/m² |
| Long-paper mode |
Yes |
| Card thickness (max) |
0.00787" (0.2 mm) |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 2.0 |
| USB port |
Yes |
| USB version |
2.0 |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Bundled software |
Ranger driver + IQA, Canon Scanning Utility |
| Power |
|---|
| Power consumption (typical) |
15.8 W |
| Input voltage |
220-240 V |
| Power consumption (sleep) |
2.3 W |
| AC input frequency |
50 - 60 Hz |
| Technical details |
|---|
| Media thickness (min) |
0.00315" (0.0800 mm) |
| Product colour |
Black, Gray |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 32.5 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Width |
5.51" (140 mm) |
| Depth |
8.78" (223 mm) |
| Height |
7.4" (188 mm) |
| Weight |
4.63 lbs (2.1 kg) |
| Packaging content |
|---|
| Bundled software |
Ranger driver + IQA, Canon Scanning Utility |
