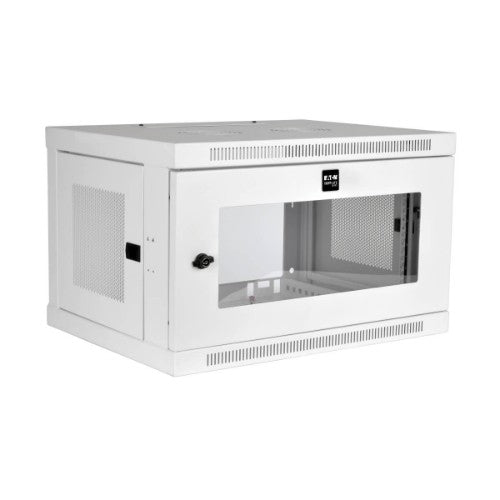

SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, Clear Acrylic Window, White
Key Features
- Maximum load capacity of 200 lb. (90.7 kg)
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Description
The SRW6UWG SmartRack® 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in home and office network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable white powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

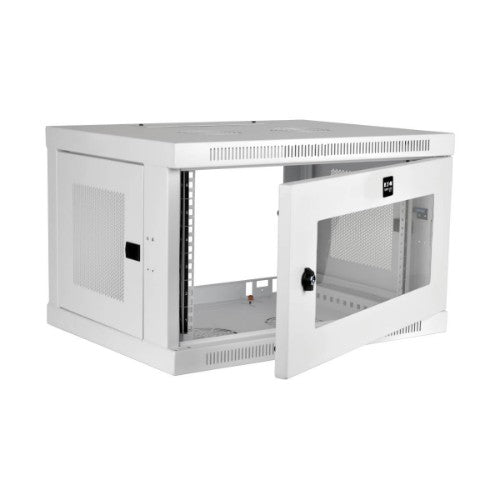

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
To ensure your valuable equipment stays secure, the front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

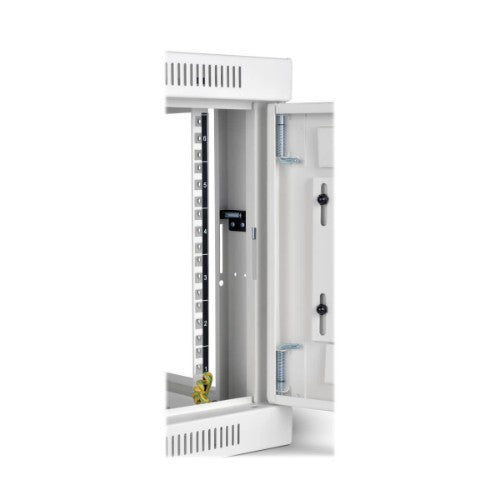

The SRW6UWG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Specifications
| Weight & dimensions |
|---|
| Package depth |
19.9" (505.5 mm) |
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Package weight |
33.1 lbs (15 kg) |
| Width |
23.5" (596.9 mm) |
| Depth |
17.5" (444.5 mm) |
| Height |
14.5" (368.3 mm) |
| Weight |
29.1 lbs (13.2 kg) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Features |
|---|
| Type |
Wall mounted rack |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Product colour |
White |
| Certification |
UL/CSA 60950-1, EIA-310-E, RoHS |
| Packaging data |
|---|
| Package depth |
19.9" (505.5 mm) |
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Package weight |
33.1 lbs (15 kg) |
| Technical details |
|---|
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Type |
Wall mounted rack |
| Harmonized System (HS) code |
8517.79.0000 |
| Colour |
|---|
| Product colour |
White |
| Certificates |
|---|
| Certification |
UL/CSA 60950-1, EIA-310-E, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
25.8" (655.3 mm) |
| Master (outer) case length |
19.9" (505.5 mm) |
| Master (outer) case height |
17.3" (439.4 mm) |
| Master (outer) case gross weight |
33.1 lbs (15 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
