StarTech.com ST121UTP, 1440 x 900 pixels, AV transmitter & receiver, 5905.5" (150 m), Wired, Black
Key Features

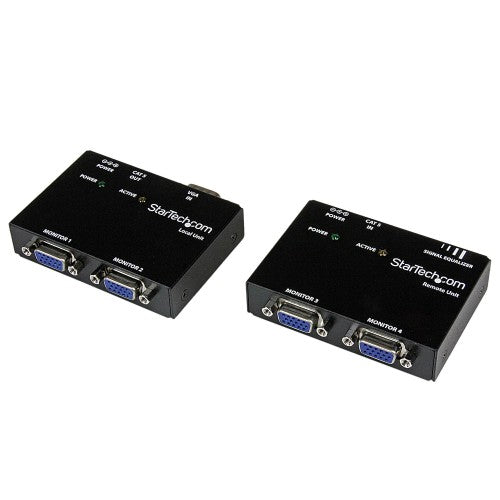

- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends video cables by up to 500 ft. (150m)
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission

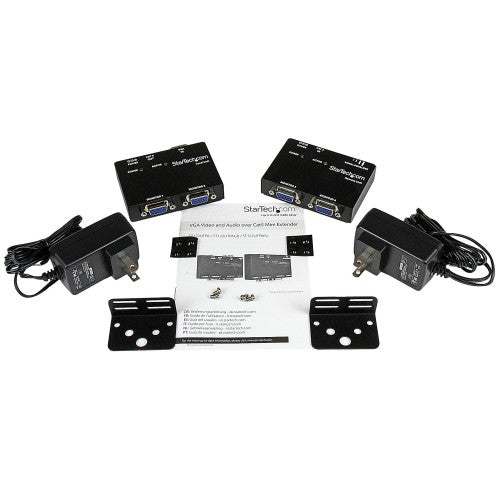

- Included mounting brackets
Description
StarTech.com ST121UTP. Type: AV transmitter & receiver, Maximum resolution: 1440 x 900 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Operating voltage: 9 V, Output current: 0.6 A, Power consumption (typical): 5.4 W. Width: 3.27" (83 mm), Depth: 2.36" (60 mm), Height: 0.787" (20 mm). Package width: 3.58" (91 mm), Package depth: 9.45" (240 mm), Package height: 7.32" (186 mm)
Specifications
| Features |
|---|
| Material |
Aluminum |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1440 x 900 pixels |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
5905.5" (150 m) |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+) |
| Product colour |
Black |
| Rubber feet |
Yes |
| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| VGA (D-Sub) input ports |
1 |
| VGA (D-Sub) output ports |
4 |
| Connectivity technology |
Wired |
| Power |
|---|
| Output current |
0.6 A |
| Power plug type |
Type M |
| Power consumption (typical) |
5.4 W |
| Operating voltage |
9 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Width |
3.27" (83 mm) |
| Height |
0.787" (20 mm) |
| Depth |
2.36" (60 mm) |
| Weight |
11.8 oz (335 g) |
| Packaging data |
|---|
| Package depth |
9.45" (240 mm) |
| Package width |
3.58" (91 mm) |
| Package height |
7.32" (186 mm) |
| Package weight |
28.2 oz (800 g) |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| AC adapter included |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE |
