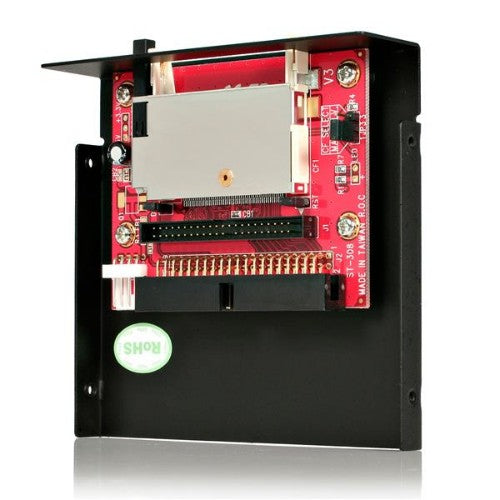

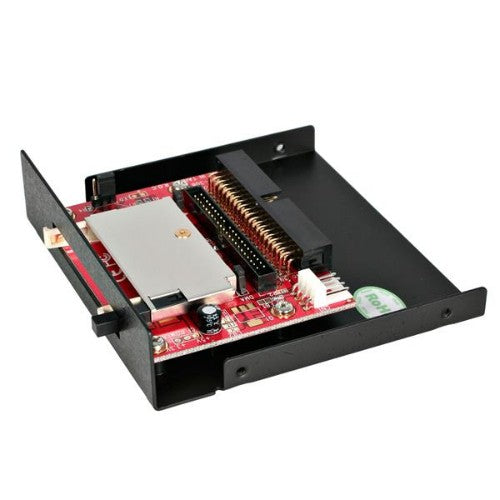

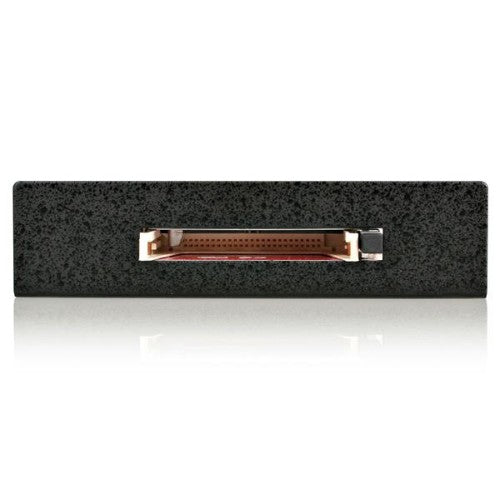

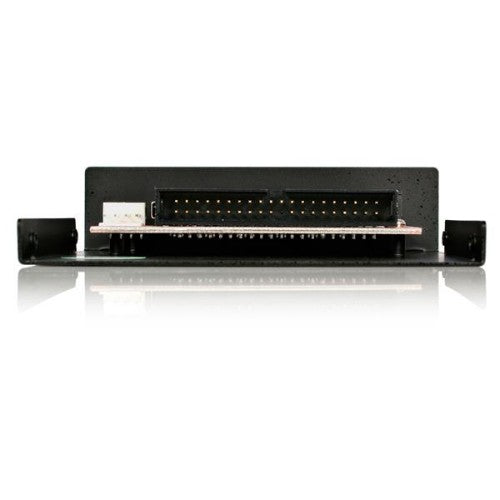

3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader
Description
Connect a CF card to a computer through an IDE connector
This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com''s 2-year warranty.
The StarTech.com Advantage
- Quick and driver free installation into any IDE 40 pin and 44 pin slot
- Easily swap cards in and out with built-in push button ejector
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Output interface |
CF |
| Host interface |
IDE |
| Technical details |
|---|
| Data transfer rate (max) |
0.133 Gbit/s |
| Compliance certificates |
RoHS |
| Performance |
|---|
| Data transfer rate (max) |
0.133 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| Internal |
Yes |
| Features |
|---|
| Data transfer rate (max) |
0.133 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-55 - 85 °C |
| Storage temperature (T-T) |
-55 - 85 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
|---|
| Width |
3.82" (97 mm) |
| Depth |
3.94" (100 mm) |
| Height |
0.984" (25 mm) |
| Weight |
5.11 oz (145 g) |
| Package width |
1.89" (48 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
6.22" (158 mm) |
| Package weight |
7.58 oz (215 g) |
| Packaging data |
|---|
| Package width |
1.89" (48 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
6.22" (158 mm) |
| Package weight |
7.58 oz (215 g) |
| User guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Packaging content |
|---|
| User guide |
Yes |
