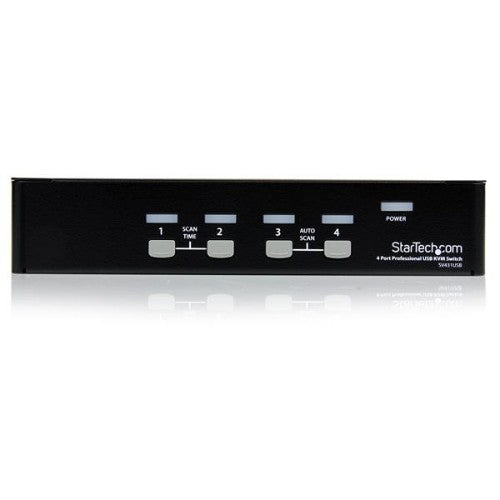

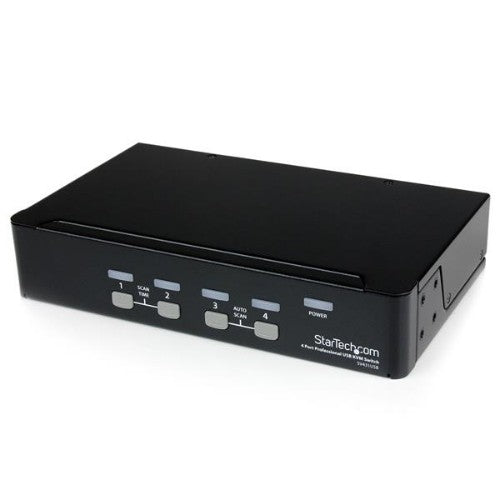

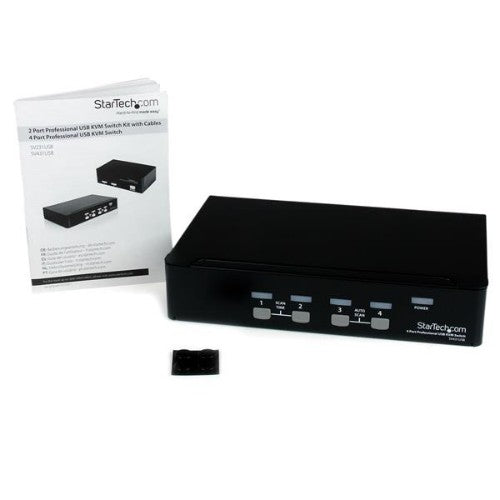

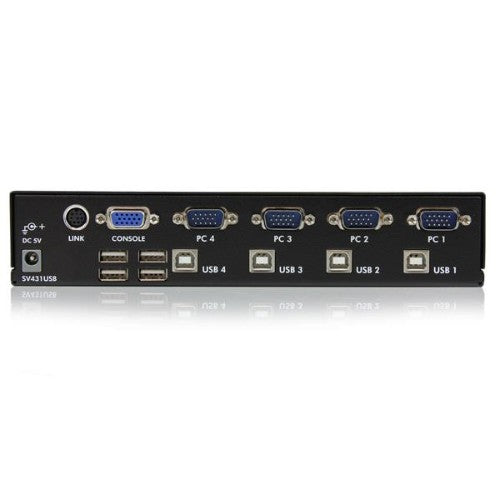

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub
Description
Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
USB A, VGA (D-Sub) |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Audio connections |
No |
| DC-in jack |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| Maximum resolution |
1920 x 1440 pixels |
| Scan interval |
3,8,15,30 s |
| Number of users |
1 user(s) |
| Maximum cable length |
196.9" (5 m) |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Scan interval |
3,8,15,30 s |
| On Screen Display (OSD) |
No |
| Number of users |
1 user(s) |
| Hot keys |
No |
| IP control |
No |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
82506 h |
| Maximum cable length |
196.9" (5 m) |
| Product colour |
Black |
| Rack mounting |
Yes |
| Hot keys |
No |
| Certification |
CE, FCC, REACH, TAA, cUR |
| Rack capacity |
1U |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.4 A |
| Output current |
2 A |
| Power plug type |
Type N |
| Output voltage |
5 V |
| Input voltage |
110-240 V |
| Video |
|---|
| Maximum resolution |
1920 x 1440 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
5.12" (130 mm) |
| Depth |
8.66" (220 mm) |
| Height |
1.73" (44 mm) |
| Weight |
34.9 oz (988 g) |
| Package width |
7.72" (196 mm) |
| Package depth |
11.6" (295 mm) |
| Package height |
2.83" (72 mm) |
| Package weight |
2.87 lbs (1.3 kg) |
| Packaging data |
|---|
| Package width |
7.72" (196 mm) |
| Package depth |
11.6" (295 mm) |
| Package height |
2.83" (72 mm) |
| Package weight |
2.87 lbs (1.3 kg) |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, REACH, TAA, cUR |
| Other features |
|---|
| IP control |
No |
| Hot keys |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
