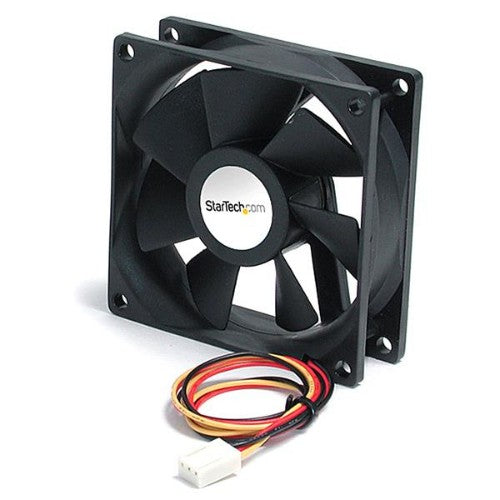

StarTech.com 92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 90mm Fan
Description
Add additional chassis cooling with a 92mm ball bearing fan
This quiet, dual ball-bearing (9.25cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC. Powered through a simple TX3 connection to the host computer power supply, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- A built-in tachometer allows for easy monitoring of the fan performance
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Performance |
|---|
| Suitable location |
Computer case |
| Rotational speed (max) |
1800 RPM |
| Noise level (high speed) |
22 dB |
| Type |
Fan |
| Operating temperature (T-T) |
-10 - 80 °C |
| Fan diameter |
3.62" (9.2 cm) |
| Maximum airflow |
31.84 cfm |
| Number of fans |
1 fan(s) |
| Mean time between failures (MTBF) |
50000 h |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Material |
Plastic |
| Product colour |
Black |
| Technical details |
|---|
| Noise level (high speed) |
22 dB |
| Type |
Fan |
| Fan diameter |
3.62" (9.2 cm) |
| Maximum airflow |
31.84 cfm |
| Number of fans |
1 fan(s) |
| Material |
Plastic |
| Connector(s) |
1 - TX3 Female |
| Airflow |
35.7 |
| Bearing technology |
Ball bearing |
| Compliance certificates |
RoHS |
| Power |
|---|
| Voltage |
12 V |
| Power consumption (typical) |
1.08 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 80 °C |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Package depth |
5.67" (144 mm) |
| Package width |
3.86" (98 mm) |
| Package height |
1.34" (34 mm) |
| Width |
0.984" (25 mm) |
| Package weight |
3.46 oz (98 g) |
| Depth |
3.62" (92 mm) |
| Height |
3.62" (92 mm) |
| Weight |
3.81 oz (108 g) |
| Endurance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Packaging data |
|---|
| Package depth |
5.67" (144 mm) |
| Package width |
3.86" (98 mm) |
| Package height |
1.34" (34 mm) |
| Package weight |
3.46 oz (98 g) |
| Other features |
|---|
| Rotational speed |
1600 RPM |
| Dimensions (WxDxH) |
3.62 x 3.62 x 0.984" (92 x 92 x 25 mm) |
| Connector(s) |
1 - TX3 Female |
| Bearing technology |
Ball bearing |
| Airflow |
35.7 |
| Harmonized System (HS) code |
84733080 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
