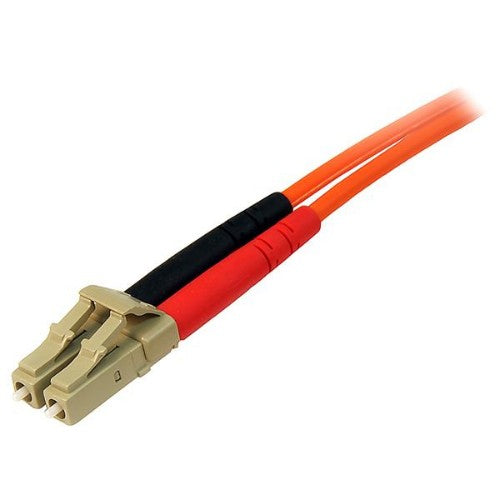

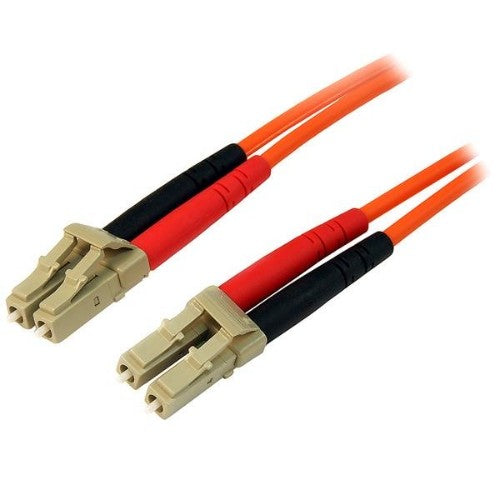

StarTech.com 1m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC
Description
The 50FIBLCLC1 1m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
The StarTech.com Advantage- LSZH-rated cable, suitable for installations under restrictive building codes
- High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks
- Resistant to pulls, strains, and impacts during your cable installations and maintenance
Specifications
| Features |
|---|
| Fibre optic type |
OM2 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Data transfer rate |
10 Gbit/s |
| Product colour |
Orange |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certification |
CE |
| Harmonized System (HS) code |
85447000 |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Certificates |
|---|
| Certification |
CE |
| Compliance certificates |
REACH, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
0.67 oz (19 g) |
| Cable length |
39.4" (1 m) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.472" (12 mm) |
| Package weight |
0.988 oz (28 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.472" (12 mm) |
| Package weight |
0.988 oz (28 g) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Doesn't contain |
Halogen |
| Compliance certificates |
REACH, RoHS |
| Data transmission |
|---|
| Data transfer rate |
10 Gbit/s |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
