Description
Key Features
- Attenuation loss meets or exceeds industry standards
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Immune to electrical interference
Description

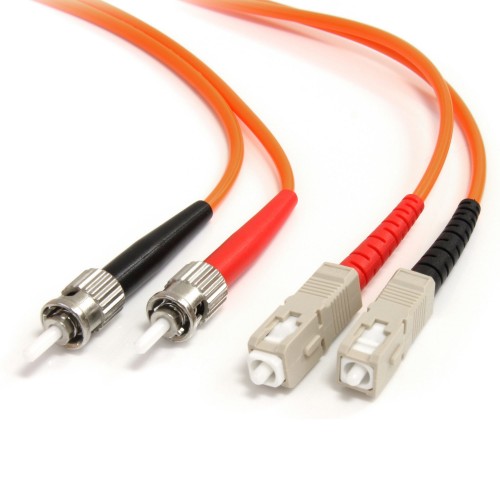

Connect fiber network devices for high-speed transfers with LSZH rated cableThe FIBSTSC1, 1-meter (3.3ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one ST (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This ST-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our ST-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | ST |
| Connector 2 | SC |
| Cable length | 39.4" (1 m) |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 8.5" (216 mm) |
| Package depth | 7.87" (200 mm) |
| Package height | 0.236" (6 mm) |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | ST |
| Connector 2 | SC |
| Cable length | 39.4" (1 m) |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS, CE |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 39.4" (1 m) |
| Package width | 8.5" (216 mm) |
| Package depth | 7.87" (200 mm) |
| Package height | 0.236" (6 mm) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 13.4" (340 mm) |
| Master (outer) case length | 18.9" (480 mm) |
| Master (outer) case height | 12.5" (317 mm) |
| Products per master (outer) case | 160 pc(s) |
| Harmonized System (HS) code | 85447000 |
