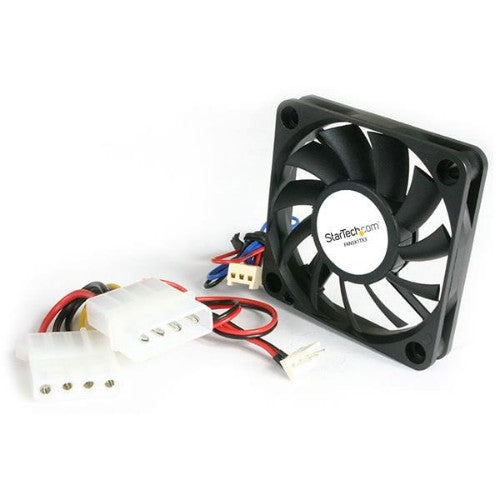

StarTech.com 50x10mm Replacement Ball Bearing Computer Case Fan TX3/LP4 Connector - 3 pin case Fan - TX3 Fan - 50mm Fan
Description
Add additional chassis cooling with a 50mm ball bearing fan
This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The StarTech.com Advantage
- Exhausts hot air out of a PC, increasing dependability and extending component lifetime
- Cools your PC, increasing dependability and extending component lifetime

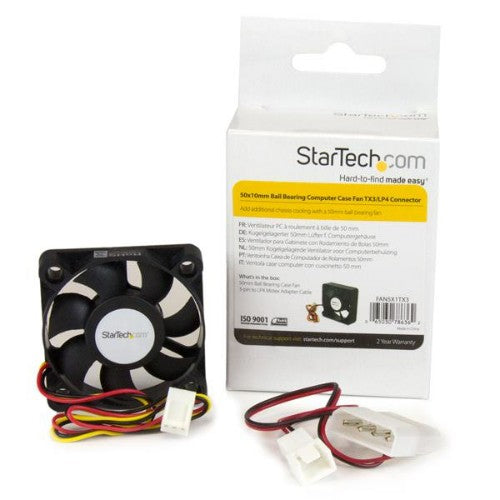

- Comes complete with a TX3 to LP4 adapter
Specifications
| Performance |
|---|
| Suitable location |
Computer case |
| Fan connector |
3-pin |
| Rotational speed (max) |
4500 RPM |
| Bearing type |
Ball bearing |
| Noise level (high speed) |
23 dB |
| Type |
Fan |
| Operating temperature (T-T) |
-10 - 80 °C |
| Fan diameter |
1.97" (5 cm) |
| Maximum airflow |
8.63 cfm |
| Number of fans |
1 fan(s) |
| Mean time between failures (MTBF) |
50000 h |
| Design |
|---|
| Fan connector |
3-pin |
| Number of fans |
1 fan(s) |
| Material |
Plastic |
| Product colour |
Black |
| Certification |
CE, UR, UL, REACH |
| Technical details |
|---|
| Noise level (high speed) |
23 dB |
| Type |
Fan |
| Fan diameter |
1.97" (5 cm) |
| Maximum airflow |
8.63 cfm |
| Number of fans |
1 fan(s) |
| Material |
Plastic |
| Fan connector |
3-pin |
| Compliance certificates |
RoHS |
| Ports & interfaces |
|---|
| Fan connector |
3-pin |
| Power |
|---|
| Voltage |
12 V |
| Rated current |
0.09 A |
| Power consumption (typical) |
1.08 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 80 °C |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Package depth |
4.53" (115 mm) |
| Package width |
2.6" (66 mm) |
| Package height |
1.3" (33 mm) |
| Width |
0.394" (10 mm) |
| Package weight |
1.45 oz (41 g) |
| Depth |
1.97" (50 mm) |
| Height |
1.97" (50 mm) |
| Weight |
0.67 oz (19 g) |
| Endurance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Packaging data |
|---|
| Package depth |
4.53" (115 mm) |
| Package width |
2.6" (66 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.45 oz (41 g) |
| Certificates |
|---|
| Certification |
CE, UR, UL, REACH |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
