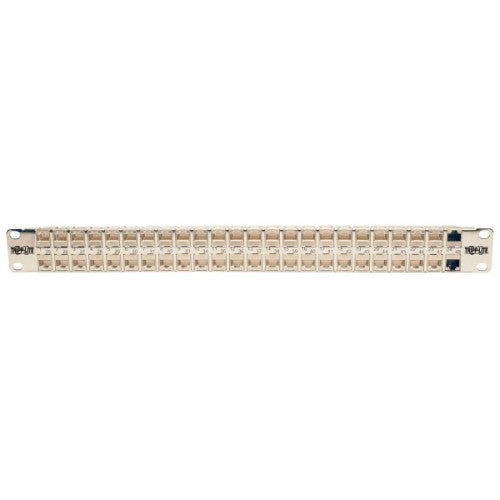

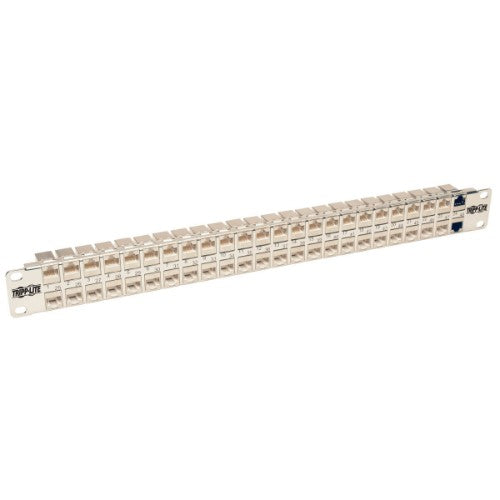

48-Port 1U Rack-Mount STP Shielded Cat6a Feedthrough Patch Panel, RJ45 Ethernet, TAA
Key Features
- Meets or exceeds Cat6a specifications
- 48 shielded RJ45 coupler jacks on both sides

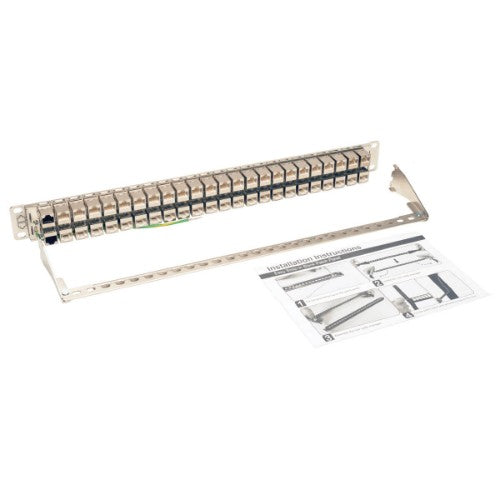

- Cable management bar keeps patch cables organized
- Rated for 10 Gbps Ethernet data transfer speeds
- Mounts into 1U of EIA-standard 19 in. racks
- Qualified to IEEE 802.3bt Type 4 PoE for up to 100W of power delivery
Description

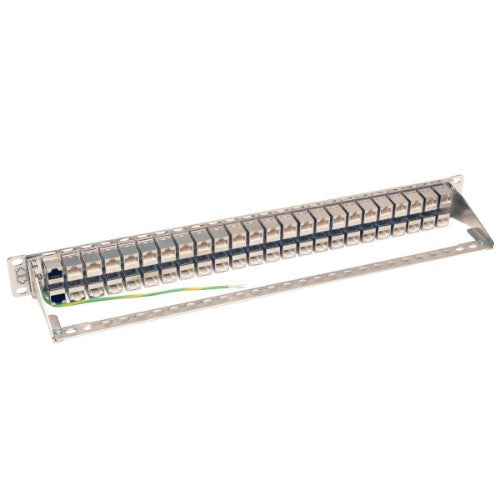

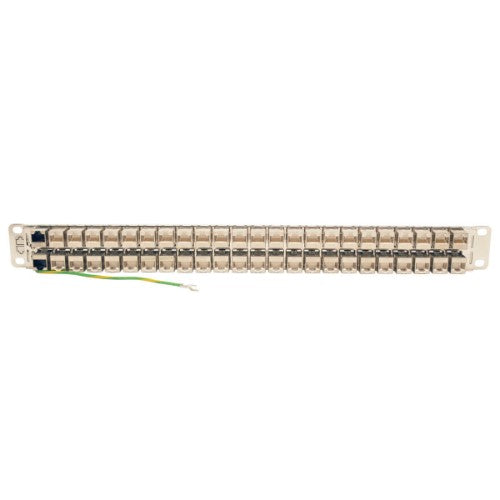

The N254-048-SH-6A 48-Port 1U Rack-Mount STP Shielded Cat6a Feedthrough Patch Panel meets or exceeds Cat6a specifications and works with USOC, T568A and T568B wiring to comply with industry standards. Fully rated for 10 Gbps Ethernet data transfer speeds, this low-profile patch panel manages and organizes the cabling in your high-density network. No 110 punchdown termination is required. Just plug your Cat6a cables into the 48 fully shielded RJ45 coupler jacks on both sides of the panel. The detachable cable management bar keeps patch cables neat, tidy and efficiently organized on the back of the panel. Ports are clearly numbered and labeled to help you identify connections. Mounts easily into 1U of an EIA-standard 19-inch rack. Grounding wire included. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
IEC 60512-99-001 Compliant
PoE Certificate Number: 2018-773
STP Cat6a Patch Cord (Requires PoE cable if used in PoE setting)
Specifications
| Network |
|---|
| Ethernet interface type |
10 Gigabit Ethernet |
| Cable types supported |
Cat6a |
| Ports quantity |
48 |
| Connector(s) |
RJ-45 |
| Design |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Silver, White |
| Certification |
TAA |
| Certificates |
|---|
| Certification |
TAA |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
19" (482.6 mm) |
| Weight |
22.6 oz (640 g) |
| Height |
1.7" (43.2 mm) |
| Depth |
1.25" (31.8 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Package width |
2.91" (73.9 mm) |
| Package height |
19.7" (500.1 mm) |
| Packaging data |
|---|
| Package weight |
2.2 lbs (1 kg) |
| Package depth |
2.76" (70.1 mm) |
| Package width |
2.91" (73.9 mm) |
| Package height |
19.7" (500.1 mm) |
| Features |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Silver, White |
| Certification |
TAA |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Package width |
2.91" (73.9 mm) |
| Package height |
19.7" (500.1 mm) |
| Harmonized System (HS) code |
85371098 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Silver, White |
| Logistics data |
|---|
| Master (outer) case gross weight |
26.5 lbs (12 kg) |
| Products per master (outer) case |
12 pc(s) |
| Master (outer) case width |
12" (305.1 mm) |
| Master (outer) case length |
10.6" (270 mm) |
| Master (outer) case height |
20.9" (530.1 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332189995 |
| Country of origin |
Taiwan |
| Harmonized System (HS) code |
85371098 |
