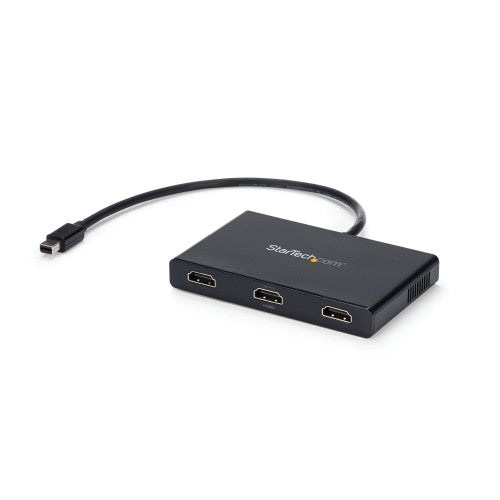

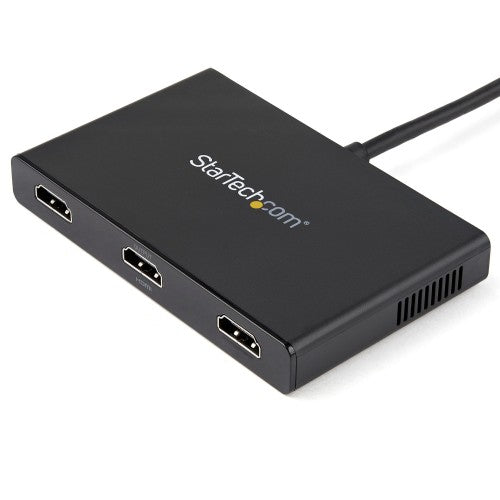

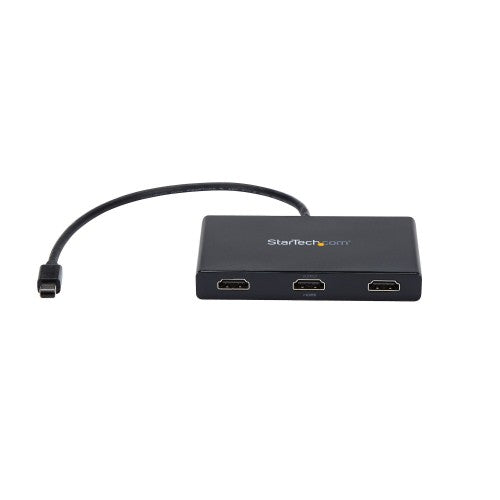

StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI (MSTMDP123HD)
Key Features
- MULTI MONITOR ADAPTER FOR WINDOWS: Triple Mini DisplayPort to HDMI MST hub drives up to 3x HDMI monitors in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops / Not compatible with macOS
- DISPLAY RESOLUTION: Multiple monitor Mini DP to HDMI MST hub supports HD resolutions up to 3x 1080p 60Hz on three monitors, or dual 4K 30Hz on two monitors, or can support three ultrawide displays up to 2560x1080 60Hz
- COMPATIBILITY: 3-Port mDP to HDMI MST video splitter works with laptops, computers or desktop graphics cards / Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards
- INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office / MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
- EASY TO USE: Triple monitor adapter natively supports 3x HDMI screens; Works with Windows only and provides an easy driverless setup
- CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 7.5"" (19m) cable for video (Mini DisplayPort) and an AC power adapter / Supports LPCM digital audio
- GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
Description
Use this adapter to connect three independent displays to a single mDP 1.2 port
This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

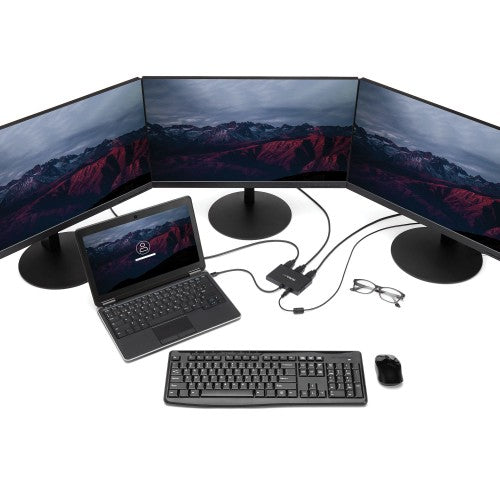

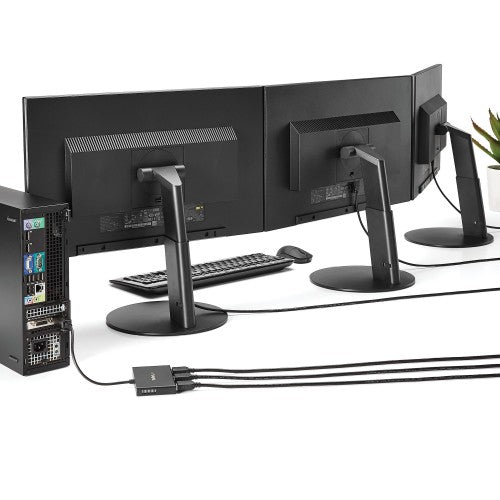

Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
3 |
| Video port type |
Mini DisplayPort |
| Video out |
3x HDMI |
| Features |
|---|
| Housing material |
Plastic |
| Maximum refresh rate |
30 Hz |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| Supported video modes |
1080p, 720p |
| Plug and Play |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| HD type |
4K Ultra HD |
| Power |
|---|
| Input current |
0.5 A |
| Output current |
3 A |
| Power consumption (typical) |
15 W |
| Output voltage |
5 V |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Weight |
4.23 oz (120 g) |
| Width |
2.6" (66 mm) |
| Depth |
4.49" (114 mm) |
| Height |
0.551" (14 mm) |
| Package weight |
18.1 oz (514 g) |
| Package depth |
9.45" (240 mm) |
| Package width |
5.94" (151 mm) |
| Package height |
2.48" (63 mm) |
| Packaging data |
|---|
| Package weight |
18.1 oz (514 g) |
| Package depth |
9.45" (240 mm) |
| Package width |
5.94" (151 mm) |
| Package height |
2.48" (63 mm) |

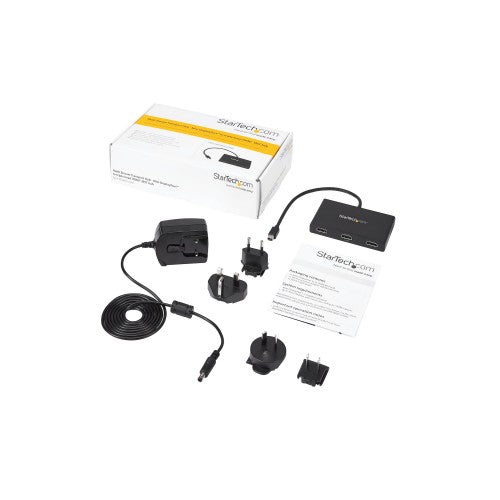

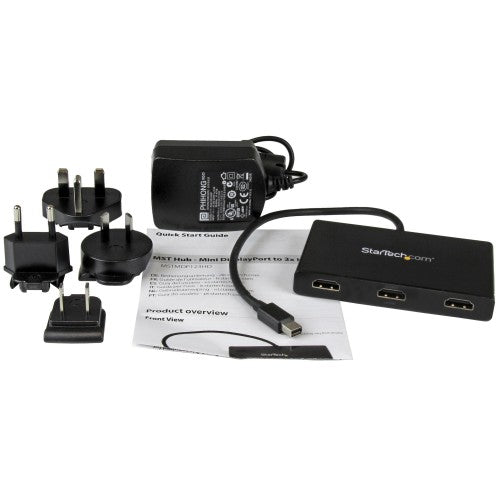

| Packaging content |
|---|
| AC adapter included |
Yes |
| Included power plug types |
AU, EU, NA, UK |
| Manual |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Video |
|---|
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| Supported video modes |
1080p, 720p |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Technical details |
|---|
| Housing material |
Plastic |
| Package width |
5.94" (151 mm) |
| Package height |
2.48" (63 mm) |
| Video out |
3x HDMI |
| Plug and Play |
Yes |
| Compliance certificates |
RoHS |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Logistics data |
|---|
| Master (outer) case width |
13.2" (335 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.66" (220 mm) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
