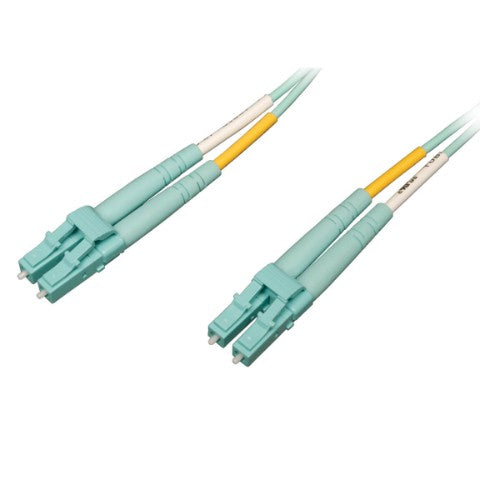

100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC), Aqua, 15 m
Key Features
- 40/100 Gb Ethernet speed up to 300 m (@ 850 nm)
- Nearly 10x the bandwidth of conventional 62.5 um multimode fiber
- 50/125 duplex glass fiber construction
- Low-smoke zero-halogen aqua jacket
- Dual male LC connectors meet insertion loss standards
Description
The N820-15M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides ten times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable.
Backward compatible with existing 50/125 fiber, the aqua-colored N820-15M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas.
This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It’s commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
590.6" (15 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Data transfer rate |
100 Gbit/s |
| Product colour |
Turquoise |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Country of origin |
China |
| Harmonized System (HS) code |
85447000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
9" (228.6 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
7" (177.8 mm) |
| Package weight |
4.23 oz (120 g) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
590.6" (15 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Master (outer) case GTIN (EAN/UPC) |
10037332178531 |
| Compliance certificates |
RoHS |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Weight & dimensions |
|---|
| Cable length |
590.6" (15 m) |
| Package width |
9" (228.6 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
7" (177.8 mm) |
| Package weight |
4.23 oz (120 g) |
| Logistics data |
|---|
| Master (outer) case width |
5.9" (149.9 mm) |
| Master (outer) case length |
6.1" (154.9 mm) |
| Master (outer) case height |
14.8" (375.9 mm) |
| Master (outer) case gross weight |
2.82 lbs (1.28 kg) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
85447000 |
| Master (outer) case GTIN (EAN/UPC) |
10037332178531 |
