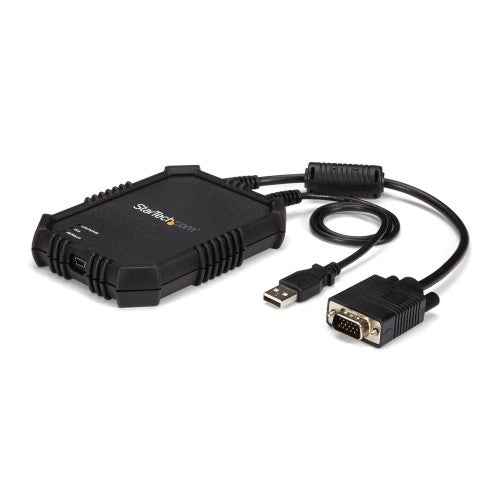

StarTech.com Laptop to Server KVM Console - Rugged USB Crash Cart Adapter with File Transfer and Video Capture (NOTECONS02X)
Key Features

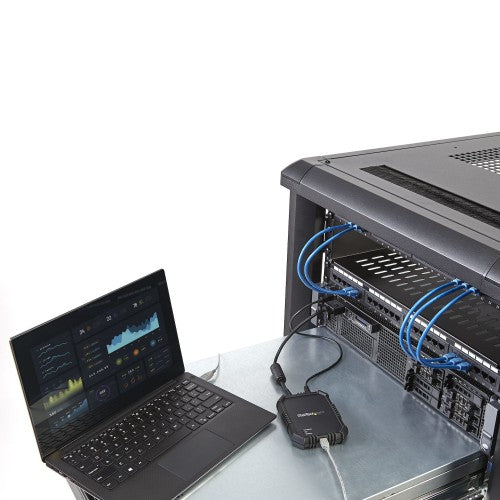

- LAPTOP TO SERVER: USB crash cart adapter connects your laptop to a headless system, turning your laptop into a portable console for accessing rack servers in your server room, PCs, ATMs, kiosks, etc
- EFFICIENT TROUBLESHOOTING: Easily transfer files, capture screenshots, and log activity using the crash cart adapter software; For optimal performance, install the latest drivers making sure to download the drivers specifically for the NOTECONS02X
- BIOS-LEVEL CONTROL: Connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control
- SELF-POWERED: The KVM adapter is powered by the server-side USB connection, reducing strain on the laptop's battery and eliminating the need for an AC outlet, allowing you to connect to any PC or device with a VGA output port and USB connection
- RUGGED HOUSING: To ensure a durable performance, this laptop computer to KVM console features a rubberized housing which absorbs shocks when being dropped; Ideal for applications in your server room or datacenter
Description
Use this USB crash-cart adapter to turn your laptop into a portable KVM console for accessing servers, ATMs and kiosks with file transfer and video capture
This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.
This adapter also supports local file transfer and video capturing built into the software.
Maximum durability

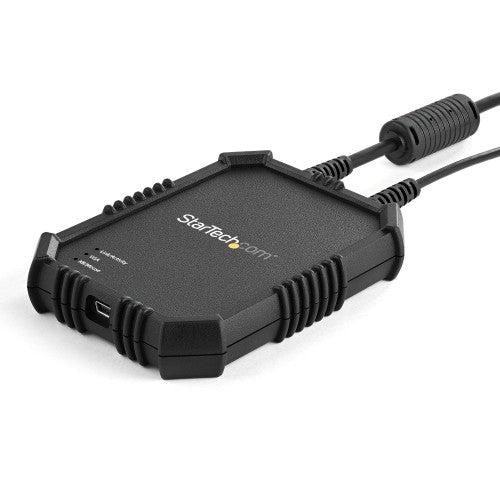

This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you’re equipped for unexpected challenges.
Hassle-free operation
Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.
The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.
Compact portability

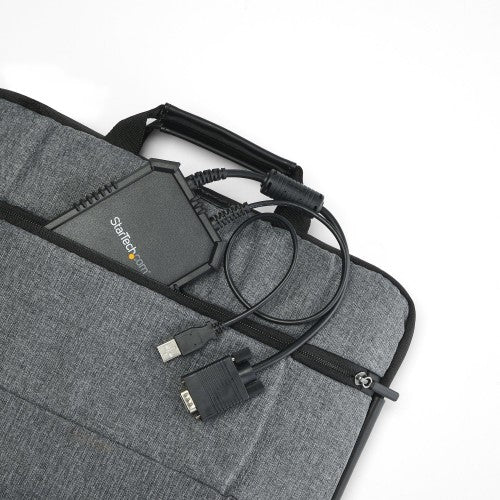

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.
The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.
Universal connectivity
With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.
The NOTECONS02X is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| USB connector type |
Mini-USB B |
| Number of computers controlled |
1 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
1 |
| Performance |
|---|
| Daisy chain |
No |
| HD type |
Full HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| Number of users |
1 user(s) |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Number of users |
1 user(s) |
| LED indicators |
Activity, Link |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| LED indicators |
Activity, Link |
| Certification |
CE, FCC, UL, TAA |
| Housing material |
Plastic |
| Power |
|---|
| Power source |
USB |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Video |
|---|
| HD type |
Full HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
3.46" (88 mm) |
| Depth |
4.53" (115 mm) |
| Height |
0.866" (22 mm) |
| Weight |
8.61 oz (244 g) |
| Package width |
6.5" (165 mm) |
| Package depth |
11.9" (301 mm) |
| Package height |
1.85" (47 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging data |
|---|
| Package width |
6.5" (165 mm) |
| Package depth |
11.9" (301 mm) |
| Package height |
1.85" (47 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging content |
|---|
| Cables included |
USB |
| Quick installation guide |
Yes |
| Software included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, UL, TAA |
| Logistics data |
|---|
| Master (outer) case width |
12.6" (320 mm) |
| Master (outer) case length |
20.5" (520 mm) |
| Master (outer) case height |
20.7" (525 mm) |
| Products per master (outer) case |
30 pc(s) |
| Harmonized System (HS) code |
85176200 |
