4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
Key Features
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch among computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports Displayport 1.1
- Includes all necessary DisplayPort, USB 3.0 and audio cables
Description
Access and Control Up to 4 Computers with One KVM SwitchSwitch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1
Independent Audio Switching3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating SystemsEasy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun

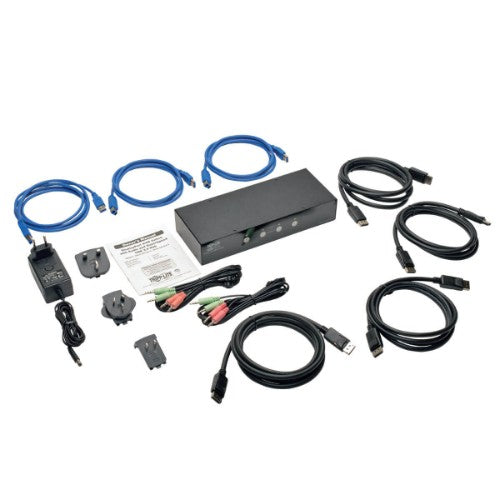

All necessary cables included
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Display connection |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| Number of microphone inputs |
4 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
4 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Cable length |
70.9" (1.8 m) |
| Performance |
|---|
| DDC/DDC2 supported |
Yes |
| Maximum resolution |
2560 x 1600 pixels |
| Number of users |
1 user(s) |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Number of users |
1 user(s) |
| LED indicators |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Display connection |
Yes |
| USB hub |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Rack mounting |
No |
| LED indicators |
Yes |
| Country of origin |
China |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Input current |
0.8 A |
| Output current |
2 A |
| Output voltage |
9 V |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100-240 V |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Video |
|---|
| Maximum resolution |
2560 x 1600 pixels |
| Features |
|---|
| Country of origin |
China |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
8.1" (205.7 mm) |
| Depth |
3.9" (99.1 mm) |
| Height |
1.8" (45.7 mm) |
| Weight |
33.5 oz (950 g) |
| Package width |
6.2" (157.5 mm) |
| Package depth |
10.6" (269.2 mm) |
| Package height |
7.4" (188 mm) |
| Package weight |
5.91 lbs (2.68 kg) |
| Packaging data |
|---|
| Package width |
6.2" (157.5 mm) |
| Package depth |
10.6" (269.2 mm) |
| Package height |
7.4" (188 mm) |
| Package weight |
5.91 lbs (2.68 kg) |
| Packaging content |
|---|
| Cables included |
Audio (3.5mm), DisplayPort, USB |
| Manual |
Yes |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case width |
19.4" (492.8 mm) |
| Master (outer) case length |
21.7" (551.2 mm) |
| Master (outer) case height |
8.5" (215.9 mm) |
| Master (outer) case gross weight |
37.5 lbs (17 kg) |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332188639 |
| Harmonized System (HS) code |
8517.62.0020 |
