StarTech.com USB3DOCKH2DP laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A Black, Silver

StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (USB3DOCKH2DP)

Description

Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

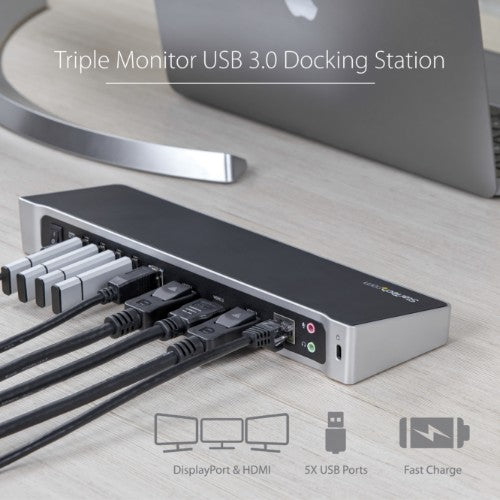

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

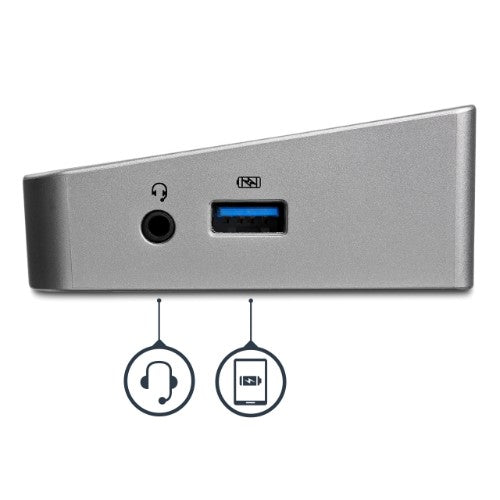

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

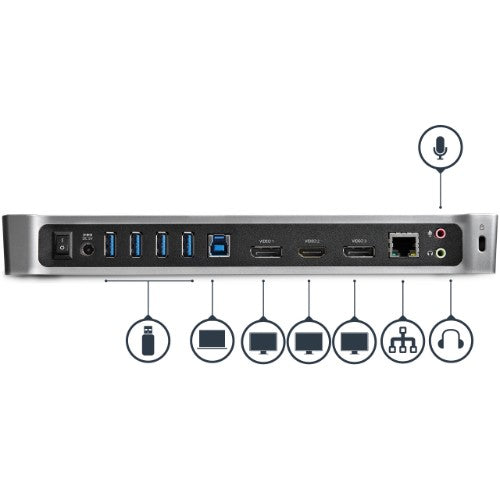

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of microphone inputs	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	2
DC-in jack	Yes
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black, Silver
Card reader integrated	No
Brand compatibility	Any brand
Cable lock slot	Yes
LED indicators	Activity, Link
Data transfer rate	5 Gbit/s
Certification	CE, FCC, DisplayLink, TAA, REACH
Housing material	Plastic
USB data transfer rates	5000 Mbit/s
Technical details
Product colour	Black, Silver
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	5 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	14.3" (363 mm)
Master (outer) case length	14.7" (373 mm)
Master (outer) case height	15.6" (395 mm)
Storage
Card reader integrated	No
Power
Input current	1.5 A
Power plug type	Type N
Compatible power plug types	AU, EU, UK, US
AC input voltage	100-240 V
Power consumption (typical)	32.5 W
Output voltage	5 V
Output current	6.5 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Indication
LED indicators	Activity, Link
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	0 - 90%

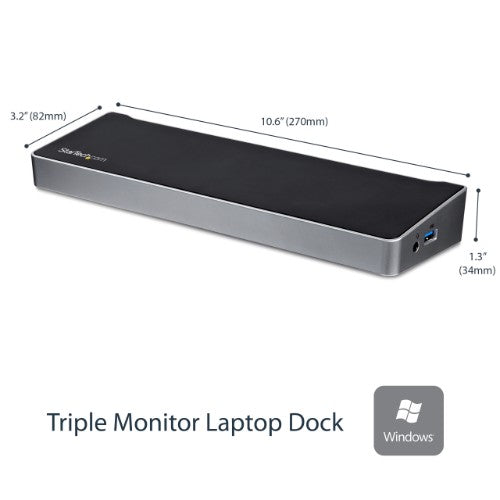

Weight & dimensions
Weight	13.3 oz (376 g)
Width	3.23" (82 mm)
Depth	10.6" (270 mm)
Height	1.34" (34 mm)
Package weight	2.27 lbs (1.03 kg)
Package width	11.7" (296 mm)
Package depth	6.46" (164 mm)
Package height	2.8" (71 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Cable lock slot	Yes
LED indicators	Activity, Link
Certification	CE, FCC, DisplayLink, TAA, REACH
Packaging data
Package weight	2.27 lbs (1.03 kg)
Package width	11.7" (296 mm)
Package depth	6.46" (164 mm)
Package height	2.8" (71 mm)

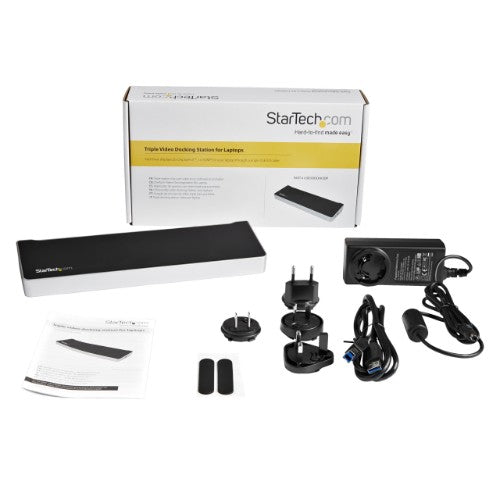

Packaging content
Manual	Yes
Cables included	USB
AC adapter included	Yes
Certificates
Certification	CE, FCC, DisplayLink, TAA, REACH
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	14.3" (363 mm)
Master (outer) case length	14.7" (373 mm)
Master (outer) case height	15.6" (395 mm)
Harmonized System (HS) code	84733020
Other features
USB data transfer rates	5000 Mbit/s
Number of microphone inputs	1
Chipset	DisplayLink - DL-5910, VLI - VL812
