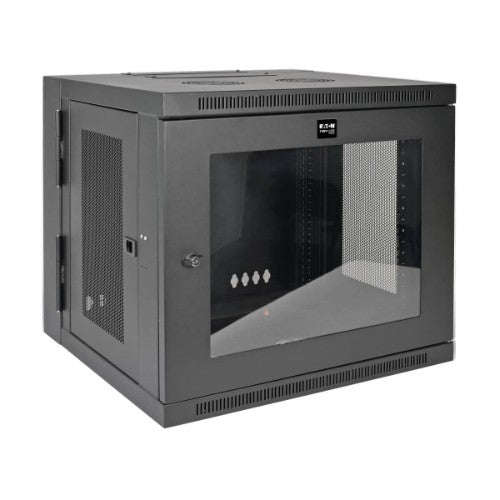

SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Swings away from wall on hinge for easy back-door access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep
Description
Saves Valuable WorkspacePerfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 10U of space
Maximum load capacity of 200 lb.
Hinged Cabinet for Convenient AccessSwings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180° before mounting to open reversible doors left or right

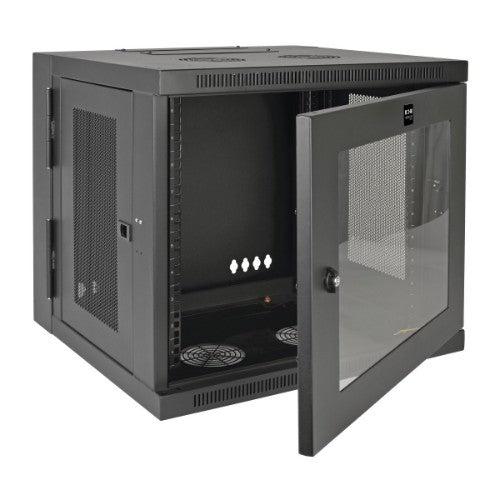

Shatter-Resistant Clear Acrylic Front WindowLets you monitor equipment without unlocking the enclosure
Prevents equipment tampering
Reduces acoustic noise
Provides extra visual flair
Keeps Important Equipment SecureSide panels and doors lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment InstallationShips fully assembled for quick installation
Mounts to wall or rolls on floor with optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart for standard wall stud placement

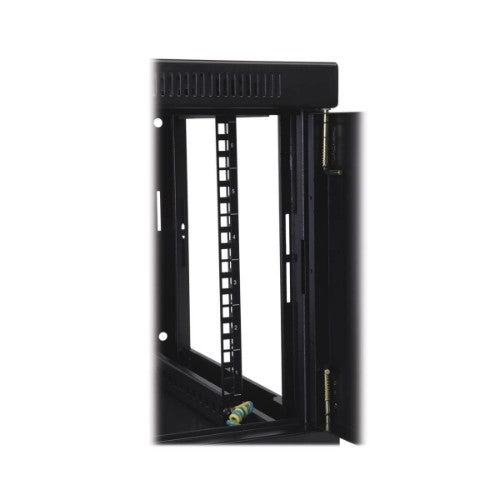

Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

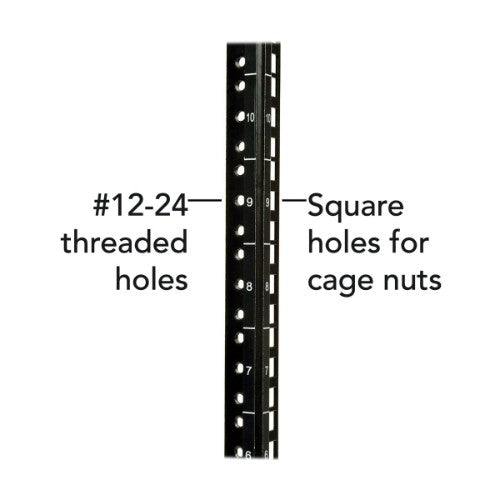

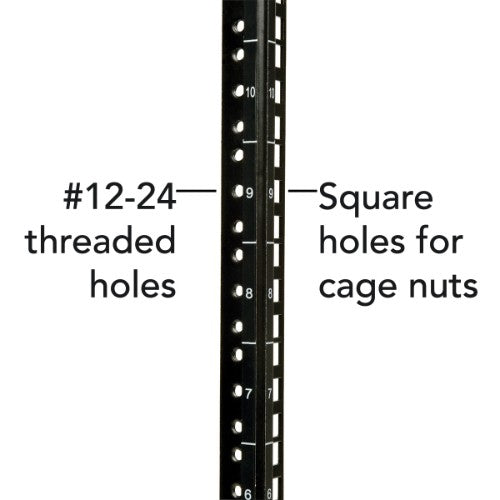

Rails support square-hole or 12-24 threaded-hole mounting
Rack spaces numbered for easy reference
Meets Payment Card Industry StandardsProvides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
Specifications
| Weight & dimensions |
|---|
| Package depth |
24.1" (612.9 mm) |
| Package width |
26.4" (670.1 mm) |
| Package height |
24.3" (616 mm) |
| Package weight |
59.1 lbs (26.8 kg) |
| Mounting depth (max) |
21.6" (54.8 cm) |
| Width |
23.6" (600 mm) |
| Depth |
21.6" (548 mm) |
| Height |
21.5" (546 mm) |
| Weight |
52.9 lbs (24 kg) |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Features |
|---|
| Number of fans |
4 fan(s) |
| Key lock |
Yes |
| Frame type |
Closed |
| Rack capacity |
10U |
| Removable front door |
Yes |
| Removable side panels |
Yes |
| Type |
Wall mounted rack |
| Side panels included |
Yes |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Product colour |
Black |
| Certification |
UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Package depth |
24.1" (612.9 mm) |
| Package width |
26.4" (670.1 mm) |
| Package height |
24.3" (616 mm) |
| Package weight |
59.1 lbs (26.8 kg) |
| Technical details |
|---|
| Package width |
26.4" (670.1 mm) |
| Package height |
24.3" (616 mm) |
| Type |
Wall mounted rack |
| Side panels included |
Yes |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
10U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
26.4" (670.1 mm) |
| Master (outer) case length |
24.1" (612.9 mm) |
| Master (outer) case height |
24.3" (616 mm) |
| Master (outer) case gross weight |
59.1 lbs (26.8 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
