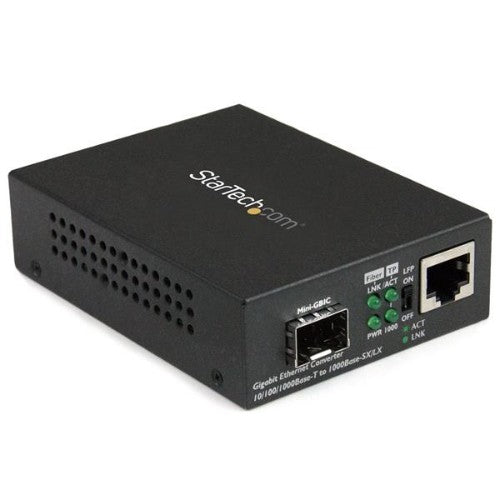

StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Supports 10/100/1000 Networks - Copper to Fiber Media Converter
Description
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
A cost-effective extension and flexible performance
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
Specifications
| Network |
|---|
| Fiber optic connector |
SFP |
| Jumbo frames support |
Yes |
| Converter input interface |
1000Base-T, 100Base-TX, 10Base-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Housing material |
Steel |
| Fiber mode structure |
Multi-mode, Single-mode |
| Internal |
No |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Performance |
|---|
| Jumbo frames support |
Yes |
| Wavelength-division multiplexing (WDM) |
Yes |
| Fiber mode structure |
Multi-mode, Single-mode |
| Mean time between failures (MTBF) |
50000 h |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |

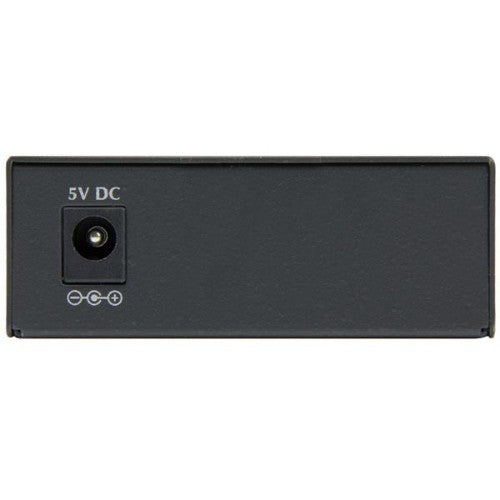

| DC-in jack |
Yes |
| Indication |
|---|

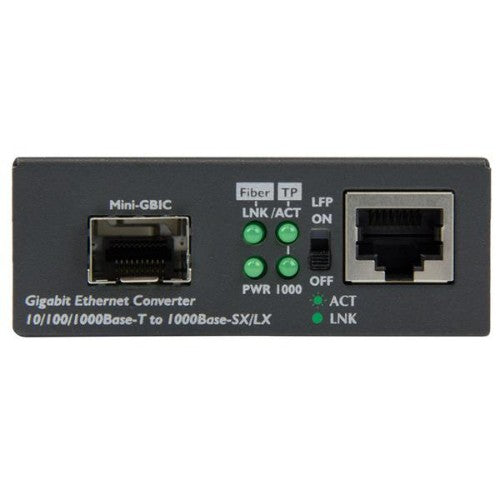

| LED indicators |
Activity, Link, Power |
| Design |
|---|
| Housing material |
Steel |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Certification |
CE, FCC |
| Internal |
No |
| Endurance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Power |
|---|
| Power plug type |
Type N |
| Power over Ethernet (PoE) |
No |
| Input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power consumption (typical) |
5 W |

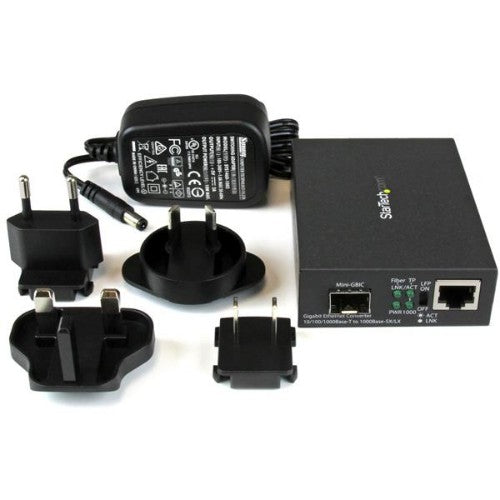

| External power adapter |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
2.76" (70 mm) |
| Depth |
3.74" (95 mm) |
| Weight |
6.53 oz (185 g) |
| Height |
1.02" (26 mm) |
| Package depth |
5.47" (139 mm) |
| Package width |
11.2" (284 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
19.2 oz (544 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging data |
|---|
| Package depth |
5.47" (139 mm) |
| Package width |
11.2" (284 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
19.2 oz (544 g) |
| Packaging content |
|---|
| Manual |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
