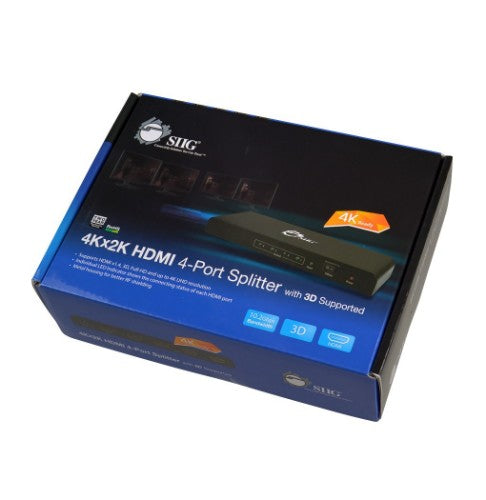

4Kx2K HDMI 4-Port Splitter with 3D Supported
Description

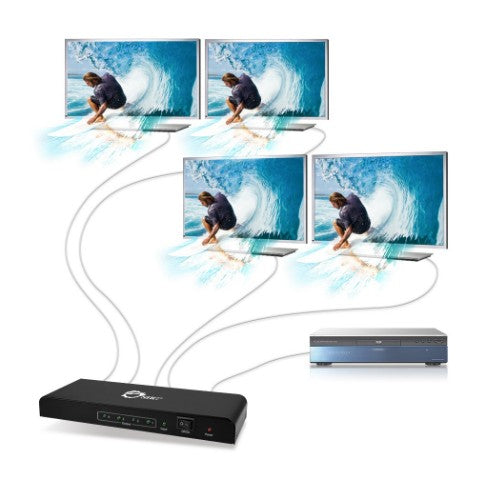

Distribute one HDMI source signal to four monitors simultaneously without signal data lossSIIG’s 4Kx2K HDMI 4-Port Splitter with 3D Supported is designed to broadcast HDMI content from one HDMI source to 4 display units without signal distortion and degradation. It supports premium video quality with full scale display resolutions up to 4Kx2K, 3D video, HDMI Deep Color, and multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD. It is easy and hassle-free to install with no software installation required. And it features automatic EDID learning ability to fully maximize the display unit’s compatibility. This HDMI 4-Port Splitter is a great device for digital signage deployment to broadcast high definition audio and video for both home and commercial applications.
Features- Supports HDMI v1.4, 3D, Full-HD and up to 4K UHD resolution
- Provides a wide range of applications for home entertainment, display signage, surveillance system, information center, conference meeting or presentation
- Works flawlessly with most of HDMI-equipped source and destination devices such as PC, Laptop, Blu-ray player, home theater system, gaming stations, monitors, TVs, video projectors, etc
- Individual LED Indicator shows the connecting status of each HDMI port
- Premium metal housing delivers superior heat dissipation for long life and stable operation in any environment
- Easy installation with no software installation required
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
4 |
| Video port type |
HDMI |
| Video out |
4x HDMI |
| Video in |
1x HDMI |
| HDMI version |
1.4 |
| DC-in jack |
Yes |
| Connector(s) |
5x 19-Pin, HDMI, Type A, Female |
| Features |
|---|
| LED indicators |
Link, Power |
| Housing material |
Metal |
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
720 x 480, 4096 x 2160, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Full HD |
Yes |
| HDCP |
Yes |
| Supported video modes |
1080i, 1080p, 2160p, 480p, 720p |
| Power LED |
Yes |
| Maximum operating distance |
590.6" (15 m) |
| Product colour |
Black |
| Certification |
FCC, CE, RoHS |
| 3D |
Yes |
| Bandwidth |
340 MHz |
| Power |
|---|
| Output current |
1 A |
| Output voltage |
5 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Weight & dimensions |
|---|
| Weight |
9.12 oz (258.5 g) |
| Dimensions (WxDxH) |
7.01 x 0.827 x 2.64" (178 x 21 x 67 mm) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| User guide |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Storage temperature (T-T) |
-15 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Video |
|---|
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
720 x 480, 4096 x 2160, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Full HD |
Yes |
| HDCP |
Yes |
| Supported video modes |
1080i, 1080p, 2160p, 480p, 720p |
| 3D |
Yes |
| Bandwidth |
340 MHz |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Indication |
|---|
| LED indicators |
Link, Power |
| Power LED |
Yes |
| Technical details |
|---|
| Housing material |
Metal |
| Connection to PC |
Yes |
| Video out |
4x HDMI |
| Video in |
1x HDMI |
| Maximum operating distance |
590.6" (15 m) |
| HDMI version |
1.4 |
