StarTech.com 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender
Description
This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

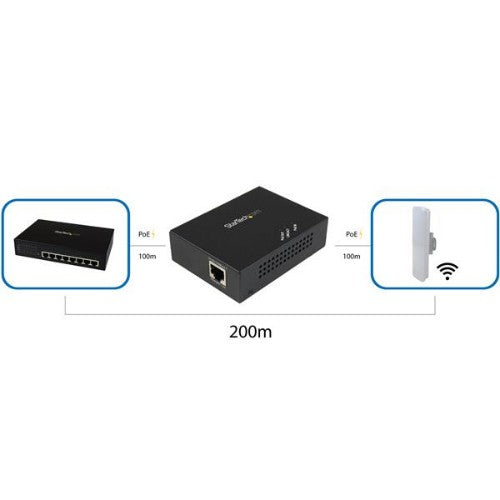

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenienceNeed more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibilityStill need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

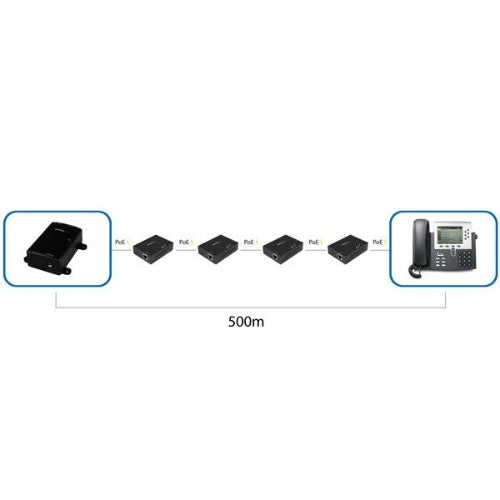

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable constructionGet up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Performance |
|---|
| Jumbo frames support |
No |
| Duplex system |
Full, Half |
| Plug and Play |
Yes |
| Type |
Network repeater |
| Maximum transfer distance |
3937" (100 m) |
| Power over Ethernet (PoE) |
Yes |
| Data transfer rate |
2000 Mbit/s |
| Mean time between failures (MTBF) |
50000 h |
| Auto MDIX IEEE |
Yes |
| Auto-negotiation |
Yes |
| Technical details |
|---|
| Jumbo frames support |
No |
| Duplex system |
Full, Half |
| Plug and Play |
Yes |
| LED indicators |
Activity, Link, PoE |
| Type |
Network repeater |
| Maximum transfer distance |
3937" (100 m) |
| Power over Ethernet (PoE) |
Yes |
| Data transfer rate |
2000 Mbit/s |
| Auto MDIX IEEE |
Yes |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Network |
|---|
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces |
|---|
| Power over Ethernet (PoE) ports quantity |
2 |
| Design |
|---|
| Housing material |
Steel |
| LED indicators |
Activity, Link, PoE |
| Certification |
CE, FCC, TAA, REACH |
| Product colour |
Black |
| Power |
|---|
| Power consumption (max) |
3.2 W |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
52 - 56 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
2.72" (69 mm) |
| Depth |
3.7" (94 mm) |
| Height |
0.984" (25 mm) |
| Weight |
6.81 oz (193 g) |
| Colour |
|---|
| Product colour |
Black |
| Endurance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
5.31" (135 mm) |
| Package depth |
8.07" (205 mm) |
| Package height |
2.76" (70 mm) |
| Package weight |
12.1 oz (343 g) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
