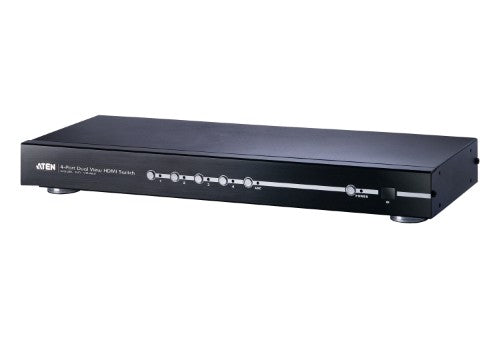

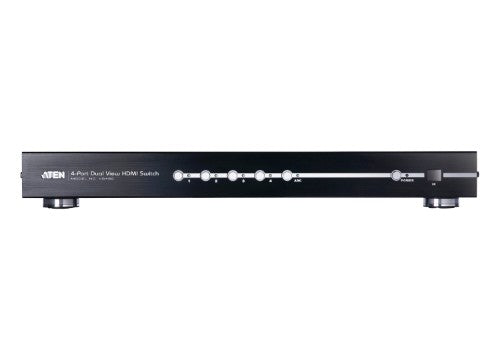

ATEN AT-VS482, HDMI, 4 x HDMI Type A Female (Black), 2 x HDMI Type A Female (Black), Metal, Black, 590.6" (15 m)
Key Features
- Allows up to four HDMI A/V sources to be connected to two HDMI displays
- HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration setting and information display
- Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
- Feature EDID Expert technology to set up different configurations via different EDID mode
- Allows users to view the HDMI input source port / device for easy selection
- Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
- Built-in bi-directional RS-232 serial control port for high-end system control *
- Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
- IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
- Rack mountable
- * Note: The VS482 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Description
ATEN AT-VS482. Video port type: HDMI, Video in: 4 x HDMI Type A Female (Black), Video out: 2 x HDMI Type A Female (Black). Material: Metal, Product color: Black, Maximum operating distance: 590.6" (15 m). Width: 17.2" (437.2 mm), Depth: 6.24" (158.6 mm), Height: 1.73" (44 mm)
Specifications
| Ports & interfaces |
|---|
| Video port type |
HDMI |
| Video out |
2 x HDMI Type A Female (Black) |
| Video in |
4 x HDMI Type A Female (Black) |
| RS-232 ports |
1 |
| HDMI ports quantity |
6 |
| Number of HDMI outputs |
2 |
| HDMI in |
4 |
| Audio (L/R) out |
2 |
| DC-in jack |
Yes |
| Features |
|---|
| HD type |
Full HD |
| 3D |
Yes |
| Product colour |
Black |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Rack mounting |
Yes |
| Maximum resolution |
1920 x 1080 pixels |
| Maximum operating distance |
590.6" (15 m) |
| Material |
Metal |
| HDCP |
Yes |
| Bandwidth |
225 MHz |
| Bandwidth |
6.75 Gbit/s |
| Weight & dimensions |
|---|
| Width (imperial) |
17.21" |
| Height (imperial) |
1.73" |
| Depth (imperial) |
6.24" |
| Width |
17.2" (437.2 mm) |
| Height |
1.73" (44 mm) |
| Depth |
6.24" (158.6 mm) |
| Weight |
4.78 lbs (2.17 kg) |
| Packaging content |
|---|
| User guide |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
