StarTech.com 6ft (1.8m) Heavy Duty Power Cord, NEMA 5-15P to C19 AC Power Cord, 15A 125V, 14AWG, Computer Power Cord, Heavy Gauge Power Cable for PDUs and Network Equipment, UL Listed (PXT515C19146)
Key Features
- HEAVY DUTY AC POWER CABLE: This 6ft (1.8m) 14AWG universal power cord with NEMA 5-15P and IEC 60320 C19 connectors is suitable for workstations/home office use / Rated to carry 125V at 15A

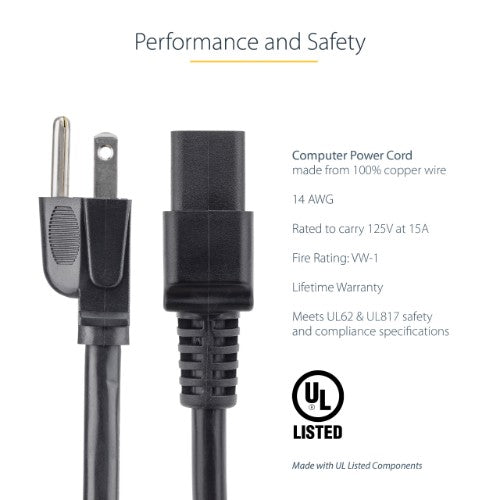

- PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) / Fully molded strain relief connectors for durability / Fire Rating: VW-1 / 3 Conductor Power Cable made with 100% Copper Wire / This C19 thick gauge computer power cord is available in other lengths
- SPECS: 6ft (1.8m) AC Power Cord / NEMA 5-15P to IEC 60320 C19 / 14AWG / 125V 15A (Max) / Jacket Type: SJT / Jacket Material: PVC / Black / Temperature Range: 37°F to 167°F (3°C to 75°C) / Cable Outer Diameter: 0.36in (9.1mm)
- COMPATIBILITY: PC Power Cord NEMA 5-15P works with North American outlets / IEC C19 connector works with most servers and networking equipment / Replacement PC power supply cable/cord
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this 3-prong power cable is backed for life, including free lifetime 24/5 multilingual technical assistance
Description

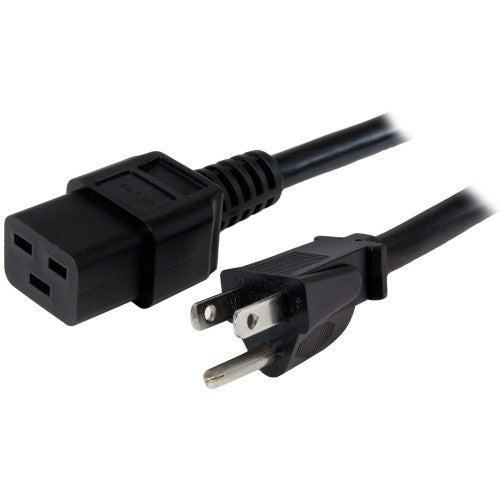

6ft (1.8m) Heavy Duty Power Cord, NEMA 5-15P to C19 Cable
This NEMA 5-15P-to-C19 power cord features 14 AWG wire that's suitable for high-power connections, making it perfect for high-end server equipment such as routers, switches, Power Distribution Units (PDU), etc.
Plus, you can use the cable to extend the reach of your existing power cord by 6 feet, which gives you the extra distance you need to place your devices according to your server room configuration.
Expertly designed and constructed of high-quality materials, the StarTech.com PXT515C19146 power cord is backed by a lifetime warranty.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
C19 coupler |
| Connector 1 |
NEMA 5-15P |
| Cable length |
70.9" (1.8 m) |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Number of conductors |
3 |
| Cable type |
SJT |
| AWG wire size |
14 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 2 |
C19 coupler |
| Connector 1 |
NEMA 5-15P |
| Cable length |
70.9" (1.8 m) |
| Connector 2 standard |
IEC 60320 |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Power |
|---|
| Maximum current |
15 A |
| Input voltage |
125 V |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
11.6 oz (328 g) |
| Diameter |
0.358" (9.1 mm) |
| Package width |
5.71" (145 mm) |
| Package depth |
11.4" (290 mm) |
| Package height |
2.05" (52 mm) |
| Package weight |
11.8 oz (335 g) |
| Packaging data |
|---|
| Package width |
5.71" (145 mm) |
| Package depth |
11.4" (290 mm) |
| Package height |
2.05" (52 mm) |
| Package weight |
11.8 oz (335 g) |
| Technical details |
|---|
| Maximum current |
15 A |
| Jacket material |
Polyvinyl chloride (PVC) |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
13.4" (340 mm) |
| Master (outer) case length |
20.6" (524 mm) |
| Master (outer) case height |
9.84" (250 mm) |
