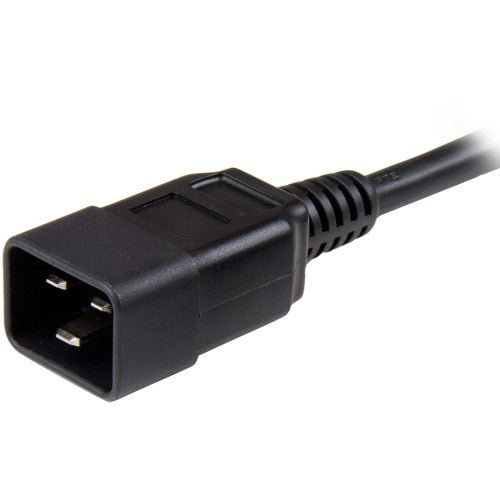

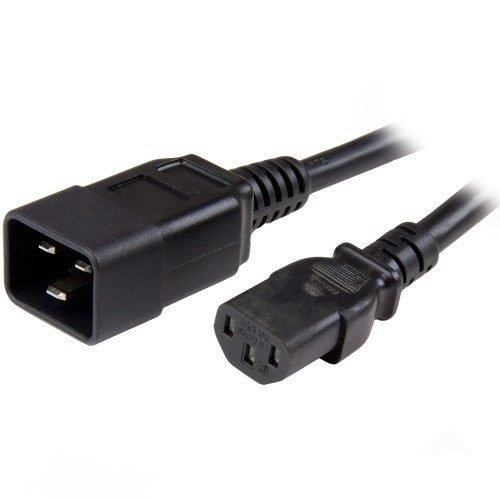

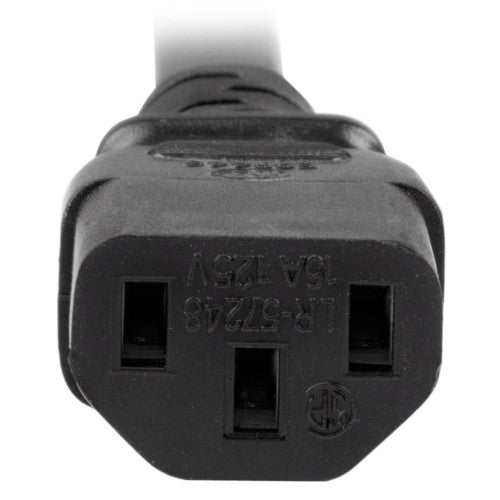

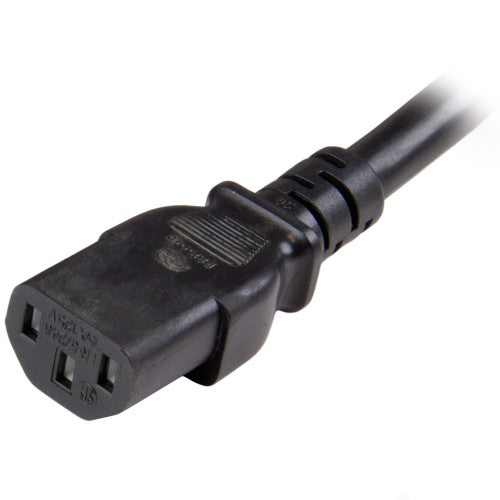

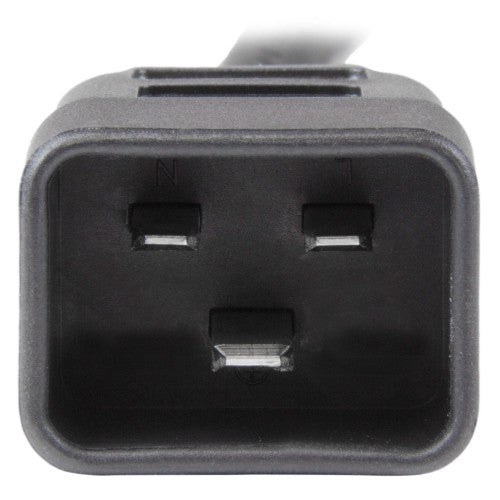

StarTech.com 6ft (1.8m) Heavy Duty Extension Cord, IEC 320 C13 to IEC 320 C20 Black Extension Cord, 15A 125V, 14AWG, Heavy Gauge Extension Cable, Heavy Duty AC Power Cord, UL Listed (PXTC13C20146)
Key Features
- HEAVY DUTY EXTENSION CABLE: This 6ft (1.8m) 14AWG universal power cord with IEC 60320 C13 to IEC 60320 C20 connectors is suitable for workstations/home office / Indoor use / Rated to carry 125V at 15A
- PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) / Fully molded strain relief on connectors for durability / Fire Rating: VW-1 / 3 Conductor Power cable made with 100% copper wire / Available in other lengths
- SPECS: 6ft (1.8m) AC Power Cord / IEC 60320 C13 to IEC 60320 C20 / 14AWG / 125V 15A (Max) / Jacket Type: SJT / Jacket Material: PVC / Black / Temperature Range: 37°F to 140°F (3°C to 60°C) / Cable Outer Diameter: 0.36in (9.14mm)
- COMPATIBILITY: PC Power Cord C13 works with most computer hardware / Extend connections to servers, desktop computers, monitors, printers, and more / Replacement power extension cable/cord
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this power extension cable is backed for life, including free lifetime 24/5 multilingual technical assistance
Description
6ft (1.8m) Heavy Duty Extension Cord, IEC C13 to IEC C20
This 6ft C13-to-C20 power cord features 14 AWG wire that's suitable for high-power connections, making it perfect for server applications and connecting to a Power Distribution Unit (PDU).
Expertly designed and constructed of high-quality materials, the StarTech.com PXTC13C20146 power cord is backed by a lifetime warranty.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
C13 coupler |
| Connector 1 |
C20 coupler |
| Cable length |
70.9" (1.8 m) |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Number of conductors |
3 |
| Cable type |
SJT |
| AWG wire size |
14 |
| Certification |
UL |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 2 |
C13 coupler |
| Connector 1 |
C20 coupler |
| Cable length |
70.9" (1.8 m) |
| Connector 1 standard |
IEC 60320 |
| Connector 2 standard |
IEC 60320 |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Power |
|---|
| Maximum current |
15 A |
| Input voltage |
125 V |
| Colour |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
3 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
11.8 oz (335 g) |
| Diameter |
0.36" (9.14 mm) |
| Package width |
5.71" (145 mm) |
| Package depth |
11.4" (290 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
12.1 oz (342 g) |
| Packaging data |
|---|
| Package width |
5.71" (145 mm) |
| Package depth |
11.4" (290 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
12.1 oz (342 g) |
| Technical details |
|---|
| Maximum current |
15 A |
| Jacket material |
Polyvinyl chloride (PVC) |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
13.6" (345 mm) |
| Master (outer) case length |
20.7" (525 mm) |
| Master (outer) case height |
8.98" (228 mm) |
