CyberPower OR1000PFCLCD uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s)

1000VA / 700W, 8 Outlets, USB, Serial Communication Ports

Description

The CyberPower PFC Sinewave OR1000PFCLCD mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding networking hardware, network-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

CyberPower's OR1000PFCLCD with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 6.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

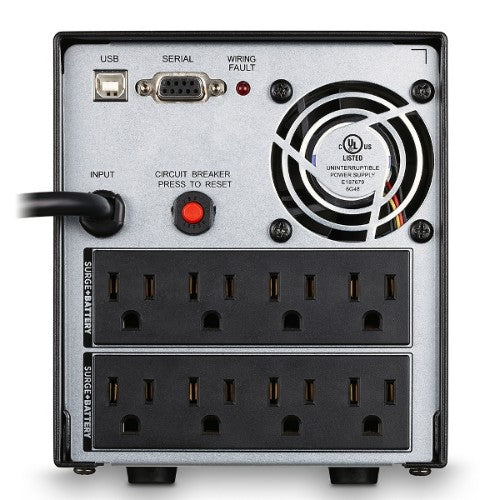

The OR1000PFCLCD unit has a capacity of 1000VA / 700W, eight (8) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The front LCD panel displays all major UPS vitals for ease of use and provides user selectable options to customize performance. This unit offers connectivity via one (1) HID USB and one (1) DB9 port. EMI/RFI filters decrease the susceptibility of the load to noise disturbances.

This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.

Specifications

Power
Output power	700 W
Input operation voltage (min)	78 V
Input operation voltage (max)	142 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Output power capacity	1 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Performance
UPS topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Features
UPS topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
Output power	700 W
Input operation voltage (min)	78 V
Input operation voltage (max)	142 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Output power capacity	1 kVA
Input frequency	50/60 Hz
Battery
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	10 min
Typical backup time at full load	2 min
Design
Form factor	Mini Tower
Product colour	Black
Safety	UL1778 4th, cUL 107.3-05, FCC/DoC Class B
Cable length	70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Weight	24.7 lbs (11.2 kg)
Width	5.39" (137 mm)
Height	13.8" (351 mm)
Depth	6.42" (163 mm)
Certificates
Safety	UL1778 4th, cUL 107.3-05, FCC/DoC Class B
