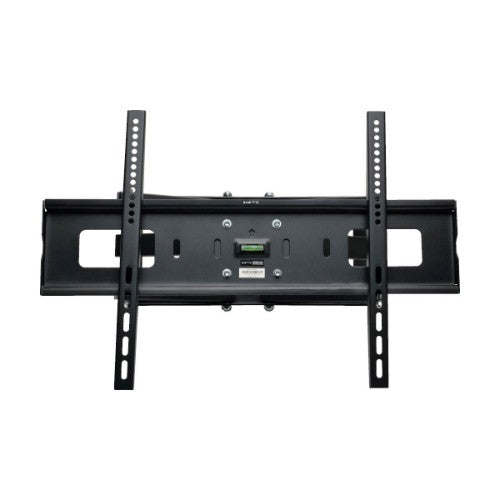

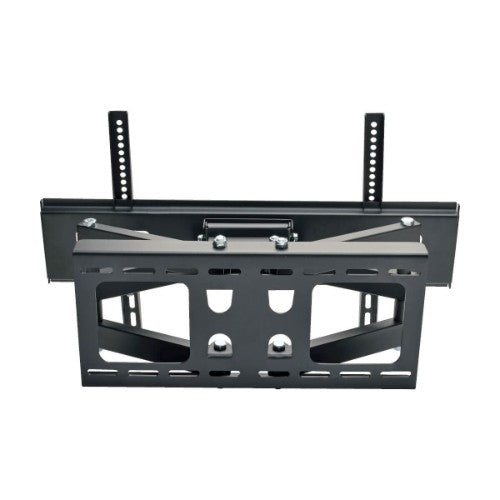

Swivel/Tilt Wall Mount for 37" to 70" TVs and Monitors
Key Features
- Fits most flat-panel displays from 37 to 70 in.
- One-touch adjustment for comfortable viewing
- 120° swivel, -15° to +15° tilt and -3° to +3° screen adjustment
- Supports up to 165 lbs (74.8 kgs)
Description
The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.

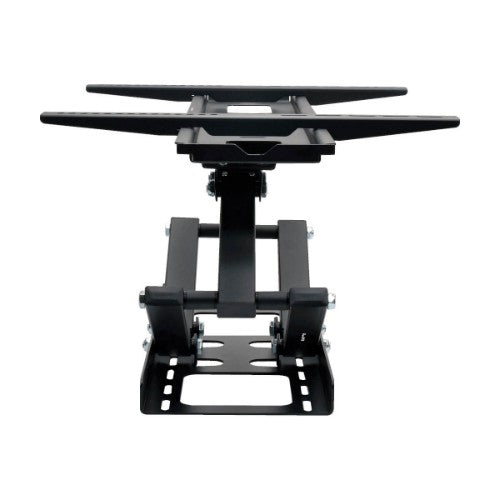

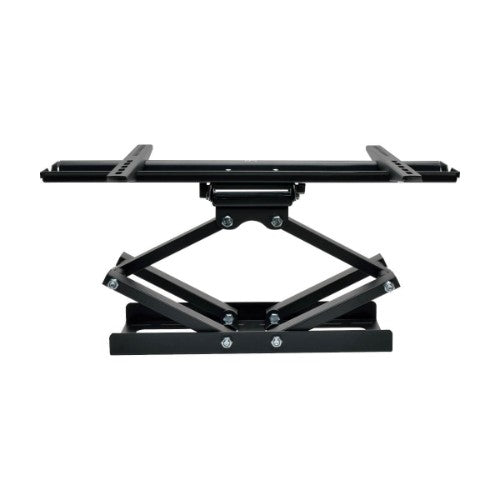

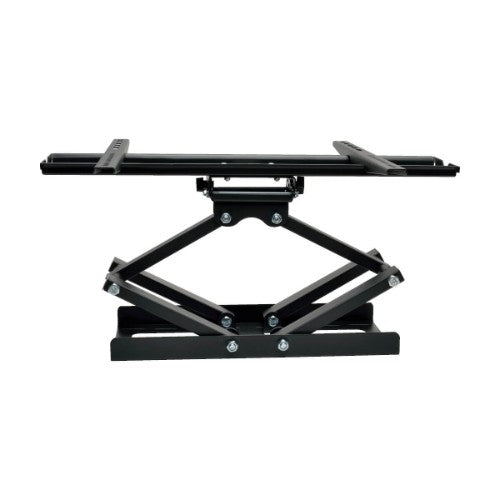

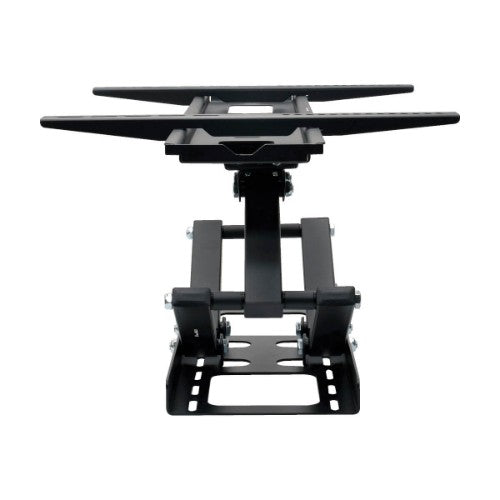

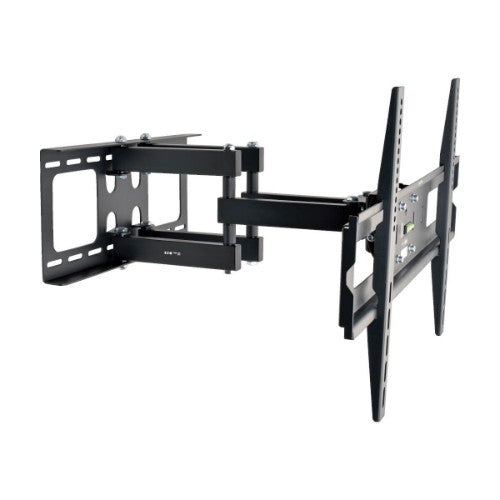

The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
37" |
| Panel mounting interface |
100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,500 x 200,500 x 300,500 x 400,600 x 300,600 x 400 |
| Number of displays supported |
1 |
| Minimum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount |
23.6 x 15.7" (600 x 400 mm) |
| Maximum screen size |
70" |
| Maximum weight capacity |
165.3 lbs (75 kg) |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Tilt angle range |
-15 - 15° |
| Swivel angle range |
-3 - 3° |
| Swivel angle |
120° |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Design |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
23.7" (601 mm) |
| Depth |
20.6" (524 mm) |
| Height |
17.3" (440 mm) |
| Weight |
17.4 lbs (7.88 kg) |
| Packaging data |
|---|
| Package width |
9.5" (241.3 mm) |
| Package depth |
27.9" (708.7 mm) |
| Package height |
4.4" (111.8 mm) |
| Package weight |
20.6 lbs (9.34 kg) |
| Mounting kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
9.9" (251.5 mm) |
| Master (outer) case length |
28.3" (718.8 mm) |
| Master (outer) case height |
10" (254 mm) |
| Master (outer) case gross weight |
42.1 lbs (19.1 kg) |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332187434 |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
