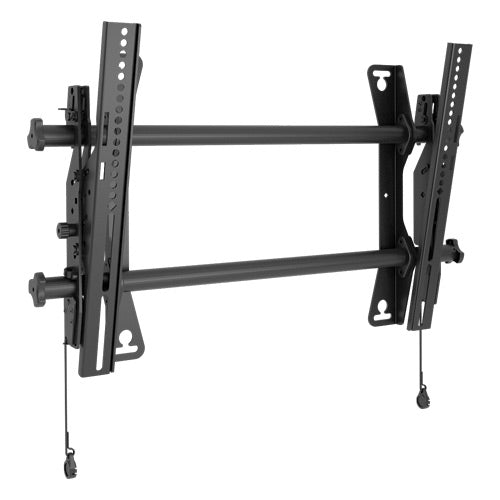

Medium Fusion Tilt Wall Mount
Description
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
26" |
| Number of displays supported |
1 |
| Minimum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount |
25.2 x 15.7" (640 x 400 mm) |
| Maximum screen size |
46" |
| Maximum weight capacity |
125.2 lbs (56.8 kg) |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Certification |
UL |
| Product colour |
Black |
| Certificates |
|---|
| Certification |
UL |
| Weight & dimensions |
|---|
| Width |
25.7" (654 mm) |
| Depth |
2.01" (51 mm) |
| Height |
16.5" (419 mm) |
| Packaging data |
|---|
| Package weight |
15.4 lbs (7 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
