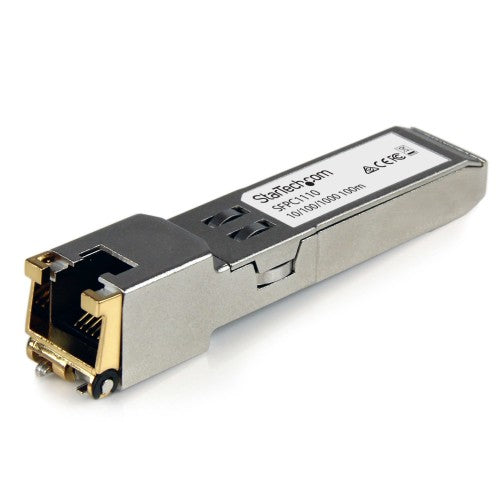

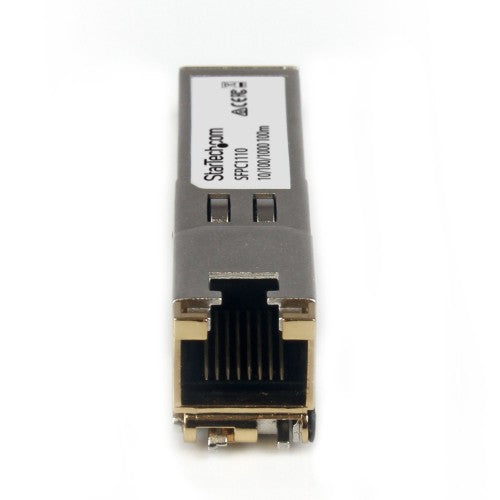

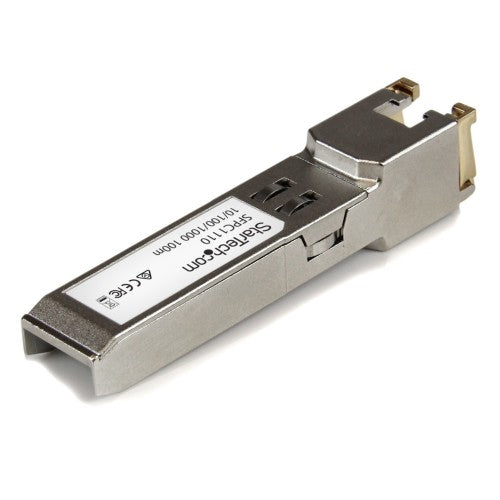

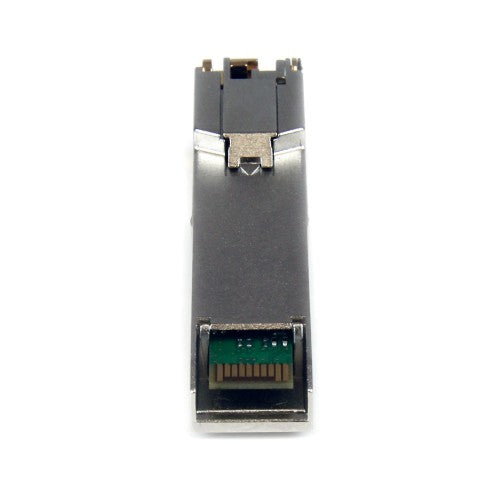

StarTech.com Cisco SFP-GE-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco IE3400, IE3300, IE3200 (SFPC1110)
Key Features
- 100% CISCO SFP-GE-T COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, , and others
- TECHNICAL SPECS: 1000BASE-T / 1 Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance |
|---|
| SFP transceiver type |
Copper |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Auto-negotiation |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
SFP |
| Networking standards |
IEEE 802.3ab |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Maximum transfer distance |
3937" (100 m) |
| Cabling technology |
1000BASE-T |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
4655371 h |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
4655371 h |
| Certification |
CE, FCC, UL, REACH |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Network |
|---|
| SFP transceiver type |
Copper |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
SFP |
| Networking standards |
IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
1000BASE-T |
| Weight & dimensions |
|---|
| Width |
0.512" (13 mm) |
| Depth |
2.76" (70 mm) |
| Height |
0.512" (13 mm) |
| Weight |
1.62 oz (46 g) |
| Package depth |
4.57" (116 mm) |
| Package width |
3.62" (92 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.94 oz (55 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package depth |
4.57" (116 mm) |
| Package width |
3.62" (92 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.94 oz (55 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
8.11" (206 mm) |
| Master (outer) case length |
11.7" (298 mm) |
| Master (outer) case height |
9.76" (248 mm) |
| Products per master (outer) case |
36 pc(s) |
| Harmonized System (HS) code |
85369010 |
