StarTech.com 4-Port USB 2.0 Extender - 130ft (40m) USB Over Cat5/Cat6 Extender - Compact USB 2.0 Over Ethernet Extender (USB2004EXTV)
Key Features
- Place your devices where you need them with this cost-effective USB extender
- Unique 4-port design with 2 ports on top for easy access
- OS independent for fast, hassle-free set-up

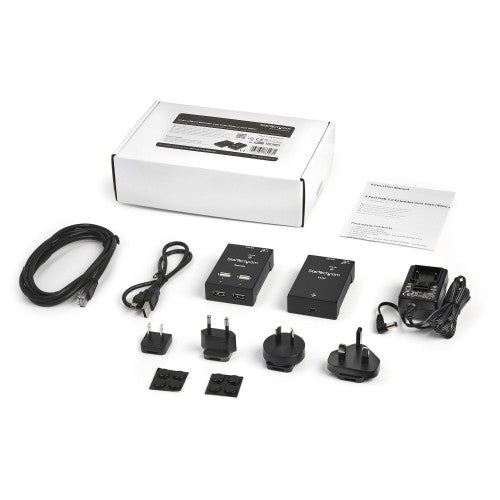

- Kit includes a transmitter and a 4-port hub receiver
- Supports transfer rates of up to 480 Mbps
- Plug-and-play and hot-swap compatible
Description
Connect four USB 2.0 devices away from your computer over Cat5 or Cat6 (40m)
This 4-port USB 2.0 extender is an easy and inexpensive solution for creating workspace freedom. Now you can extend the distance of your USB 2.0 devices over a single Ethernet cable, up to 130ft (40m) over Cat5 or Cat6.
Go the extra distance for increased productivity
Overcome the 16ft USB cable length limitation to create a more flexible and efficient workspace. Now you can place up to four USB devices in remote locations away from the host computer system. Position your hard drive enclosure, printer, scanner, webcam and other popular peripherals right where you need them, to save time and enhance your productivity.
Port location enables fast and easy connections
Gain quick access to the USB devices you use most frequently. Often on the go? Use the two top ports for fast, easy connections to portable devices like flash drives, smartphones and tablets. Plus, you still have two front-facing ports for printers or other devices requiring a more permanent set-up.
Supports any operating system and older devices
The versatile USB2004EXTV supports Windows®; Mac® and Linux systems. Set-up is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Specifications
| Technical details |
|---|
| Type |
Console transmitter & receiver |
| Rubber feet |
Yes |
| LED indicators |
Link, Power |
| Housing material |
Steel |
| Data transfer rate |
480 Mbit/s |
| Cable types supported |
Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7 |
| Maximum transfer distance |
1968.5" (50 m) |
| Product colour |
Black |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
CE, RoHS |
| Ports & interfaces |
|---|
| Mini-USB 2.0 ports quantity |
1 |
| RJ-45 ports quantity |
2 |
| DC-in jack |
Yes |
| USB 2.0 Type-A ports quantity |
4 |
| Weight & dimensions |
|---|
| Package width |
9.29" (236 mm) |
| Package depth |
6.14" (156 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
24.7 oz (700 g) |
| Width |
2.05" (52 mm) |
| Depth |
3.15" (80 mm) |
| Height |
0.866" (22 mm) |
| Weight |
11.3 oz (319 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Colour |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Cables included |
LAN (RJ-45), USB |
| Power |
|---|
| Power consumption (max) |
10 W |
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
2 A |
| Power plug type |
Type N |
| Input current |
0.4 A |
| Logistics data |
|---|
| Master (outer) case width |
12.8" (324 mm) |
| Master (outer) case length |
15.8" (402 mm) |
| Master (outer) case height |
10.2" (258 mm) |
| Products per master (outer) case |
12 pc(s) |
| Harmonized System (HS) code |
84733020 |
