StarTech.com 4-Post 12U Mobile Open Frame Server Rack, 19in Network Rack with Wheels, Rolling Rack for Computer/AV/Data/IT Equipment - Casters, Leveling Feet or Floor Mounting (4POSTRACK12U)
Key Features

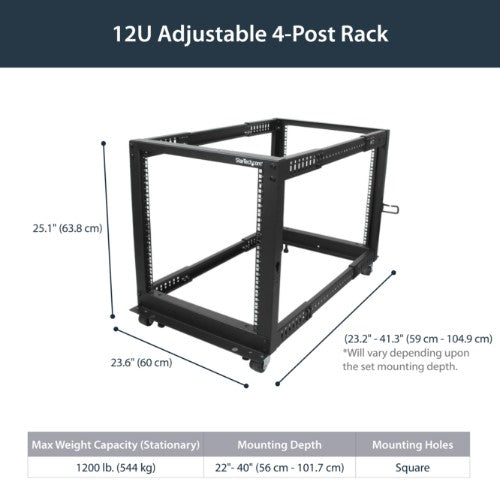

- ADJUSTABLE DEPTH: 4- Post 12U open frame server rack with 4 vertical rails and adjustable mounting depth 22" to 40" (56cm to 101cm); Compatible with various servers / switches / data / AV and other IT equipment; EIA/ECA-310-E Compliant
- EASY ASSEMBLY: Mobile network rack with easy-to-follow assembly instructions and online video; Compact flat-pack shipping to avoid damage and facilitate installation; Only 25in (64cm) high, ideal for utility/server closets or narrow home/office spaces
- COLD ROLLED STEEL: Durable 4 Post 19" open frame rack designed for ventilation with 12U mounting height and 1200lb (544kg) weight capacity (stationary); 3 install options included: casters, levelling feet, or base-plate to secure rack to the floor

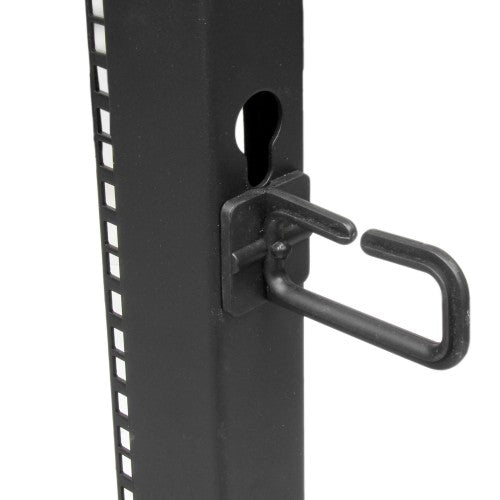

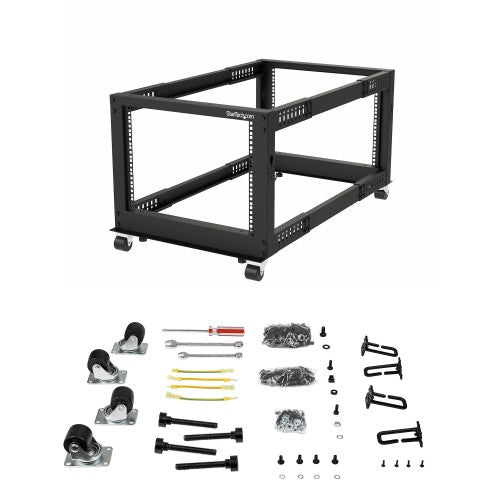

- HARDWARE INCLUDED: Rolling computer/data rack includes cage nuts and screws to mount equipment, easy to read Units (U) and depth adjustment markings, cable management hooks for organization, and required assembly tools
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 12U rack is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Computer Equipment Rack | 22" to 40" Adjustable Mounting Depth | Casters | Leveling Feet | Cable Management Hooks

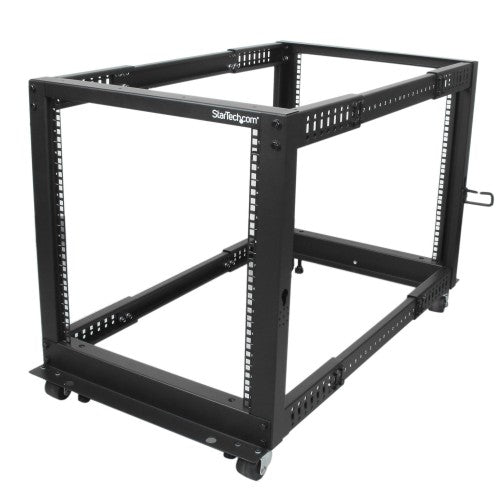

The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

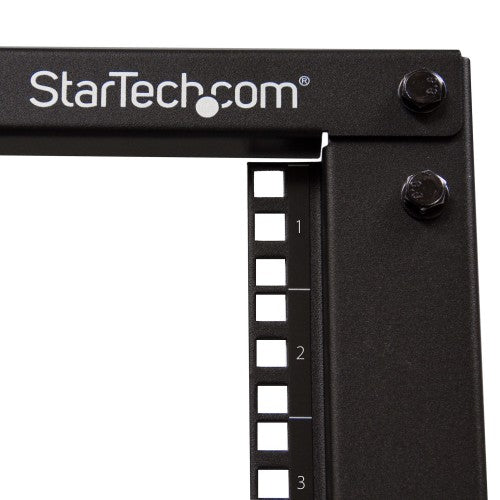

Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 40494) for a universal design that's compatible with most rack equipment.

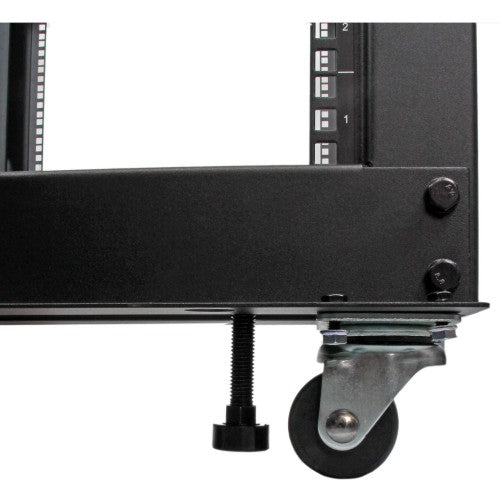

For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
The StarTech.com Advantage
Specifications
| Weight & dimensions |
|---|
| Package depth |
25.6" (650 mm) |
| Package width |
14.2" (361 mm) |
| Package height |
6.3" (160 mm) |
| Package weight |
58 lbs (26.3 kg) |
| Mounting depth (max) |
39.4" (100 cm) |
| Mounting depth (min) |
22" (56 cm) |
| Width |
23.8" (604 mm) |
| Depth |
39.4" (1000 mm) |
| Height |
25.1" (638 mm) |
| Weight |
50 lbs (22.7 kg) |
| Maximum weight capacity |
1199.3 lbs (544 kg) |
| Packaging content |
|---|
| Nuts included |
Yes |
| Number of nuts |
40 |
| Screws included |
Yes |
| Number of screws |
44 |
| Number of bolts |
48 |
| Number of washers included |
88 |
| Number of grounding wires included |
4 |
| Number of leveling feets included |
4 pc(s) |
| Number of cable management hooks included |
4 pc(s) |
| Features |
|---|
| Number of fans |
0 fan(s) |
| Frame type |
Open |
| Product design |
4-post |
| Rack capacity |
12U |
| Castor wheels |
Yes |
| Adjustable mounting rails |
Yes |
| Cable management |
Yes |
| Mounting hole shape |
Square |
| Type |
Freestanding rack |
| Maximum weight capacity |
1199.3 lbs (544 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
CE |
| Packaging data |
|---|
| Nuts included |
Yes |
| Number of nuts |
40 |
| Package depth |
25.6" (650 mm) |
| Package width |
14.2" (361 mm) |
| Package height |
6.3" (160 mm) |
| Package weight |
58 lbs (26.3 kg) |
| Screws included |
Yes |
| Number of screws |
44 |
| Number of bolts |
48 |
| Number of washers included |
88 |
| Number of grounding wires included |
4 |
| Number of leveling feets included |
4 pc(s) |
| Number of cable management hooks included |
4 pc(s) |
| Technical details |
|---|
| Package width |
14.2" (361 mm) |
| Package height |
6.3" (160 mm) |
| Type |
Freestanding rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
12U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
14.2" (361 mm) |
| Master (outer) case length |
25.6" (650 mm) |
| Master (outer) case height |
6.3" (160 mm) |
| Products per master (outer) case |
12 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
