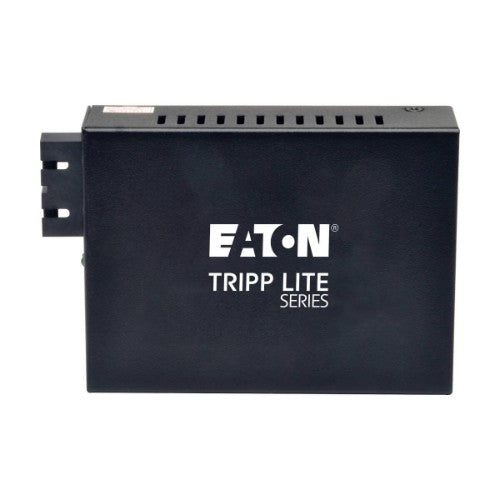

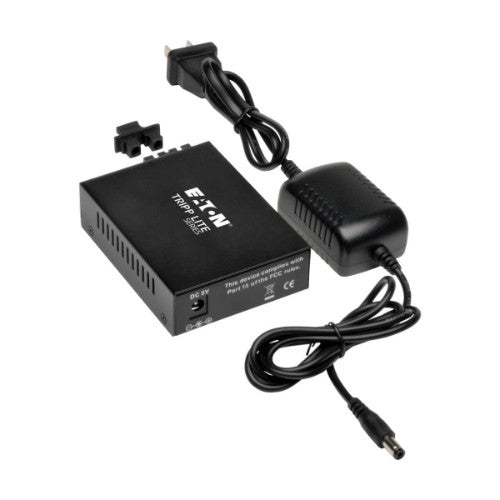

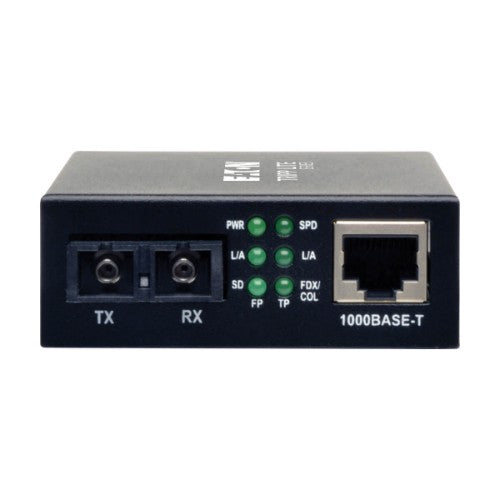

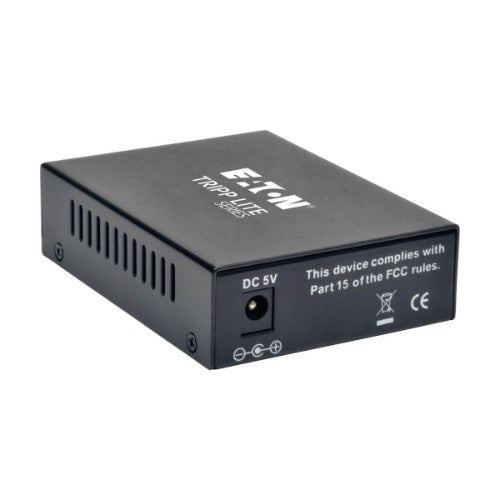

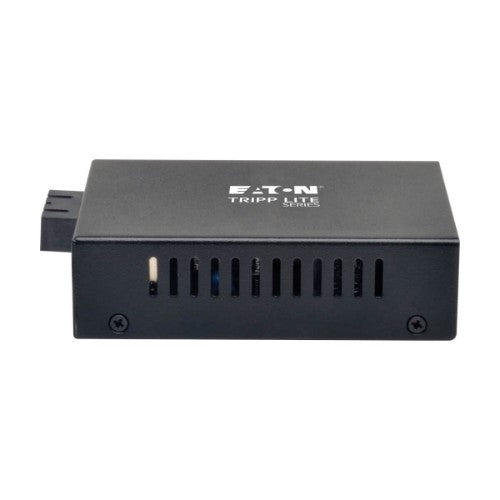

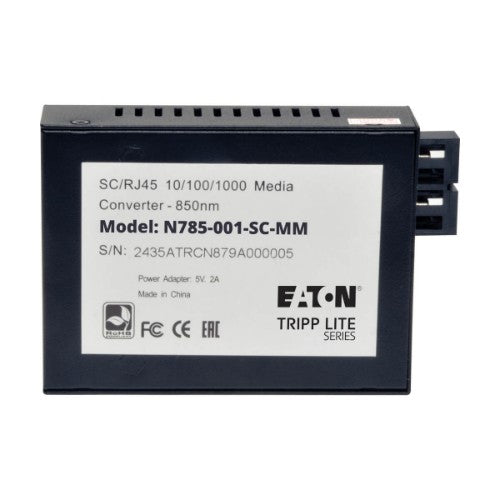

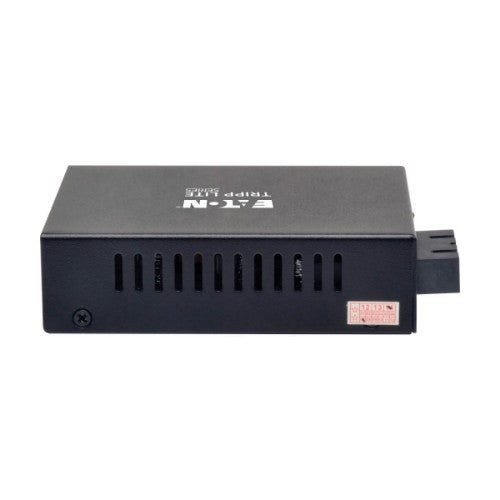

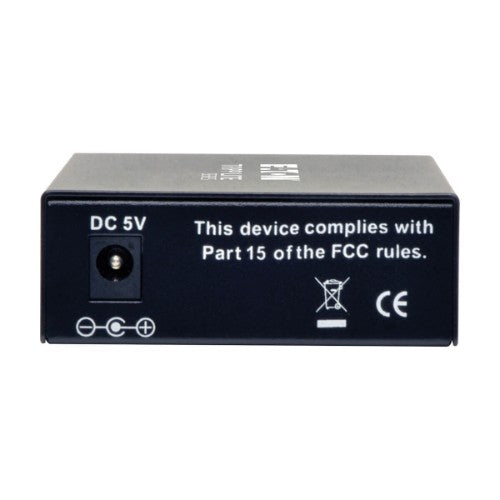

SC Multimode Media Converter 10/100/1000, 550M, 850nm RJ45
Description
Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
- Extends a Gigabit Ethernet signal up to 550M over Multimode Fiber Optic Cable
- Auto detects Full/Half Duplex Transfer Mode
- 10/100/1000 UTP to Multimode Fiber converter
- Up to 550M (1800-ft.) range
- Auto-detects Full / Half Duplex Transfer Mode
- Auto Negotiation MDI / MDI-X
- 6 performance monitoring LEDs
- 850nm wavelength
- Small, compact design
Specifications
| Network |
|---|
| Converter input interface |
1000Base-T |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
21653.5" (550 m) |
| Fiber mode structure |
Multi-mode |
| Features |
|---|
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber optic connector |
SC |
| DC-in jack |
Yes |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
1.2 A |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width |
2.76" (70.1 mm) |
| Depth |
3.7" (94 mm) |
| Weight |
7.05 oz (200 g) |
| Height |
1.02" (25.9 mm) |
| Package depth |
4.92" (125 mm) |
| Package width |
2.17" (55.1 mm) |
| Package height |
9.06" (230.1 mm) |
| Package weight |
13.8 oz (390 g) |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package depth |
4.92" (125 mm) |
| Package width |
2.17" (55.1 mm) |
| Package height |
9.06" (230.1 mm) |
| Package weight |
13.8 oz (390 g) |
| Technical details |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
21653.5" (550 m) |
| Fiber mode structure |
Multi-mode |
| Internal |
No |
| Master (outer) case GTIN (EAN/UPC) |
10037332184143 |
| Design |
|---|
| Country of origin |
China |
| Product colour |
Black |
| Internal |
No |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case width |
10" (254 mm) |
| Master (outer) case length |
10.8" (275.1 mm) |
| Master (outer) case height |
12" (305.1 mm) |
| Master (outer) case gross weight |
9.92 lbs (4.5 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332184143 |
