SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Allows easy access to equipment and cabling
- Stores 12U of 19 in. rack equipment up to 18 in. deep
- Simple to assemble and mount
- Assembly and equipment-mounting hardware included
Description

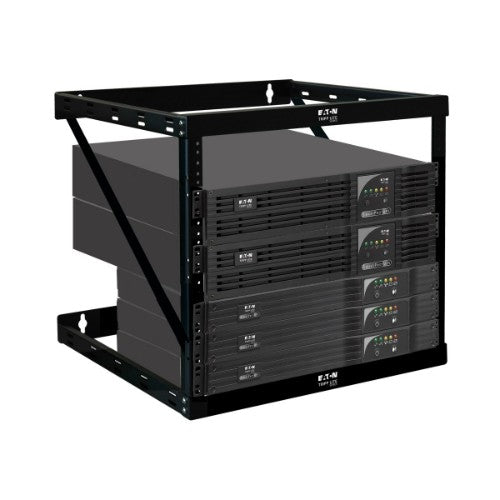

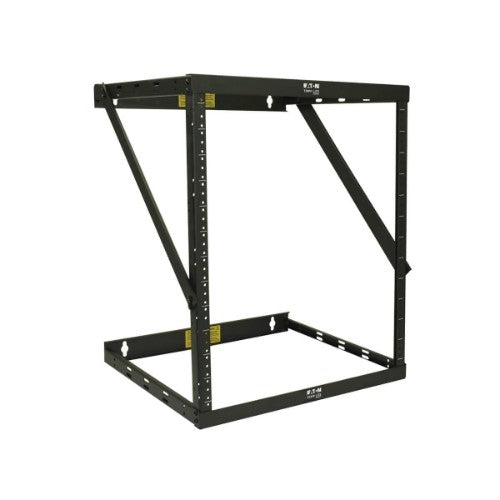

The SRWO12UHD SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 200 lbs (90.7 kgs).
The open frame design allows unrestricted access for installing, configuring and servicing equipment and cabling. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.
Specifications
| Weight & dimensions |
|---|
| Package depth |
21.3" (541 mm) |
| Package width |
22.8" (579.1 mm) |
| Package height |
4.1" (104.1 mm) |
| Package weight |
15.1 lbs (6.85 kg) |
| Width |
20.1" (510.8 mm) |
| Depth |
18.2" (463.3 mm) |
| Height |
24.8" (629.9 mm) |
| Weight |
14.3 lbs (6.5 kg) |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Features |
|---|
| Rack capacity |
12U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Product colour |
Black |
| Certification |
NOM, EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS |
| Packaging data |
|---|
| Package depth |
21.3" (541 mm) |
| Package width |
22.8" (579.1 mm) |
| Package height |
4.1" (104.1 mm) |
| Package weight |
15.1 lbs (6.85 kg) |
| Technical details |
|---|
| Package width |
22.8" (579.1 mm) |
| Package height |
4.1" (104.1 mm) |
| Type |
Wall mounted rack |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
12U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
NOM, EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
22.8" (579.1 mm) |
| Master (outer) case length |
21.3" (541 mm) |
| Master (outer) case height |
4.1" (104.1 mm) |
| Master (outer) case gross weight |
15.1 lbs (6.85 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
