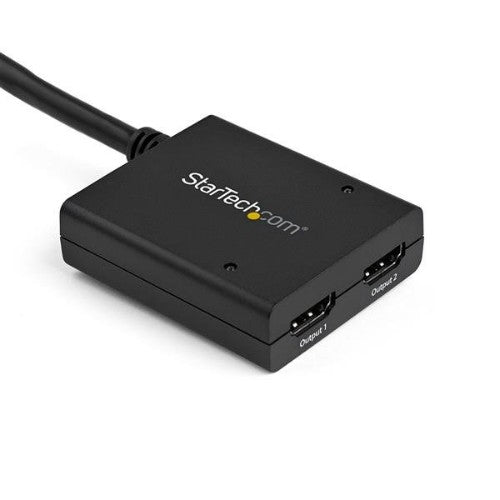

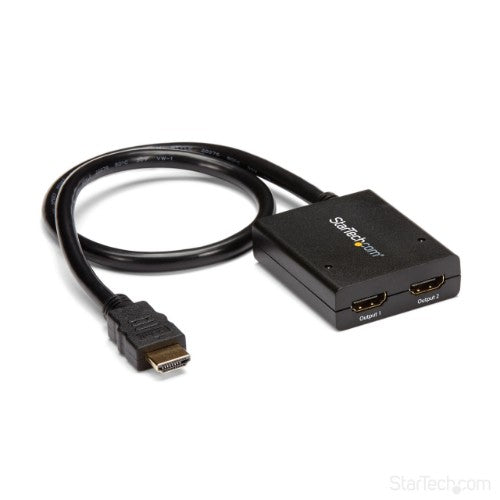

StarTech.com 4K HDMI Splitter 1 In 2 Out - 4K 30Hz HDMI 1.4 2 Port Video Splitter Box -with high speed HDMI cable, USB power cable - Black (ST122HD4KU)
Key Features
- 2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to dual HD / 4K 30Hz & 7.1 CH audio; Support for 7.1 surround sound audio
- MAXIMUM COMPATIBILITY: The 4K splitter is backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices such as computers, Blu-ray players etc
- EASY SETUP: No drivers required for the 1-Input 2-output HDMI 1.4 splitter; The HDMI splitter can be powered with the included USB cable, or power adapter depending on which is most convenient for the user

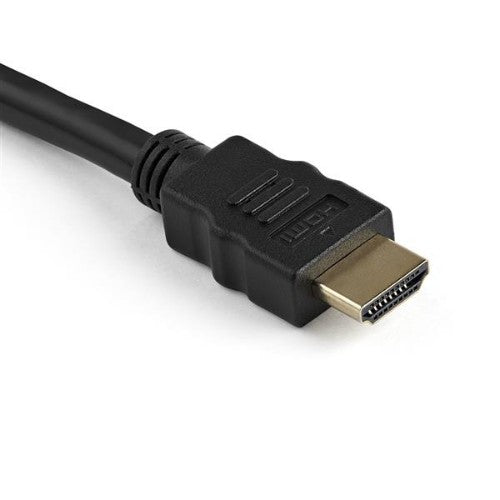

- VERSATILE FUNCTIONALITY: The 2-port video splitter features a built-in HDMI source cable, which lets you connect it directly to your HDMI source without the expense of additional cabling
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Description
Split an HDMI audio/video source to two separate HDMI Displays, with support for HDMI 4K, and Power through a nearby USB port.
The ST122HD4KU 2-port video splitter supports Ultra HD (4K) ensuring astonishing picture quality, four times the resolution of high-definition 1080p, while sharing a 4K HDMI video source between two HDMI displays.
The 4K splitter is backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices such as computers, Blu-ray players and cable TV set-top boxes. Even if you don't require 4K video today, the video splitter ensures you'll be ready to take advantage of tomorrow's display technology while still working with the devices you already have. Plus, this splitter supports 3D, enabling you to use the splitter with your stereoscopic 3D video source on active or passive 3D displays.
For a hassle-free setup you can power the HDMI splitter with the included USB cable, or power adapter depending on which is most convenient for you. Plus, the splitter features a built-in HDMI source cable, which lets you connect it directly to your HDMI source without the expense of additional cabling.
The ST122HD4KU is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
2 |
| Video port type |
HDMI |
| Video out |
2x HDMI |
| HDMI version |
1.4 |
| DC-in jack |
Yes |
| Ethernet LAN |
No |
| Features |
|---|
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| Product colour |
Black |
| Certification |
REACH, FCC, CE |
| Network |
|---|
| Ethernet LAN |
No |
| Power |
|---|
| Input current |
0.5 A |
| Output current |
2 A |
| USB powered |
Yes |
| Output voltage |
5 V |
| AC input voltage |
100-240 V |
| Weight & dimensions |
|---|
| Weight |
8.29 oz (235 g) |
| Width |
1.97" (50 mm) |
| Depth |
24.4" (620 mm) |
| Height |
0.709" (18 mm) |
| Package weight |
14 oz (396 g) |
| Package depth |
6.14" (156 mm) |
| Package width |
9.06" (230 mm) |
| Package height |
2.2" (56 mm) |
| Packaging data |
|---|
| Package weight |
14 oz (396 g) |
| Package depth |
6.14" (156 mm) |
| Package width |
9.06" (230 mm) |
| Package height |
2.2" (56 mm) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Included power plug types |
AU, EU, NA, UK |
| Manual |
Yes |
| Cables included |
USB |
| Video |
|---|
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
REACH, FCC, CE |
| Technical details |
|---|
| Package width |
9.06" (230 mm) |
| Package height |
2.2" (56 mm) |
| Video out |
2x HDMI |
| HDMI version |
1.4 |
| Audio support |
Yes |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
