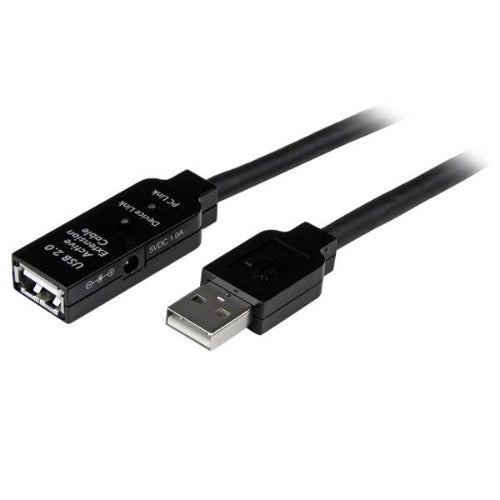

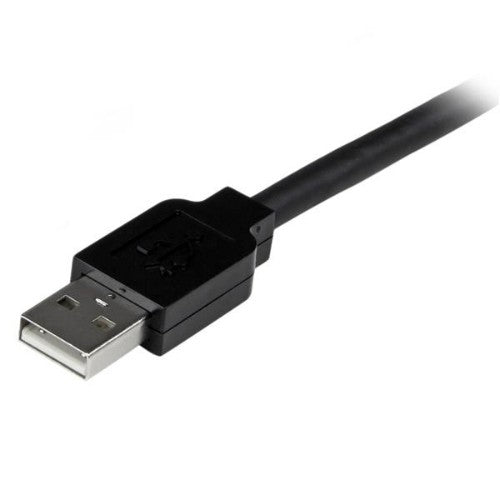

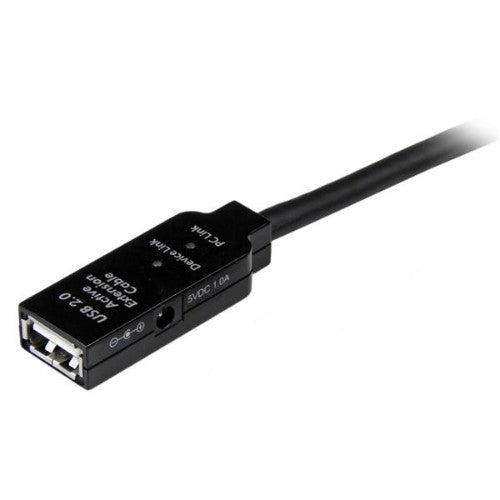

StarTech.com 5m USB 2.0 Active Extension Cable M/F - 5 meter USB A Male to USB A Female USB 2.0 Repeater / Extender Cable - Black - 15ft
Description
The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.

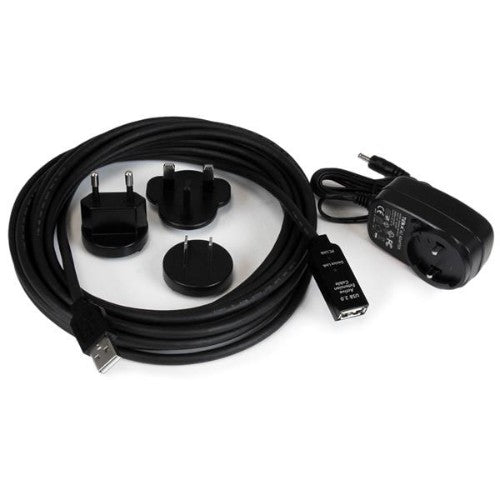

If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices
Specifications
| Features |
|---|
| Connector gender |
Male/Female |
| Cable shielding |
Aluminum mylar foil |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| Reversible connectors |
No |
| AWG wire size |
24 |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Cable length |
196.9" (5 m) |
| Connector contacts plating |
Nickel |
| Maximum data transfer rate |
480 Mbit/s |
| Product colour |
Black |
| Certification |
CE, FCC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
0.48 Gbit/s |
| Output voltage |
5 V |
| Output current (max) |
1 A |
| Weight |
10.1 oz (286 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
5 V |
| Output current (max) |
1 A |
| Weight & dimensions |
|---|
| Cable length |
196.9" (5 m) |
| Weight |
10.1 oz (286 g) |
| Package width |
8.9" (226 mm) |
| Package depth |
8.46" (215 mm) |
| Package height |
2.28" (58 mm) |
| Package weight |
16.6 oz (472 g) |
| Packaging data |
|---|
| Package width |
8.9" (226 mm) |
| Package depth |
8.46" (215 mm) |
| Package height |
2.28" (58 mm) |
| Package weight |
16.6 oz (472 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|---|
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector contacts plating |
Nickel |
| Data transmission |
|---|
| Maximum data transfer rate |
480 Mbit/s |
| Technical details |
|---|
| Product colour |
Black |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
