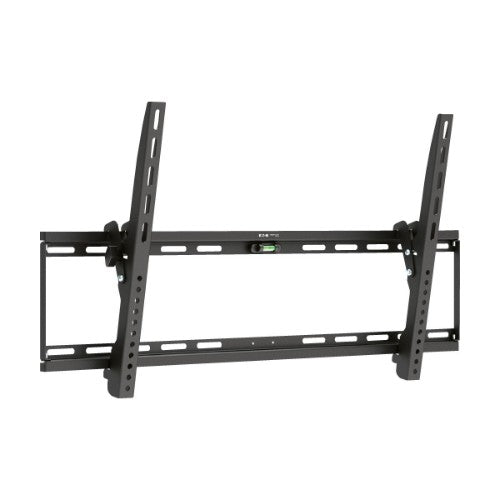

Tilt Wall Mount for 37" to 70" TVs and Monitors
Key Features
- Fits most flat-panel displays from 37 to 70 in.
- Hangs out of sight for a sleek, professional appearance
- -10° to 0° tilt capability for comfortable viewing
- Supports up to 200 lbs (90.7 kgs)
Description
The VESA-compliant DWT3770X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

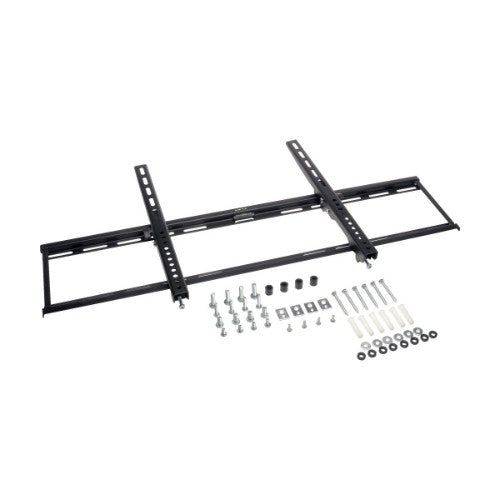

Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
37" |
| Panel mounting interface |
100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,600 x 400,800 x 400 |
| Number of displays supported |
1 |
| Minimum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount |
31.5 x 15.7" (800 x 400 mm) |
| Maximum screen size |
70" |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Ergonomics |
|---|
| Tilt angle range |
-10 - 0° |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
34" (864.1 mm) |
| Depth |
1.8" (45.7 mm) |
| Height |
17.3" (439.9 mm) |
| Weight |
6.59 lbs (2.99 kg) |
| Packaging data |
|---|
| Package width |
2.6" (66 mm) |
| Package depth |
35" (889 mm) |
| Package height |
8.4" (213.4 mm) |
| Package weight |
7.19 lbs (3.26 kg) |
| Logistics data |
|---|
| Master (outer) case width |
12" (304.8 mm) |
| Master (outer) case length |
35" (889 mm) |
| Master (outer) case height |
9.1" (231.1 mm) |
| Master (outer) case gross weight |
36.8 lbs (16.7 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332183610 |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
