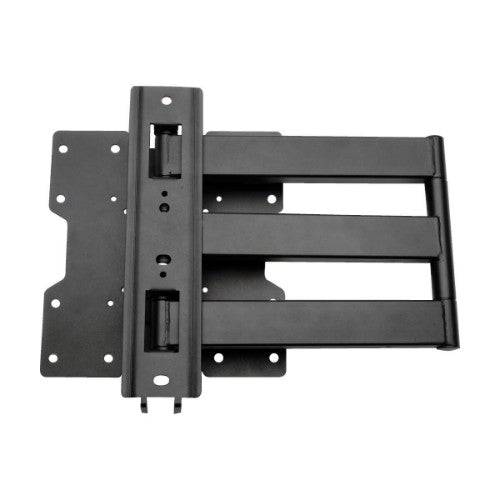

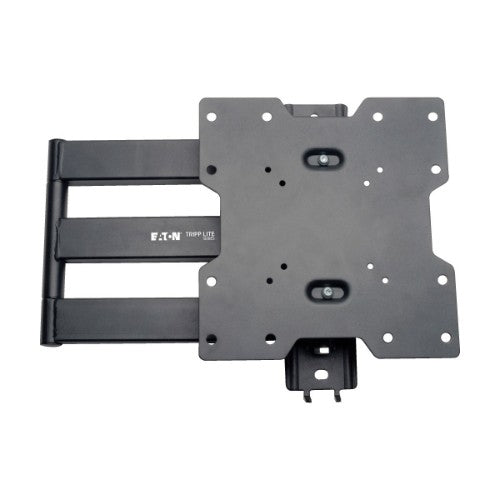

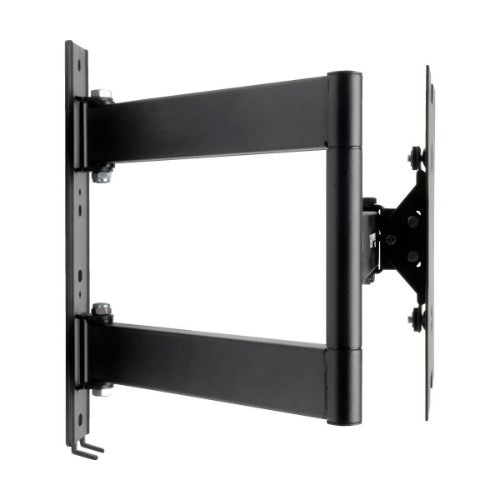

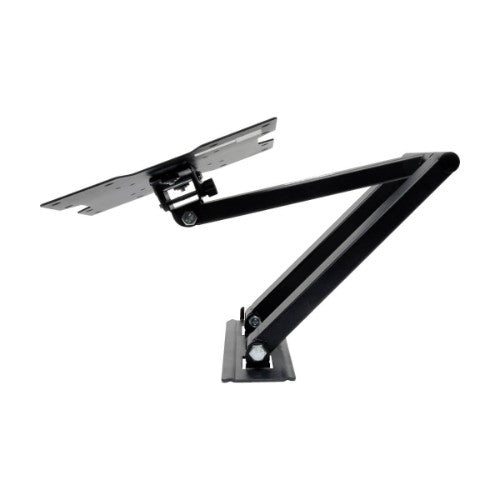

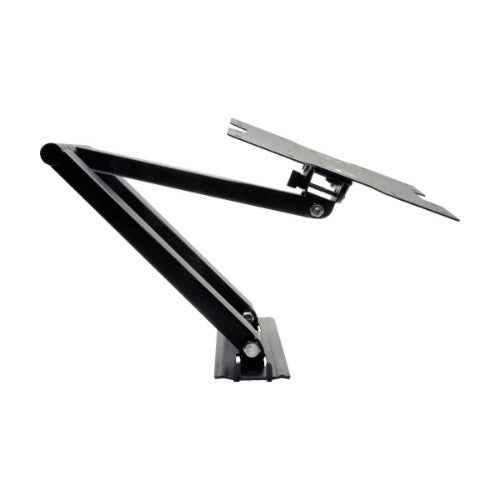

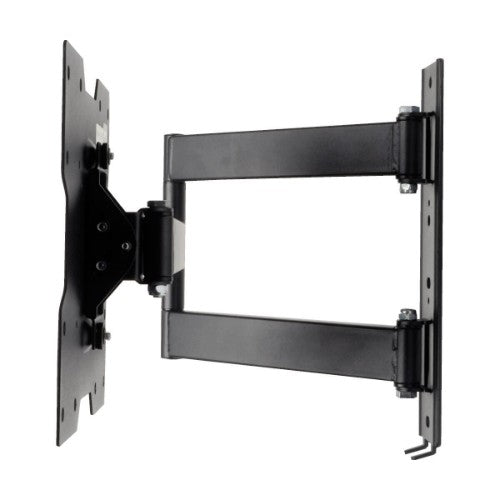

Swivel/Tilt Wall Mount with Arms for 17" to 42" TVs and Monitors, UL certified
Key Features
- Fits most flat-panel displays from 17 to 42 in.
- One-touch adjustment for comfortable viewing
- 180° swivel, -15° to +15° tilt and -3° to +3° screen adjustment
- Supports up to 77 lbs (34.9 kgs)
- UL certified
Description
The VESA-compliant DWM1742MA Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.
The full-motion swivel arm can be adjusted for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

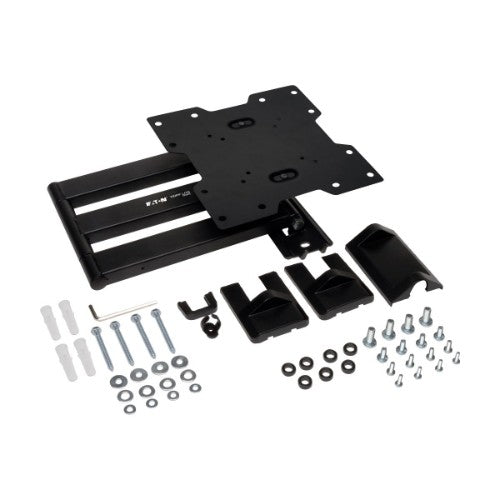

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 77 lbs (34.9 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75 mm, 200 x 100 mm and 200 x 200 mm.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
17" |
| Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200 |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
7.87 x 7.87" (200 x 200 mm) |
| Maximum screen size |
42" |
| Maximum weight capacity |
77.2 lbs (35 kg) |
| Ergonomics |
|---|
| Tilt angle range |
-15 - 15° |
| Swivel angle |
180° |
| Technical details |
|---|
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
8.74" (222 mm) |
| Depth |
22" (557.8 mm) |
| Height |
11.1" (281.9 mm) |
| Weight |
6.59 lbs (2.99 kg) |
| Packaging data |
|---|
| Package width |
15.6" (396.2 mm) |
| Package depth |
11.7" (297.2 mm) |
| Package height |
3.4" (86.4 mm) |
| Package weight |
8.51 lbs (3.86 kg) |
| Logistics data |
|---|
| Master (outer) case width |
15.6" (395 mm) |
| Master (outer) case length |
16.1" (410 mm) |
| Master (outer) case height |
12.4" (315 mm) |
| Master (outer) case gross weight |
43 lbs (19.5 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332183542 |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
