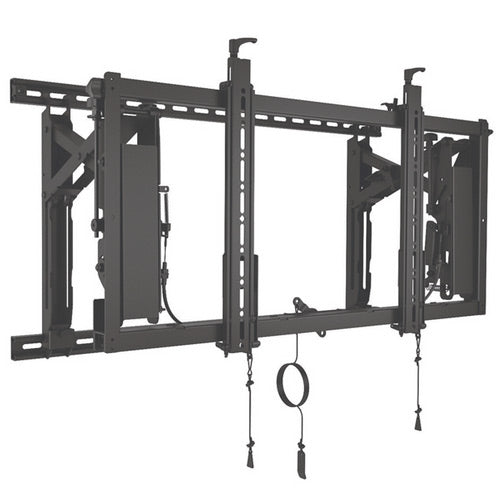

ConnexSys Video Wall Landscape Mounting System with Rails
Description
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements
The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.
SPEED
- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
MISCELLANEOUS
- Security - pad lock 1/4" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position
RIGIDITY
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Specifications
| Mounting |
|---|
| Minimum screen size |
42" |
| Maximum weight capacity |
149.9 lbs (68 kg) |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Minimum VESA mount |
7.87 x 3.94" (200 x 100 mm) |
| Maximum VESA mount |
27.6 x 15.7" (700 x 400 mm) |
| Maximum screen size |
80" |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Tilt angle range |
-2.5 - 4° |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
35.5" (902 mm) |
| Depth |
4.02" (102 mm) |
| Height |
21.8" (554 mm) |
| Package weight |
44.1 lbs (20 kg) |
| Packaging data |
|---|
| Package weight |
44.1 lbs (20 kg) |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Technical details |
|---|
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Other features |
|---|
| Compatibility |
MIS-F (200x200mm)
MIS-F (300x300mm)
MIS-F (400x200mm)
MIS-F (400x400mm)
MIS-F (600x400mm) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
