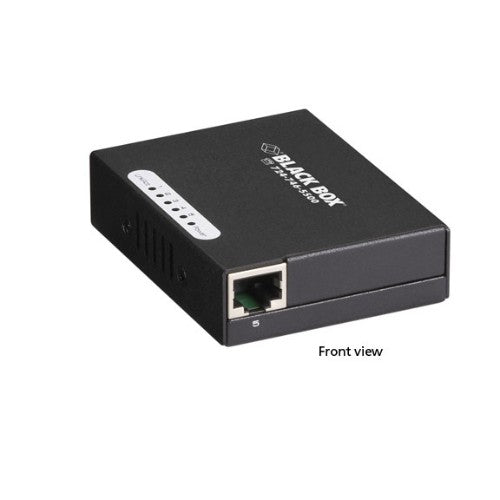

USB-Powered, 10/100 5-Port Switch, 1K
Description
- Pocket-size Fast Ethernet switches are a quick way to build a small network or add ports to an existing network.
- Can be powered through a PC's USB port so there's no need to find a spare outlet. Or use the included AC power supply.
Further Details- Five autosensing 10-/100-Mbps ports.
- Autonegotiating half-/full-duplex.
- Auto-MDI/MDI-X function on all ports, so no need for cross-pinned cables.
- Non-blocking, store-and-forward switching method.
- Easy-to-see LED indicators enable you to view network status.
- Easy plug-and-play operation.
- Compact so you can tuck it neatly in back of your PC.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Data transmission |
|---|
| MAC address table |
1000 entries |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
No |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Width |
2.44" (62 mm) |
| Depth |
3.11" (79 mm) |
| Height |
0.787" (20 mm) |
| Power |
|---|
| Power connector |
DC-in jack |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Indication |
|---|
| LED indicators |
Yes |
