650-1750 RPM, 71.93 CFM, 27.2 dBA, 1.86 mmH₂O, 4-Pin, PWM, 120 mmm, 12 VDC
Key Features
- New Gen S Dual Chamber Pump
- Expanded Radiator Surface
- 120mm ARGB Fans
- Clean Classic Design
- CryoFuze Performance Thermal Paste
Description

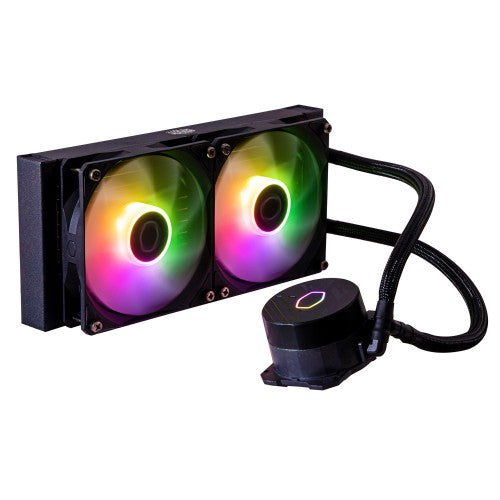

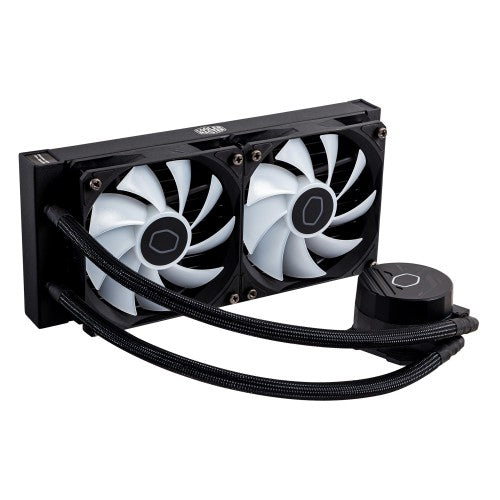

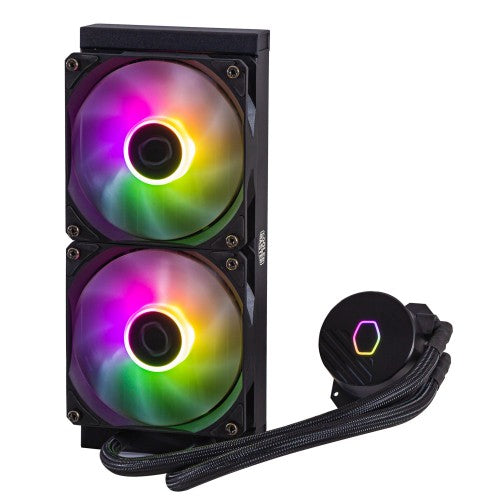

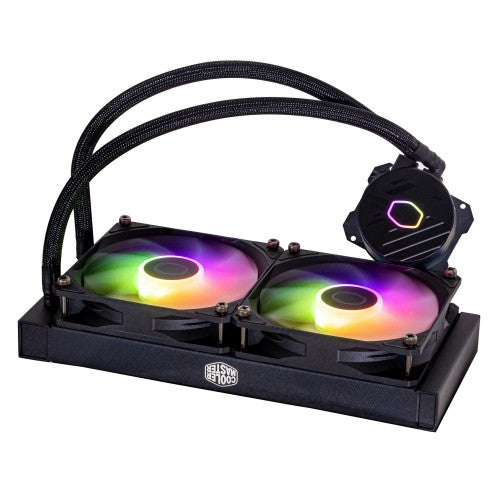

Cooler Master has built upon the classic MasterLiquid L Series to present a redesigned and improved release of the MasterLiquid 240L Core ARGB. Featuring new design elements that bring a classic minimalist look to the series, the MasterLiquid 240L Core ARGB represents Cooler Master’s ongoing innovative spirit.

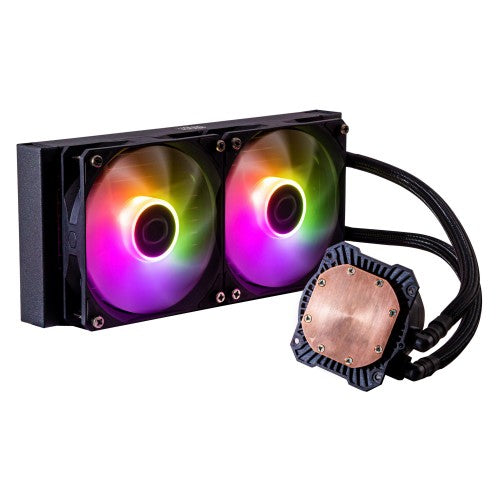

Gen S Dual Chamber PumpRedesigned copper base targets heat spots with precision along with boosted water flow and pressure for enhanced cooling performance.
Expanded Radiator SurfaceExpanded radiator fin surface accelerates heat dissipation for superior cooling.
120mm ARGB FansUpgraded 120mm ARGB fans deliver optimal radiator performance and versatile lighting options.
CyoFuze Thermal PasteIncludes premium CryoFuze thermal paste for exceptional heat conductivity.
CLEAN CLASSIC DESIGNClean minimalist design brings a refreshed modern facelift to the pump cover.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Pulse-width modulation (PWM) support |
Yes |
| Rotational speed (min) |
650 RPM |
| Rotational speed (max) |
1750 RPM |
| Bearing type |
Rifle bearing |
| Noise level (high speed) |
27.2 dB |
| Type |
Liquid cooling kit |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM2 |
| Maximum airflow |
71.93 cfm |
| Maximum air pressure |
1.86 mmH2O |
| Number of fans |
2 fan(s) |
| Pump connector |
3-pin |
| Pump noise level |
12 dB |
| Pump's mean time to failure (MTTF) |
70000 h |
| Fan's mean time to failure (MTTF) |
160000 h |
| Design |
|---|
| Fan connector |
4-pin |
| Number of fans |
2 fan(s) |
| Illumination colour |
Multi |
| Product colour |
Black |
| Illumination LED |
Yes |
| Radiator material |
Aluminum |
| Technical details |
|---|
| Noise level (high speed) |
27.2 dB |
| Type |
Liquid cooling kit |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM2 |
| Maximum airflow |
71.93 cfm |
| Maximum air pressure |
1.86 mmH2O |
| Number of fans |
2 fan(s) |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Pump connector |
3-pin |
| Power |
|---|
| Safety current |
0.37 Ah |
| Rated voltage |
12 V |
| Rated current |
0.26 A |
| Pump power consumption |
3.96 W |
| Pump voltage |
12 V |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
4.72 x 4.72 x 0.984" (120 x 120 x 25 mm) |
| Radiator width |
4.72" (12 cm) |
| Radiator depth |
10.9" (27.7 cm) |
| Radiator height |
1.07" (2.72 cm) |
| Pump width |
2.99" (7.6 cm) |
| Pump depth |
3.19" (8.1 cm) |
| Pump height |
1.85" (4.7 cm) |
| Indication |
|---|
| Illumination colour |
Multi |
| Other features |
|---|
| Safety current |
0.37 Ah |
| Pump connector |
3-pin |
