650W, 50~60Hz, Active PFC, 140mm x 150mm x 86mm
Key Features
- Semi-Modular
- 80 PLUS Bronze
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OVP, OCP, SCP, OPP, OTP
Description

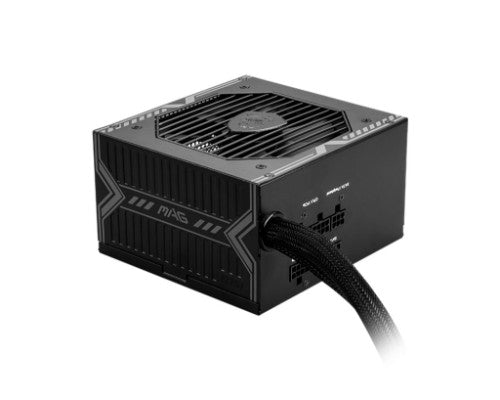

The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
80 PLUS BRONZE CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
80 PLUS BRONZE CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
PROTECTION DESIGNProtection is designed to protect the unit mechanisms and provides comprehensive protection.
DC-to-DC + ACTIVE PFCThe utilization of DC-DC circuit design alongside Active PFC technology synergistically enhances power supply stability and efficiency, thereby providing more reliable power delivery while also reducing energy wastage.

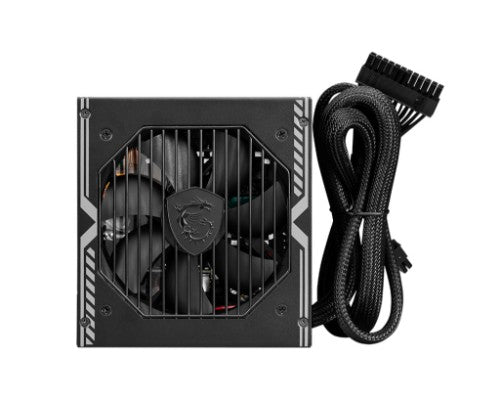

120mm LOW NOISE FANThe fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Performance |
|---|

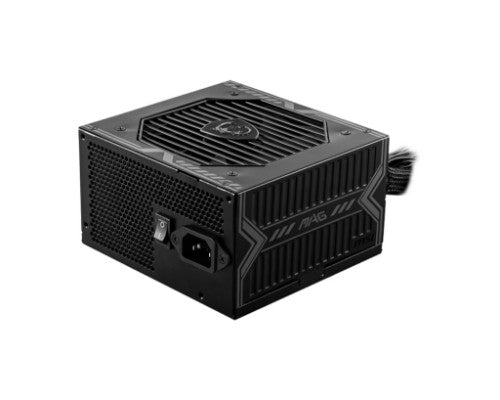

| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Bronze |
| Purpose |
PC |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Total power |
650 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
110 W |
| Combined power (+12V) |
648 W |
| Combined power (+5V) |
110 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
54 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
20 A |
| Power protection features |
Over current, Over power, Over voltage, Short circuit |
| Efficiency |
85% |
| Ports & interfaces |
|---|
| Motherboard power cable length |
23.6" (60 cm) |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| EPS power connector (8-pin) |
No |
| PCI Express power connectors (6+2 pin) |
2 |
| CPU power connector (4+4 pin) |
Yes |
| Floppy disk drive connector |
No |
| ATX Power connector (24-pin) |
No |
| ATX power connector (20+4 pin) |
Yes |
| Cabling type |
Non-Modular |
| EPS power connector (4+4 pin) |
Yes |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
