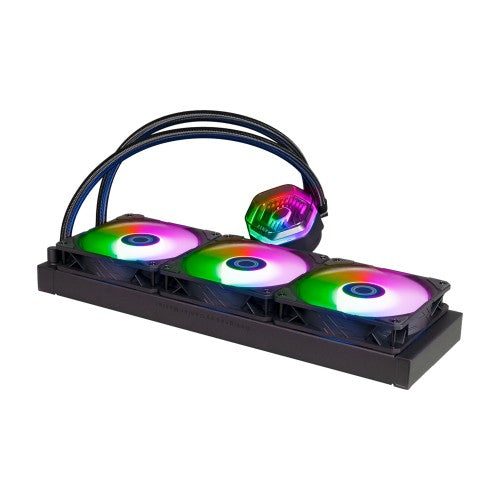

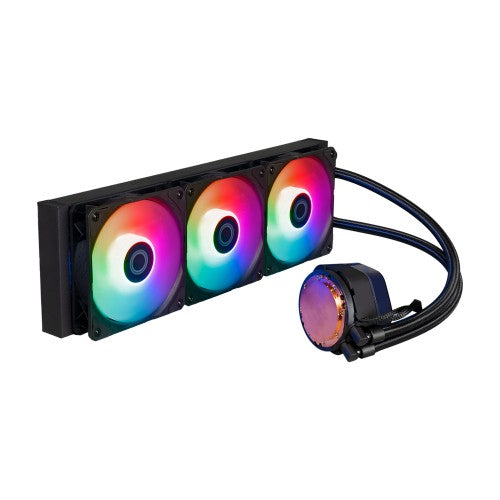

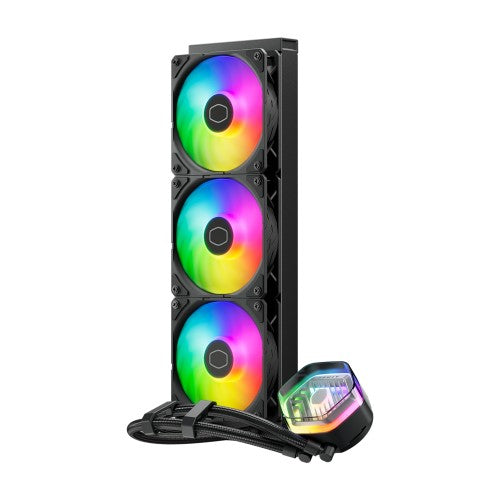

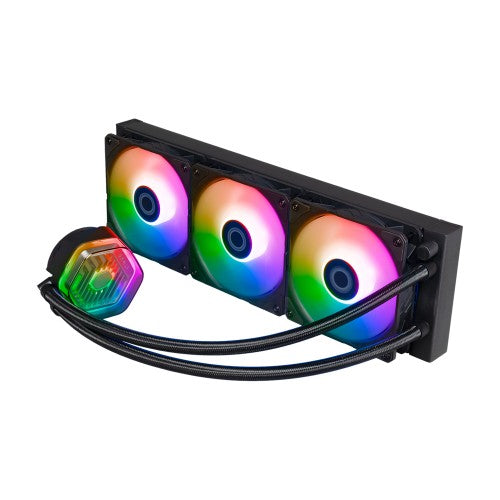

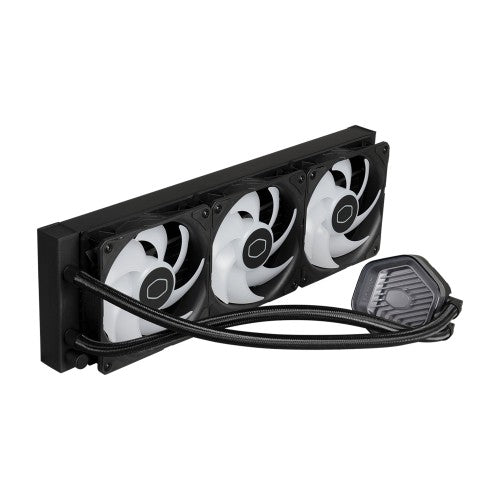

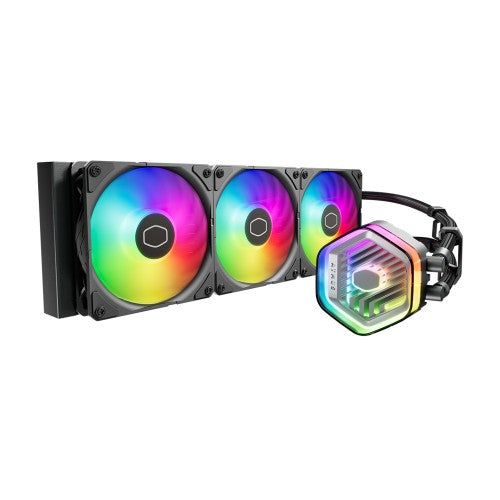

Cooler Master MasterLiquid 360 ATMOS Processor Liquid cooling kit 4.72" (12 cm) Black

3 x 120, 690-2500 RPM, 70.7 CFM, 3.61 mmH₂O, 4-Pin (PWM), 1.79 kg

Key Features

• Exceptional silence
• Optimized user experience
• Fully customizable
• Eco-friendly construction
• Refined dual chamber design

Description

360 Degrees of Cool

360 Degrees of Cool
The next generation AIO liquid cooling is here with the MasterLiquid 360 Atmos. The Atmos is our forward-thinking, innovative take on what an AIO cooler can and should be. Exceptionally silent performance provided by our SickleFlow Edge fans. An optimized user experience from unboxing to the MasterCTRL software. A pump top cover fully customizable with your own 3D-printed creations. Eco-friendly construction implemented throughout. Our signature dual chamber pump design, refined. The Atmos represents the best of the best in modern AIO liquid cooling, a full 360 degrees of cool.

Refined dual chamber design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

IMPROVED QUALITY
Fully automated production and assembly of the pump with fully recorded production history.

Fully customizable
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides unprecented creative freedom.

Eco-friendly construction
The pump top cover has been constructed from recycled plastic materials, while 35% of the cooler's metal materials are recyclable. Along with sustainable packaging materials and a 30% reduction in total packaging size, the Atmos is an eco-pioneer.

Latest Sickleflow Edge 120 fans
Pre-installed SickleFlow Edge 120mm fans further improve cooling performance and simplify user installation.

Optimized user experience
With features such as our streamlined MasterCTRL software and modernized packaging techniques, the Atmos is bringing a overhauled, and smoother, user experience.

FULLY CUSTOMIZABLE
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides uprecedented creative freedom.

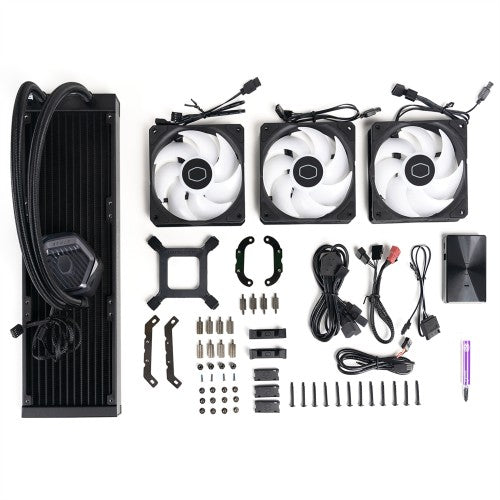

Tube clips included
Tube clips are included to improve and strengthen your cooler setup.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	690 RPM
Rotational speed (max)	2500 RPM
Noise level (high speed)	27.2 dB
Type	Liquid cooling kit
Fan diameter	4.72" (12 cm)
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	70.7 cfm
Maximum air pressure	3.61 mmH2O
Number of fans	3 fan(s)
Pump connector	4-pin
Pump noise level	12 dB
Pump's mean time to failure (MTTF)	210000 h
Fan's mean time to failure (MTTF)	160000 h
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Noise level (high speed)	27.2 dB
Type	Liquid cooling kit
Fan diameter	4.72" (12 cm)
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	70.7 cfm
Maximum air pressure	3.61 mmH2O
Number of fans	3 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	4-pin
Power
Safety current	0.3 Ah
Rated voltage	12 V
Rated current	0.2 A
Pump power consumption	3.84 W
Pump voltage	12 V
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	4.72 x 4.72 x 0.984" (120 x 120 x 25 mm)
Package depth	16.1" (410 mm)
Package width	8.31" (211 mm)
Package height	5.35" (136 mm)
Package weight	7.23 lbs (3.28 kg)
Weight	3.95 lbs (1.79 kg)
Radiator width	4.69" (11.9 cm)
Radiator depth	15.5" (39.4 cm)
Radiator height	1.07" (2.72 cm)
Pump width	3.19" (8.1 cm)
Pump depth	3.34" (8.49 cm)
Pump height	2.09" (5.32 cm)
Packaging data
Package depth	16.1" (410 mm)
Package width	8.31" (211 mm)
Package height	5.35" (136 mm)
Package weight	7.23 lbs (3.28 kg)
Indication
Illumination colour	Multi
Other features
Safety current	0.3 Ah
Pump connector	4-pin
