Mini ITX/Micro ATX, 2 x 2.5"/3.5", 2 x2.5", 2 x USB 3.2 Gen 1, 2 x 3.5 mm, 2 x 120mm, White
Key Features
- Polygonal Mesh 3D Contour Front Panel
- Removable Top Panel
- Tempered Glass Side Panel
- Dual Sickleflow 120 ARGB Fans
- ARGB/PWM Hub
- Adaptable Drive Cage
- Up to 280mm Radiator Support
Description
Postmodern ElegancePostmodern EleganceTD300 Mesh brings together modern presentation and performance with its three dimensional artistic mesh front panel. The polygonal diamond-cut facade emphasizes the illumination of two included SickleFlow PWM ARGB fans, cast various glowing effects, shifting based on the viewing angle.
Cooler Master’s FineMesh technology simultaneously provides high airflow, dust filtration, and strengthened structure for maximum performance and effortless cooling. With the exclusive removable top panel, adaptable drive cage, and ample cooling support, TD300mesh provides a canvas of unlimited possibilities.

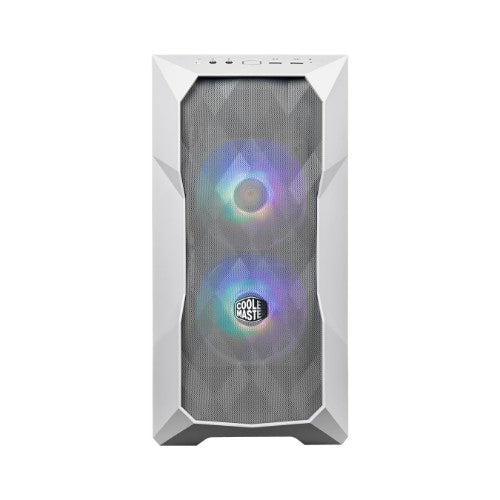

Polygonal MeshCrafted with Cooler Master’s FineMesh technology, the polygonal mesh features a three-dimensional contour, capable of simultaneously providing high airflow and excellent dust filtration.
Sickleflow PWM ARGB Fans IncludedPre-installed with two highly acclaimed 120mm ARGB Sickleflow fans, managed by the included Hub to easily customize a comprehensive ARGB lighting system and minimize ARGB port usage on the motherboard.
ARGB/PWM HubThe included HUB features 5 ARGB and 4 PWM ports and facilitates cable management in the system, allowing you to conveniently control fans with a single connector for power and PWM signal and another for ARGB signal.

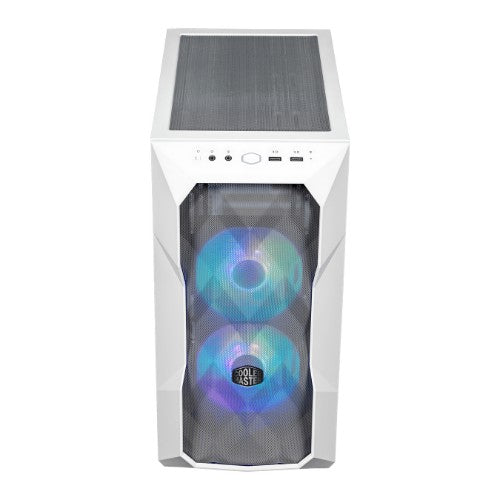

Removable Top PanelThe top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

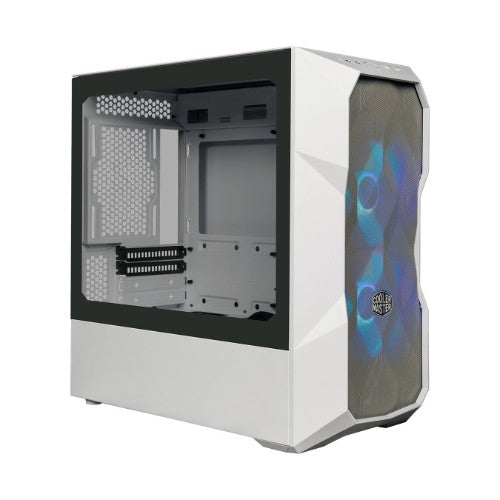

Tempered Glass Side PanelHardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Versatile Cooling OptionsSupport for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Room For UpgradesSupport for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
Adaptable Drive CageThe drive cage can be shifted towards the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
Specifications
| Design |
|---|
| Volume |
38.24 L |
| Anti-dust filter |
Yes |
| Material |
Mesh, Plastic, Steel |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Side window |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
White |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
6.54" (16.6 cm) |
| Maximum graphics card length |
13.5" (34.4 cm) |
| Maximum PSU length |
12.8" (32.5 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Product colour |
White |
| Number of expansion slots |
4 |
| Maximum CPU cooler height |
6.54" (16.6 cm) |
| Maximum graphics card length |
13.5" (34.4 cm) |
| Maximum PSU length |
12.8" (32.5 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Mesh, Plastic, Steel |
| Indication |
|---|
| Illumination colour |
Multi |
| Illumination |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator sizes supported |
120,240,140,280 mm |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,240,140,280 mm |
| Front fans installed |
2x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Storage |
|---|
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Volume |
38.24 L |
| Width |
8.27" (210 mm) |
| Depth |
14.4" (366.5 mm) |
| Height |
8.27" (210 mm) |
| Weight |
12.9 lbs (5.85 kg) |
| Packaging data |
|---|
| Package width |
11" (280 mm) |
| Package height |
19.4" (493 mm) |
| Package depth |
19.4" (493 mm) |
| Package weight |
15.7 lbs (7.1 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Volume |
38.24 L |
| Harmonized System (HS) code |
84733080 |
