StarTech.com 7-Slot Unmanaged Media Converter Chassis, 10in Rackmount for MCM Media Converter Series, Active Cooling, TAA
Key Features
-
High-Density, Scalable Design: Integrate up to 7 media converters in one compact 10in rack-mount chassis for simplifying network organization and expanding connectivity in enterprise and data center environments; For use with MCM Media Converter Series
-
Centralize Power Distribution: Single power supply runs all seven converters, reducing plug clutter and simplifying rack setup; Hot-swappable converter bays enable tool-free changes without downtime, streamlining maintenance and accelerating edge changes
-
Independently Powered for No-Downtime Swaps: Independently powered converter bays allow easy module replacement without downtime, supported by electrical isolation, over-voltage protection, and full FCC, CE, and UL compliance for reliability
-
Durable, Smart-Cooled Design: A rugged all-metal chassis with dual cooling fans, front-panel LED monitoring, and wide operating temperature tolerance provides stable, long-term performance in demanding environments
-
The IT Pro's Choice: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support
Description
Add a powered 7-slot rack that organizes edge converters, cuts clutter, and supports optional power redundancy for uptime.
The 7-Slot Media Converter Chassis delivers high-density, centralized management for up to seven media converters in a compact 10-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.
Centralized, Scalable Integration
Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.
Reliable Power and Protection

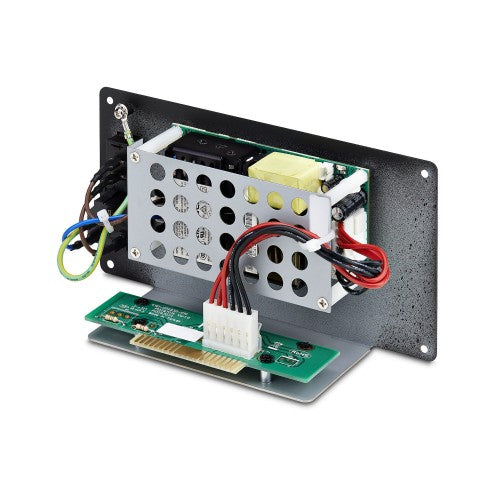

Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.
Durable, Intelligent Design
This rugged metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.
Specifications
| Technical details |
|---|
| Compatible products |
MCM Series |
| Rack mounting |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Number of slots |
7 |
| Material |
Metal |
| LED indicators |
Fan, Power |
| Product colour |
Black |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Output voltage |
48 V |
| Output current |
4.2 A |
| Included power plug types |
EU, NA, UK |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
16.4" (417 mm) |
| Height |
3.48" (88.5 mm) |
| Depth |
5.51" (140 mm) |
| Packaging data |
|---|
| Package width |
8.5" (216 mm) |
| Package depth |
12.4" (316 mm) |
| Package height |
6.02" (153 mm) |
| Manual |
Yes |
| Cables included |
AC |
| Package weight |
5.73 lbs (2.6 kg) |
| Logistics data |
|---|
| Master (outer) case width |
15.9" (405 mm) |
| Master (outer) case length |
18.3" (465 mm) |
| Master (outer) case height |
14.2" (360 mm) |
| Products per master (outer) case |
5 pc(s) |
