OWC Mercury Elite Pro Quad HDD enclosure Silver 2.5/3.5"

4 x 3.5"/2.5" SATA 6Gb/s, w/o HDD, USB 3.1 Gen 2 (Type-C), Raid Edition

Key Features

• Up to 48TB
• Up to 947MB/s
• RAID Ready or RAID Editions

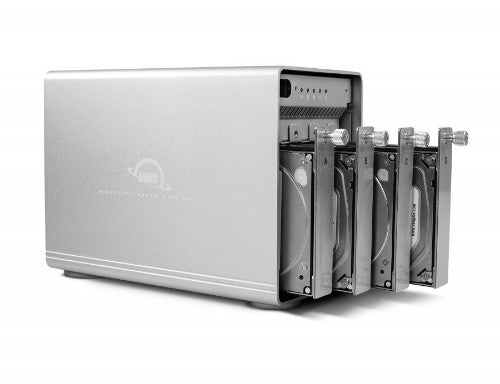

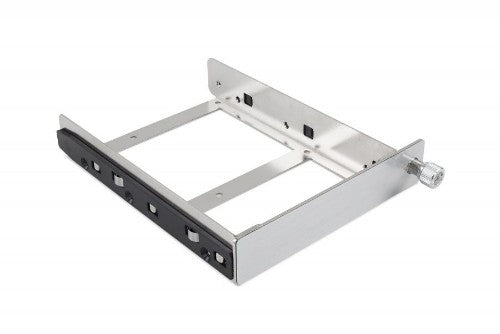

• Four universal drive bays for 2.5" and 3.5" drives
• Up to 3 Year OWC Limited Warranty

Description

The Flexibility of USB-C

The Mercury Elite Pro Quad's powerful USB-C interface delivers 10Gb/s USB 3.1 Gen 2 bandwidth and works with any USB-C or Thunderbolt 3 equipped Mac or Windows PC. Simply connect the Mercury Elite Pro Quad via the included USB-C cable to experience next-level performance. If your computer doesn’t feature USB-C connectivity, the included USB-C to USB-A cable brings backward compatibility for machines with legacy USB ports.

Capacity without Compromise

Compatible with 2.5" and 3.5" drives, the Mercury Elite Pro Quad’s four universal drive bays let users pack up to a massive 48TB of storage. With this level of capacity and drive flexibility, you will not have to compromise when it comes to your storage.

Speed, Storage, and Security with SoftRAID

The Mercury Elite Pro Quad features advanced RAID capabilities, meaning you can choose the best option for your workflow. Whether you want massive capacity through a single large array, need maximum performance up to 947MB/s, or redundancy to keep your data secure, the Mercury Elite Pro Quad gives you the power of choice with OWC’s proprietary SoftRAID engine or Windows-supported RAID modes. The Mercury Elite Pro Quad is also available in a RAID ready model so you can install the RAID software of your choice.

Designed for Professionals

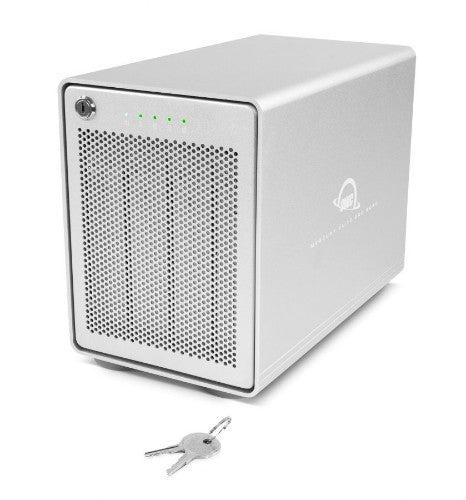

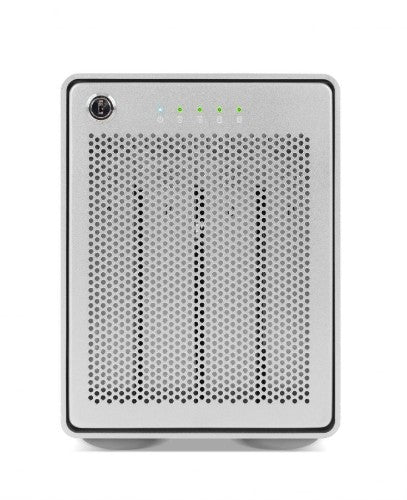

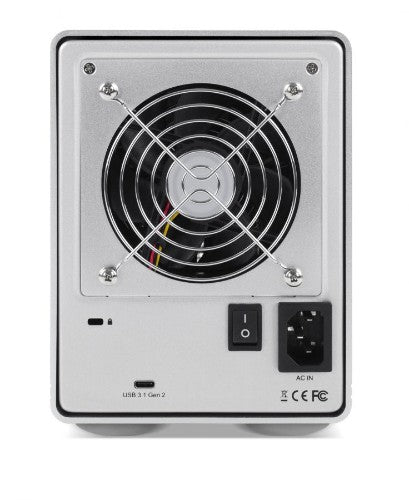

Every detail was considered when designing the Mercury Elite Pro Quad. Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet, the Mercury Elite Pro Quad runs cool and quietly, making it ideal for noise-sensitive environments. Front-facing LEDs provide an instant drive-activity snapshot, while the front panel access lock keeps your drives safe. You can even secure the entire drive with the rear-mounted Kensington compatible lock slot. On top of that, drive-equipped models undergo OWC's multi-hour drive "burn-in" performance certification procedure to ensure that your drive arrives operating properly and ready to perform.

Reliability and Support You Can Count On

Like all OWC drives, the Mercury Elite Pro Quad is built to the highest standards of reliability and performance. Because 100% reliability is always the goal, Mercury Elite Pro Quad is rigorously quality tested, and backed by an OWC 3 year limited warranty and 24/7 customer support.

Specifications

Storage
Number of storage drives supported	4
Storage drive size	2.5/3.5"
Number of storage drives installed	0
Supported storage drive interfaces	Serial ATA III
RAID levels	0, 1, 1+0, 4, 5, JBOD
Card reader integrated	No
Ports & interfaces
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connectivity	Yes
USB connector type	USB Type-C
USB ports quantity	1
Technical details
RAID levels	0, 1, 1+0, 4, 5, JBOD
Rack mounting	No
LED indicators	Yes
Product colour	Silver
USB version	3.2 Gen 2 (3.1 Gen 2)
Design
Product type	HDD enclosure
Built-in display	No
Key lock	Yes
On/off switch	Yes
Rack mounting	No
LED indicators	Yes
Product colour	Silver
Power
Power source type	AC
AC adapter output voltage	12 V
AC adapter output current	10 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Mac compatibility	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	8.6 lbs (3.9 kg)
Width	5.31" (135 mm)
Depth	9.45" (240 mm)
Height	7.28" (185 mm)
Packaging content
User guide	Yes
Number of keys included	2 pc(s)
Cables included	AC, USB, USB Type-C
