OWC ThunderBay 8 disk array Tower Black

Thunderbolt 3, DisplayPort, 40 Gb/s, SoftRAID, Cooling Fan, 3.5"/2.5" SATA

Key Features

• Pro-grade transfer speeds: up to 2586MB/s real-world tested speed with Thunderbolt 3 port
• Eight hot-swappable universal drive bays: mix or match 2.5-inch (no adapter needed) and 3.5-inch HDDs and SSDs
• Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
• See your work: DisplayPort 1.2 for connecting up to a 4K display
• Daisy-chain expansion: second Thunderbolt 3 port for adding up to five additional Thunderbolt devices
• Quick drive swaps: thumb screw release trays
• Plug-and-play ready: no drivers needed and includes Thunderbolt 3 cable
• Thunderbolt certified for Mac and Windows
• OWC ClingOn ready: cable stabilizer prevents work session interruption and possible data loss

Description

Like a Data Center on Your Desk
This latest addition to the popular ThunderBay line, introduced in 2014, now offers eight drive bays for either 2.5-inch or 3.5-inch HDDs and/or SSDs in any combination. The OWC ThunderBay 8 is like a high-performance personal data center that offers multiple configuration options to suit ever-expanding storage needs. Photo, film and video editors can take advantage of the largest capacity desktop RAID storage solution we’ve ever offered to handle the voracious drive space appetite of RAW, 4K, large format, and VR workflows.

Conquer High Bandwidth Demands
With Thunderbolt 3 offering real-world transfer rates up to 2586MB/s and the ability to RAID together eight SSDs or HDDs, ThunderBay 8’s rugged, field-tested aluminum design has the under-the-hood horsepower needed to conquer high-bandwidth requirements. You can even configure multiple ThunderBay 8 solutions connected via multiple Thunderbolt 3 ports on your Mac or PC to achieve exponential speed increases. Whatever your set up, when you’re racing against a deadline, ThunderBay 8 puts you in the winner’s circle.

Monstrous Capacity
Need even more capacity? Daisy-chain up to six of these capacity behemoths together for up to a staggering 768TB. Now you can capture vast amounts of footage from multiple cameras or store vast libraries of production work with a unified and reliable storage solution.

Includes SoftRAID: Easy and Complete Drive Management
Now you can quickly access and robustly protect your data with SoftRAID for Mac. SoftRAID makes it a breeze to create RAID volumes by helping you through the entire process. With multiple RAID options, you decide what you’re using your RAID volume for and how much space to allocate to it. It's that simple to create your preference of speed and/or redundancy for your data volume.

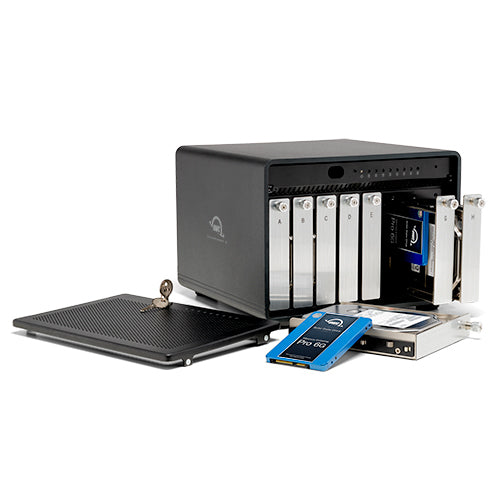

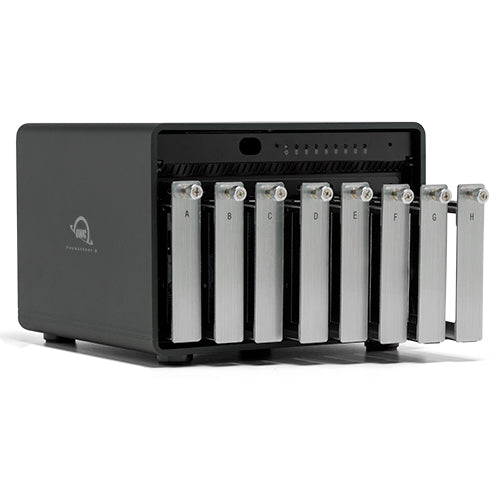

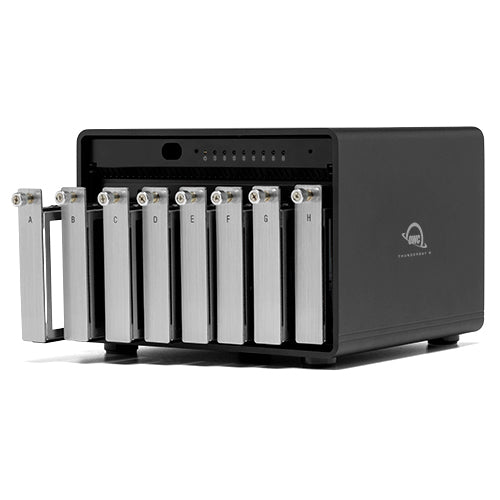

Swap and Identify Drives Easily
ThunderBay 8 makes it easy to keep large data sets organized for every project thanks to its eight hot swappable drive bays. Whether you’re using 2.5-inch or 3.5-inch HDDs and/or SSDs, the drives mount in alphabetically labeled trays for easy identification and are secured by a thumb screw. If you want the freedom to access an extensive collection of drives quickly, you can create a drive “bullpen” with additional OWC drive trays (sold separately).

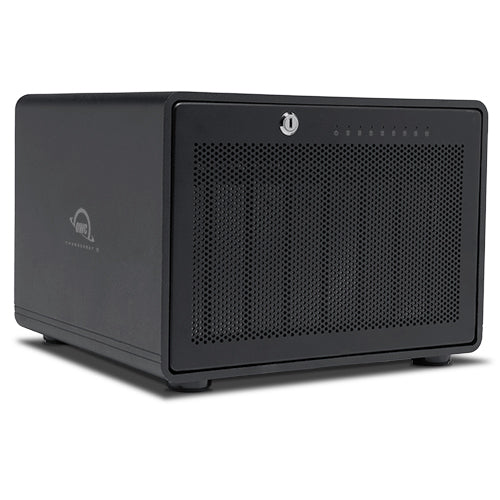

As Secure as a Bank Vault
With a locking front panel and security slot on the backside, the ThunderBay 8 is like an ironclad vault l for your data. Plus, with front panel LEDs indicating the status of each drive, you’ll know at a glance if your data is secure.

See More, Do More
ThunderBay 8 isn’t just about high-capacity, high-performance storage. It’s about giving you all the options you need to work at your best. Attach a 5K Thunderbolt display or two 4K displays. Place a USB 3.1 device at the end of a daisy chain. With an extra Thunderbolt 3 port, you have the flexibility to add more devices to your workflow and master any task at hand.

Secure Your Workflow with OWC ClingOn
Greatly reduce — if not eliminate — cable strain and accidental disconnects with the OWC ClingOn. These custom cable stabilizers (sold separately) screw into the ThunderBay 8's housing to secure your Thunderbolt 3 and USB-C connections and prevent work session interruption and possible data loss.

Specifications

Storage
Hot-swap drive bays	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Storage drive size	2.5/3.5"
Storage drives installed	Yes
RAID levels	0, 0+1, 1, 4, 5, JBOD
Data transfer rate	40 Gbit/s
Ports & interfaces
USB connectivity	No
Thunderbolt technology	Yes
Thunderbolt ports quantity	2
Thunderbolt version	3
DisplayPorts quantity	1
DisplayPort version	1.2
Technical details
Device class	Home & Home Office
Number of fans	1 fan(s)
Product colour	Black
Cable lock slot	Yes
LED indicators	Status
Chassis type	Tower
Certification	CE FCC VCCI RCM BSMI
Data transfer rate	40 Gbit/s
Design
Key lock	Yes
Number of fans	1 fan(s)
Product colour	Black
Cable lock slot	Yes
LED indicators	Status
Chassis type	Tower
Certification	CE FCC VCCI RCM BSMI
Cooling	Yes
Fan diameter	3.62" (9.2 cm)
Performance
Device class	Home & Home Office
Hard drive
RAID levels	0, 0+1, 1, 4, 5, JBOD
Power
AC input voltage	230 V
Power consumption (typical)	300 W
DC output voltage	12 V
Power cable current	1.8 A
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 10 x64
Server operating systems supported	Windows Server 2016
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Weight & dimensions
Width	10.2" (260 mm)
Depth	9.45" (240 mm)
Weight	16.1 lbs (7.3 kg)
Height	7.09" (180 mm)
Packaging data
Cables included	AC, Thunderbolt
Packaging content
Drive bay locking	Yes
Cables included	AC, Thunderbolt
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating altitude	-12000 - 120000" (-304.8 - 3048 m)
Non-operating altitude	-12000 - 480000" (-304.8 - 12192 m)
