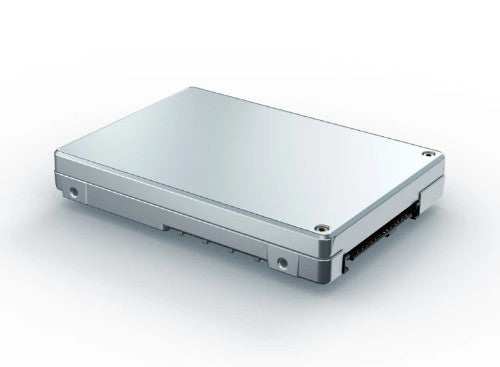

Solidigm D7-P5520 15.4 TB U.2 PCI Express 4.0 NVMe TLC 3D NAND

15.36TB, 2.5" PCIe 4.0 x4, 3D4, TLC

Description

The Highest Performance for the Most Demanding Workloads
Our highest-performing SSD Series includes the Solidigm D7-P5520: one of the industry’s most advanced PCIe products, performance-tuned for the real world. Designed with the highest standard endurance and tested with zero tolerance for data errors, it delivers consistently durable performance.

Accelerate and Consolidate Mixed and Mainstream Random Workloads

For highly mixed and mainstream workload environments requiring low latency for improved user experience, the D7-P5520 delivers consistent, exceptional performance where it counts. For solutions such as AI/ML, database, and cloud applications, it provides substantial random and sequential read/writes, high random read IOPS, and sequential write throughput.

The Industry’s Broadest PCIe 4.0 Portfolio

Form factor and capacity expansion enable server modernization opportunities spanning a broad range of 1U and 2U configurations for compute and storage servers. The Solidigm D7-P5520 is available in U.2, E1.L, E1.S 9.5 mm and E1.S 15 mm form factors.

Deploy With Confidence

Solidigm D7 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with PLI testing that simulates real-world conditions. Consistency is key, and this SSD provides up to 90% IOPS consistency and <0.3% IOPS variability over the life of the drive.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	15.4 TB
Memory type	TLC 3D NAND
Data transmission
Read speed	7100 MB/s
Write speed	3700 MB/s
Random write (4KB)	200000 IOPS
Random read (4KB)	1000000 IOPS
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	Server
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	15.4 TB
Read speed	7100 MB/s
Write speed	3700 MB/s
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	200000 IOPS
Random read (4KB)	1000000 IOPS
Mean time between failures (MTBF)	2000000 h
SSD form factor	U.2
Random latency - read (up to)	75 µs
Random latency - write (up to)	15 µs
Sequential latency - read (up to)	10 µs
Sequential latency - write (up to)	13 µs
Power
Power consumption (idle)	5 W
Performance
Interface	PCI Express 4.0
Component for	Server
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	15.4 TB
Read speed	7100 MB/s
Write speed	3700 MB/s
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	200000 IOPS
Random read (4KB)	1000000 IOPS
Mean time between failures (MTBF)	2000000 h
Design
Component for	Server
SSD form factor	U.2
Weight & dimensions
Weight	5.82 oz (165 g)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Power consumption (active)	13 W
SSD form factor	U.2
Other features
Power consumption (active)	13 W
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
