1880 – 1900 MHz /1920 – 1930 MHz, CAT-iq2.0, 1 x RJ-45, PoE, 3.612 kg
Key Features
- Up to 20 simultaneous calls
- Up to 10 DECT cordless handsets
- Up to 10 SIP accounts
- Support Opus audio codec
- Noise Reduction System
- TLS and SRTP security encryption
- No Perception Upgrade
Description

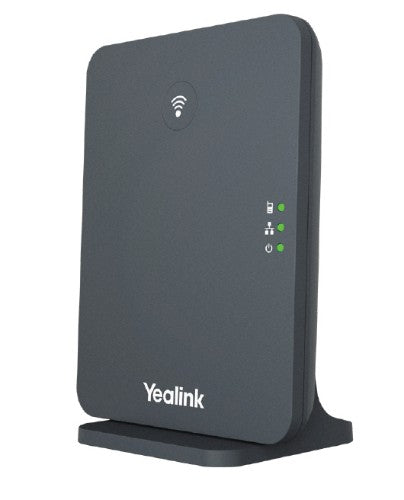

High-performance DECT IP base station for small and medium-sized businessesThe Yealink W70B is the DECT IP base station for small and medium-sized businesses. Paring with up to a total of 10 Yealink W73H/W56H/W59R/CP930W/color screen DDPhone (T54W+DD10K) DECT handsets, W70B allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. A powerful chip ensuring a better and higher performance, this DECT IP base station not only supports up to 10 VoIP accounts and 20 simultaneous calls, but also speeds up its startup and signal connection, provides no perception upgrade, slashes its upgrade downtime as well.
Designed in modern and elegant style, this compact DECT IP base station possesses a wire-hidden design, presenting a concise and tidy desk to you even being mounted to the wall. By supporting Opus codec, Yealink W70B consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, comparing with other wideband or narrowband audio
The Yealink W70B DECT IP base station supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses
Specifications
| Performance |
|---|
| Number of handsets supported (max) |
10 |
| CAT-iq |
2.0 |
| Number of VoIP accounts |
10 |
| Security algorithms |
AES, HTTPS, SHA-256, SHA-384, SHA-512, TLS |
| Voice codecs |
AGC, AJB, AMR-WB, CNG, G.722, G.726, G.729, G.729A, PLC, VAD, iLBC |
| Maximum range |
11811" (300 m) |
| Management protocols |
SNTP/NTP, UDP/TCP/TLS |
| DECT standards |
CAT-iq2.0 |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Hearing aid compatibility |
Yes |
| XML browser |
Yes |
| Music on hold function |
Yes |
| Auto-provision |
Yes |
| Call management |
|---|
| Conference call |
Yes |
| Number of parallel conferences |
3 |
| Anonymous call |
Yes |
| Anonymous call rejection |
Yes |
| Call waiting |
Yes |
| Call forwarding |
Yes |
| Call transfer |
Yes |
| Call hold |
Yes |
| Phonebook capacity (per handset) |
1000 entries |
| Number of simultaneous calls (max) |
20 |
| Caller ID |
Yes |
| Remote phonebook |
Yes |
| Switching between calls |
Yes |
| Mute function |
Yes |
| Speed dialling |
Yes |
| Integrated voicemail |
Yes |
| Redialing |
Yes |
| Message Waiting Indication (MWI) function |
Yes |
| Phonebook search/import/export function |
Yes |
| Reset function |
Yes |
| Call history |
Yes |
| Shared Call Appearance (SCA) |
Yes |
| Emergency call |
Yes |
| System log export |
Yes |
| Antenna |
|---|
| Frequency range (US) |
1920 - 1930 MHz |
| Frequency range (EU) |
1880 - 1900 MHz |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rate supported (max) |
100 Mbit/s |
| Design |
|---|
| Product colour |
Gray |
| Wall mountable |
Yes |
| Certification |
CE, FCC, REACH |
| Full duplex |
Yes |
| LED indicators |
Yes |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
0.6 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Package width |
6.85" (174 mm) |
| Package depth |
7.09" (180 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
9.15 lbs (4.15 kg) |
| Weight |
7.96 lbs (3.61 kg) |
| Dimensions (WxDxH) |
5.12 x 3.94 x 0.988" (130 x 100 x 25.1 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Power adapter included |
Yes |
