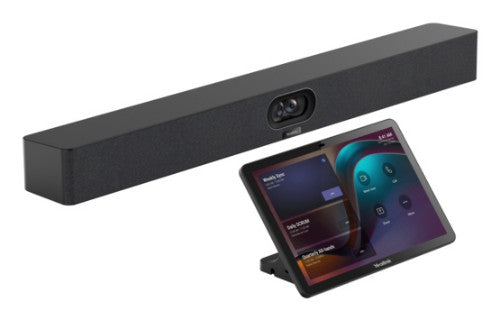

MeetingBar A40-031, all-in-one video bar, Teams/Zoom certified, video conferencing kit (video bar, touch console CTP25)
Key Features
- Simple deployment: plug-and-play, One Cable Solution for console deployment and sharing
- Be seen clearly: Dual-eye camera system with 2x 48MP cam and 120° FOV, Fast and precise camera AI such as IntelliFocus, Video Fence
- Hear and be heard: 8 MEMS mic array, 2x stereo speakers,8m full duplex audio with AI-Enhanced Noise Cancellation and Reverberation Suppression
- Security ensured: support latest Android 13 and beyond, MDEP coming
- Standard PD power supply for PC
- Teams/Zoom certified, BYOD enabled
Description
MeetingBar A40 is a next-generation all-in-one video bar that leverages industry-leading AI to enhance video and audio experience in daily hybrid meetings. It offers easy deployment and use, making it ideal for premium small and medium-sized meeting rooms. The One Cable Solution maximizes simplicity in two ways. A single Cat5e cable from the bar provides power and network connectivity to the touch console, automatically synchronizing the Teams account. Additionally, a single USB-C cable on the desk enables 4K sharing, General Mode, and PD charging.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black |
| Signal-to-Noise Ratio (SNR) |
63 dB |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black |
| Signal-to-Noise Ratio (SNR) |
63 dB |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Video |
|---|
| HD type |
4K Ultra HD |
| Megapixel (approx.) |
48 MP |
| Digital zoom |
6x |
| Supported video modes |
1080p, 2160p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum frame rate |
60 fps |
| Aspect ratio |
16:9 |
| Total megapixels |
48 MP |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Frequency range |
80 - 18000 Hz |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Ports & interfaces |
|---|
| Line-out |
Yes |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Camera |
|---|
| Focus adjustment |
Auto |
| Aperture range (F-F) |
2.2 - 2.4 |
| Minimum illumination |
0.1 lx |
| Horizontal field of view |
110° |
| Megapixel (approx.) |
48 MP |
| Digital zoom |
6x |
| Camera shutter speed |
0.01 - 0.033 s |
| Number of camera presets |
9 |
| Vertical field of view |
54° |
| Diagonal field of view |
120° |
| Camera type |
Dual camera |
| Zoom capability |
Yes |
| Display |
|---|
| Display |
IPS |
| Display diagonal |
10.1" |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Touchscreen type |
Capacitive |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Display brightness |
3520 cd/m² |
| Anti-glare screen |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
-38 dB |
| Microphone frequency |
100 - 20000 Hz |
| Sound pressure level (max) |
130 dB |
| Number of microphone arrays |
8 |
| Logistics data |
|---|
| Country of origin |
China |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
25.6" (650 mm) |
| Depth |
2.44" (62 mm) |
| Height |
3.15" (80 mm) |
| Weight |
14.5 lbs (6.57 kg) |
| Package width |
7.8" (198 mm) |
| Package depth |
16" (406 mm) |
| Package height |
29.8" (758 mm) |
| Package weight |
16.3 lbs (7.38 kg) |
| Packaging data |
|---|
| Package width |
7.8" (198 mm) |
| Package depth |
16" (406 mm) |
| Package height |
29.8" (758 mm) |
| Package weight |
16.3 lbs (7.38 kg) |
| Packaging content |
|---|
| Quick start guide |
Yes |
