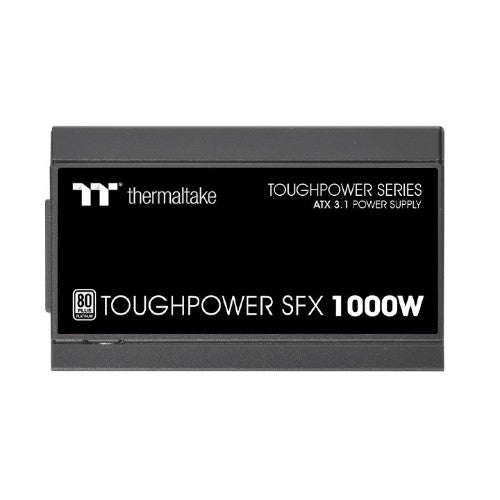

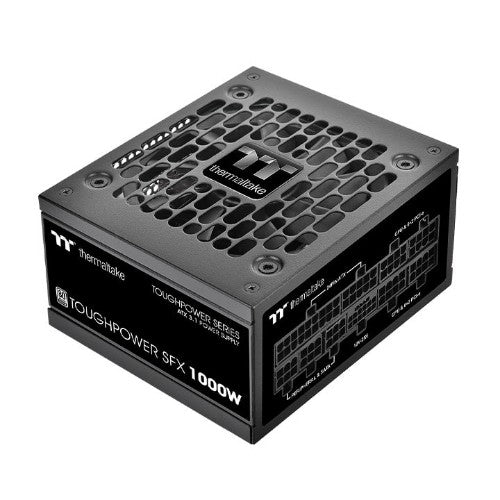

Thermaltake Toughpower SFX Platinum 1000W power supply unit 24-pin ATX CFX Black

1000 W, APFC, 24 Pin, 2x ATX 12V, 5x PCI-E, 8x SATA, 4x Peripheral, 90 mm FDB, 15-8A, 50/60Hz, 100-240V, 125 x 63.5 x 103.8 mm, Black

Description

Compact Power, Limitless Performance

The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.

No Matter the Case Size, We've Got You Covered

The dimensions of the Toughpower SFX Platinum measure 125mm(W) x 63.5mm(H) x 103.8mm(D).
It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.

Fully Compatible with ATX 3.1 Standards

Toughpower SFX Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.1 Ready

Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.

Note:
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
- Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.

Made to Comply with the Latest Graphics Cards

Ready to supply graphics cards according to their different ways of connections, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin slots for AMD graphics cards & some RTX 40 series graphics cards, it also comes with 1 x 12V-2x6 connector for RTX 40 series cards with a PCIe 12+4pin connector.

Be Smart, Stay Quiet

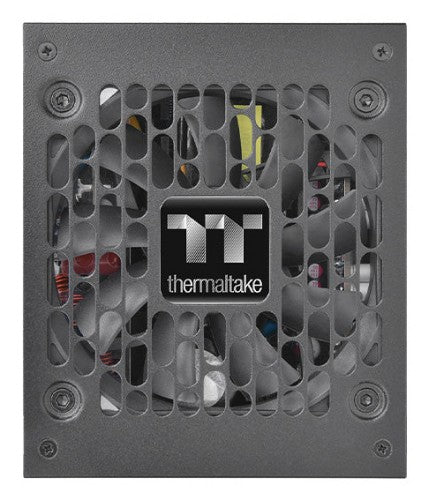

Equipped with a 90mm fluid bearing fan for superior airflow. Plus, the built-in Smart Zero Fan feature keeps it silent until the load hits 30%, reducing unwanted noise.

80 PLUS® Platinum Certified

80 PLUS Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saves energy through its high efficiency up to 92%, resulting in lower power loss and heat buildup inside the power supply.

17ms and up Hold Up Time

During a power interruption, your computer might shut down or reboot. We make sure that the SFX Platinum series will deliver at least 17ms at 80% workload, without system reboot or resetting.

More Stable than Ever

100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V
Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

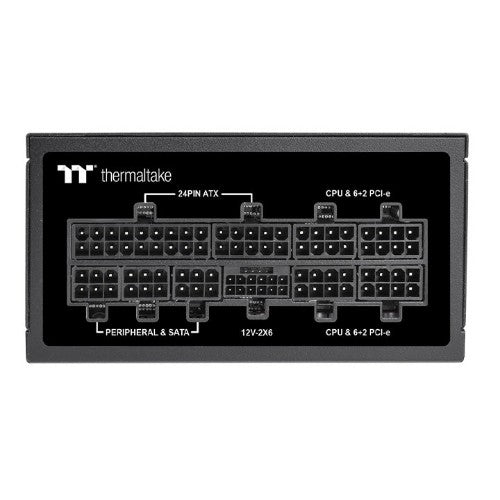

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Built-in Industrial Grade Protection

Built with industry grade protections to protect the hardware: OCP(Over Current Protection), OVP(Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Intel C6/C7 States Ready

Toughpower SFX Platinum series has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

Specifications

Cooling
Fan diameter	3.54" (9 cm)
Number of fans	1 fan(s)
Cooling type	Active
Performance

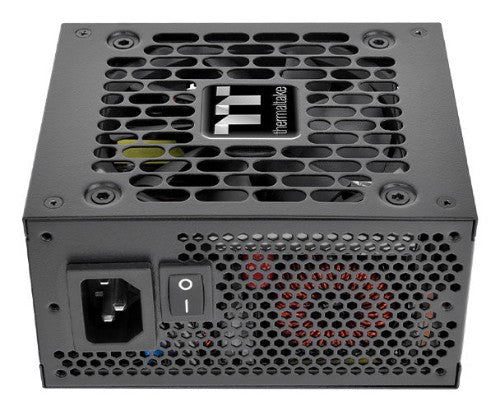

On/off switch	Yes
Power supply unit (PSU) form factor	CFX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Safety	CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Platinum
Safety	CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Product colour	Black
Fan diameter	3.54" (9 cm)
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1000 W
Power Good signal delay range	100 - 150 ms
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 - 8 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1000 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	18 A
Max output current (+12V)	83.3 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Hold time	17 ms
Efficiency	92%
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Floppy drive power connector	1
Floppy disk drive connector	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	1
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 95%
Safety regulation & standards
Safety	CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Weight & dimensions
Width	4.92" (125 mm)
Depth	4.09" (103.8 mm)
Height	2.5" (63.5 mm)
Packaging data

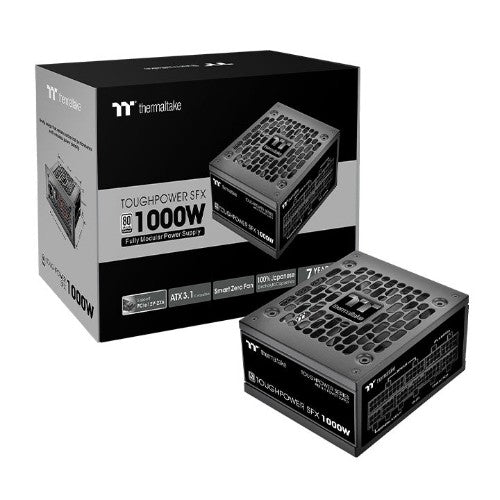

Package type	Box
Certificates
80 PLUS certification	80 PLUS Platinum
Safety	CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
