Mini Tower, Matcha Green, Steel/SPCC, USB 3.2 Gen 2 Type-C/2x USB 3.0/HD Audio
Description

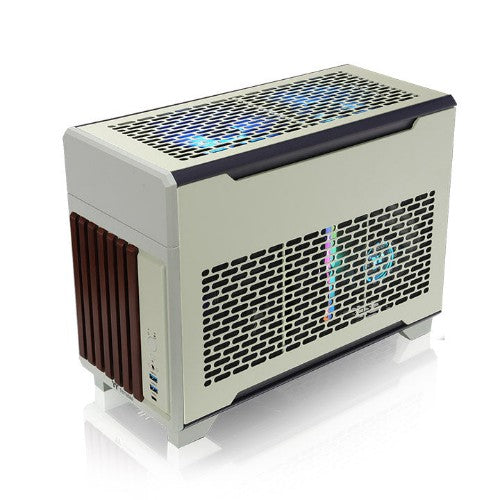

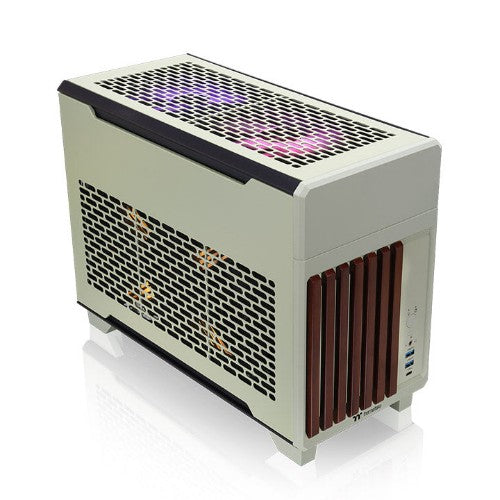

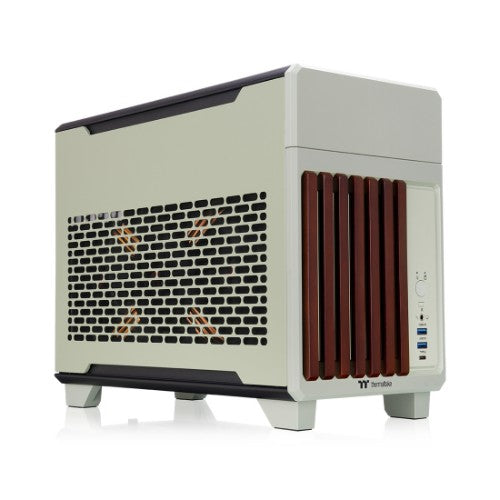

Size Down, Power UpThe TR100 WS Matcha Green Mini Tower Chassis is a compact, dual-chamber Mini-ITX case accented with stylish wood elements, designed for those who demand both performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
Compact DesignTR100 WS Matcha Green Mini Tower Chassis is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.
Superior GPU SupportThe TR100 WS Matcha Green Mini Tower Chassis supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system
Efficient Cooling SolutionsThe TR100 WS Matcha Green Mini Tower Chassis supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
Redefining Portable GamingMore than just a case, The TR100 WS Matcha Green is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!
TT Travel Trunk for TR100The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.

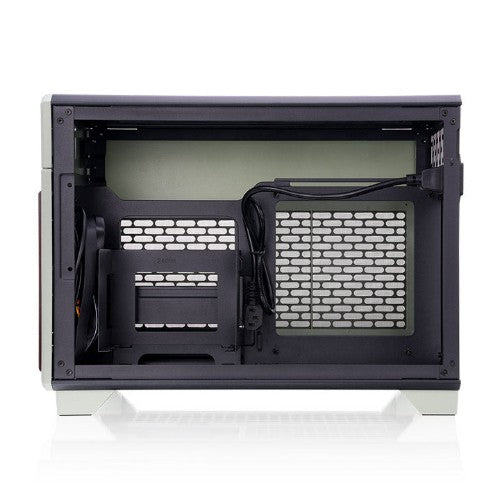

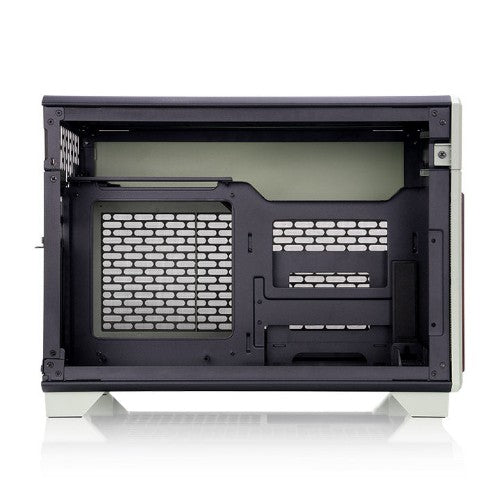

Easy Access with Removable PanelsThe TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.
SFX PSU SupportThe TR100 WS Matcha Green Mini Tower Chassis features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.
Visually Pleasing, Totally InteractiveMaximize your TR100’s visual effects by upgrading it with our LCD Screen Kit.

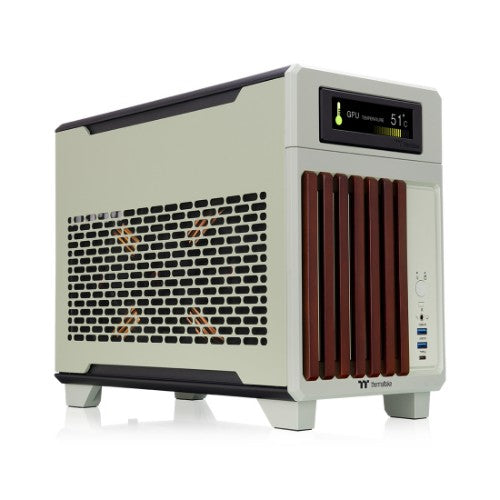

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.
Personalize Your LCD DisplayThrough the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

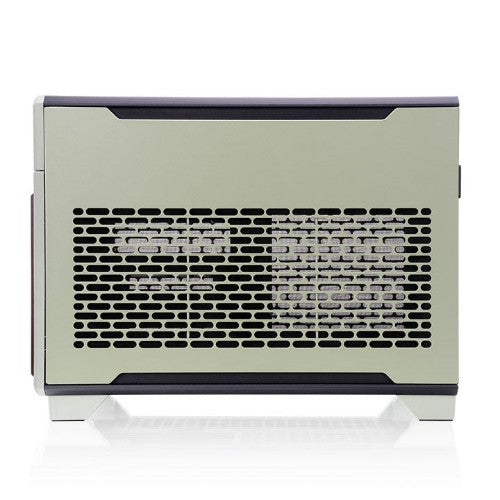

Air Intake and ExhaustDespite its compact size, The TR100 WS Matcha Green Mini Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
Perfect Dust ProtectionThere are filters at the top, front and side of the chassis to protect the system from dust.
Storage for Your StorageThe TR100 WS Matcha Green Mini Tower Chassis supports up to two 2.5" SSDs, one in each chamber.
Dismantlable Modular DesignNo more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
0 |
| Number of 2.5" bays |
2 |
| Supported motherboard form factors |
Mini-ITX |
| Reset button |
Yes |
| Product colour |
Green |
| Number of expansion slots |
3 |
| Maximum CPU cooler height |
2.68" (6.8 cm) |
| Maximum graphics card length |
14.2" (36 cm) |
| Maximum PSU length |
5.12" (13 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| Material |
|---|
| Material |
SPCC, Steel |
| Ergonomics |
|---|
| Reset button |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Anti-dust filter |
Yes |
| Material |
SPCC, Steel |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
0 |
| Number of 2.5" bays |
2 |
| Supported motherboard form factors |
Mini-ITX |
| Reset button |
Yes |
| Product colour |
Green |
| Number of expansion slots |
3 |
| Maximum CPU cooler height |
2.68" (6.8 cm) |
| Maximum graphics card length |
14.2" (36 cm) |
| Maximum PSU length |
5.12" (13 cm) |
| Type |
PC |
| Form factor |
Mini Tower |
| On/off button |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
SFX, SFX-L |
| Power supply included |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Side radiator sizes supported |
120,140,240,280 mm |
| Storage |
|---|
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
7.05" (179 mm) |
| Depth |
15.6" (396.5 mm) |
| Height |
11.6" (294.3 mm) |
