Intel Core Ultra 9 Processor 185H, 2 x SO-DIMM DDR5-5600 max. 96GB, M.2-2280M, Intel Arc graphics, M.2-2230E, 4 x 2.5G Ethernet LAN, 120W
Key Features
- Compact case with VESA mount
- Intel Core Ultra processor
- 4x 2.5G LAN, 4x UHD video
- 3x M.2 SSD slots PCIe & RAID
- 24/7 continuous operation
Description
The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core™ Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, offering up to 34 TOPS of total system performance to support complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.
Specifications

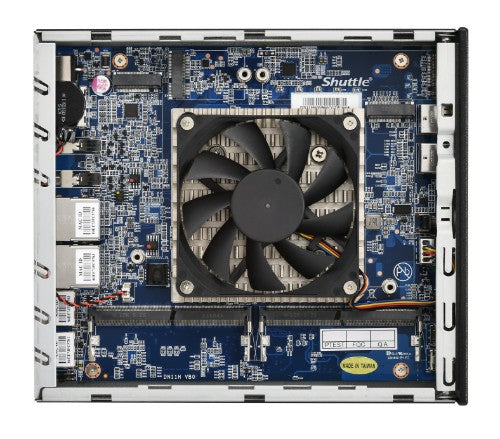

| Motherboard |
|---|
| Motherboard chipset |
Intel SoC |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
185H |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor family |
Intel Core Ultra 9 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor cache |
24 MB |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core base frequency |
2.3 GHz |
| Efficient-core base frequency |
1.8 GHz |
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
1000 MHz |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| ECC |
No |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600 MHz |
| Maximum internal memory |
96 GB |
| Non-ECC |
Yes |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
PCI Express |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Graphics |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Number of displays supported |
4 |
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel Arc Graphics |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC888S |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Intel I226-LM |

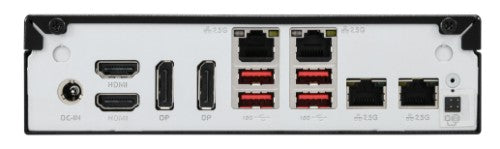

| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Metal |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
1.35L sized PC |
| Performance |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| BIOS type |
UEFI AMI |
| Number of displays supported |
4 |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel SoC |
| Audio chip |
Realtek ALC888S |
| Harmonized System (HS) code |
84733080 |
| Processor special features |
|---|
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
1000 MHz |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
UEFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Processor cores |
16 |
| Cooling type |
Active |
| Chassis type |
1.35L sized PC |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Packaging data |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Package weight |
5.42 lbs (2.46 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Features |
|---|
| Number of displays supported |
4 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.48" (190 mm) |
| Depth |
6.5" (165 mm) |
| Height |
1.69" (43 mm) |
| Package weight |
5.42 lbs (2.46 kg) |
| Weight |
2.71 lbs (1.23 kg) |
| Packaging content |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
1.35L sized PC |
